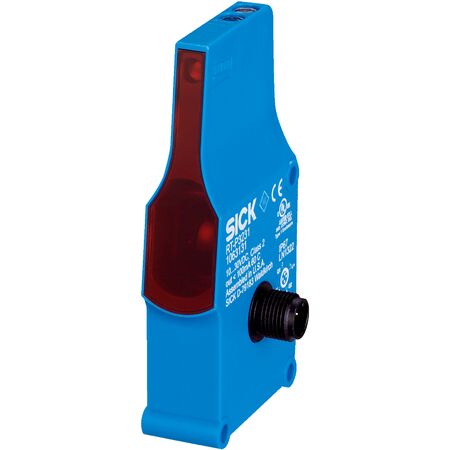

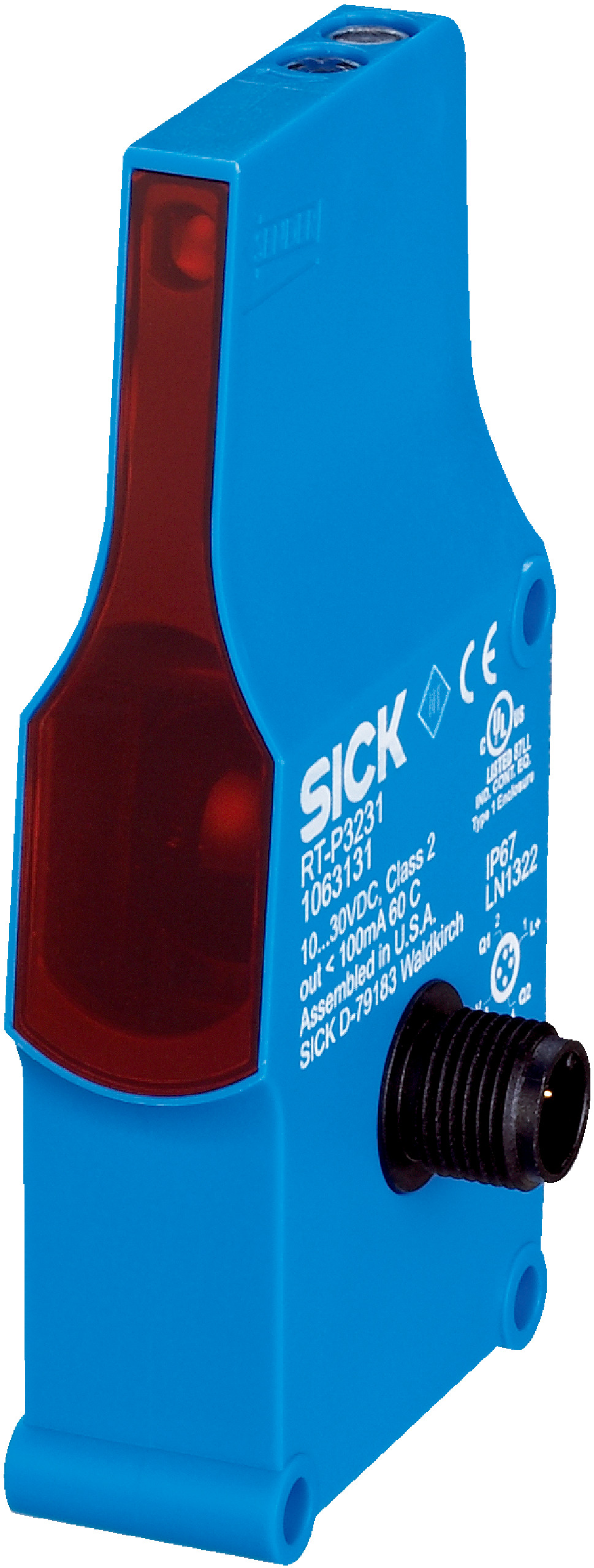

Photoelectric Proximity Sensor RTF-M1117 | Background Suppression | Infrared LED | IP67 Rated | by SICK
The RTF-M1117 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of 60 mm to 900 mm and an infrared LED light source, it ensures reliable performance in various applications. Its robust IP67-rated housing and fast response time of 2 ms make it ideal for material handling and safety control in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 60 mm to 900 mm
- Light source: Infrared LED
- Focus and angle of dispersion: 7°
- Light spot size at 500 mm: Ø 20 mm
- Supply voltage: 21.6 V DC to 250 V DC, 96-250 V AC @ 60 Hz, 111-250 V AC @ 50 Hz
- Current consumption: 10 mA
- Switching output: FET, light switching mode
- Output current max: ≤ 100 mA
- Response time: 2 ms
- Switching frequency: 250 Hz
- Time functions: Off delay adjustable 0 to 5 seconds
- Connection type: 4-wire cable, 2 m length
- Protection class: II
- Enclosure rating: IP67
- Housing material: Plastic, ABS
- Shock and vibration resistance: IEC 68
- Operating temperature: -40 °C to +40 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 99mm x 49mm x 21mm
- Weight: 0.175 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 60 mm to 900 mm
- Infrared LED light source with 7° focus and angle of dispersion
- Adjustable potentiometer with 9 turns for sensitivity tuning
- Robust plastic ABS housing with IP67 enclosure rating
- Shock and vibration resistant according to IEC 68
- Switching output via FET with light switching mode
- Fast response time of 2 ms and switching frequency of 250 Hz
- Off delay time function adjustable from 0 to 5 seconds
- Wide supply voltage range: 21.6 V DC to 250 V DC and AC
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and control in manufacturing processes
- ZoneControl applications requiring precise sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RTF-M1117 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety control applications.
