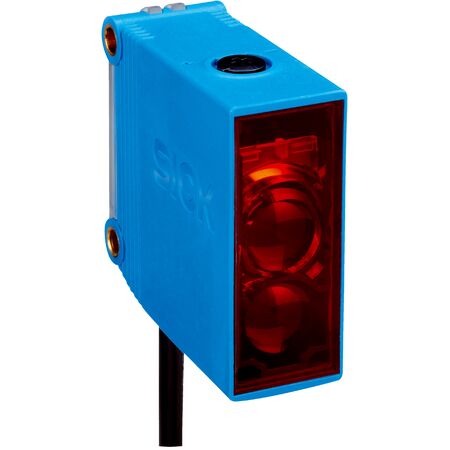

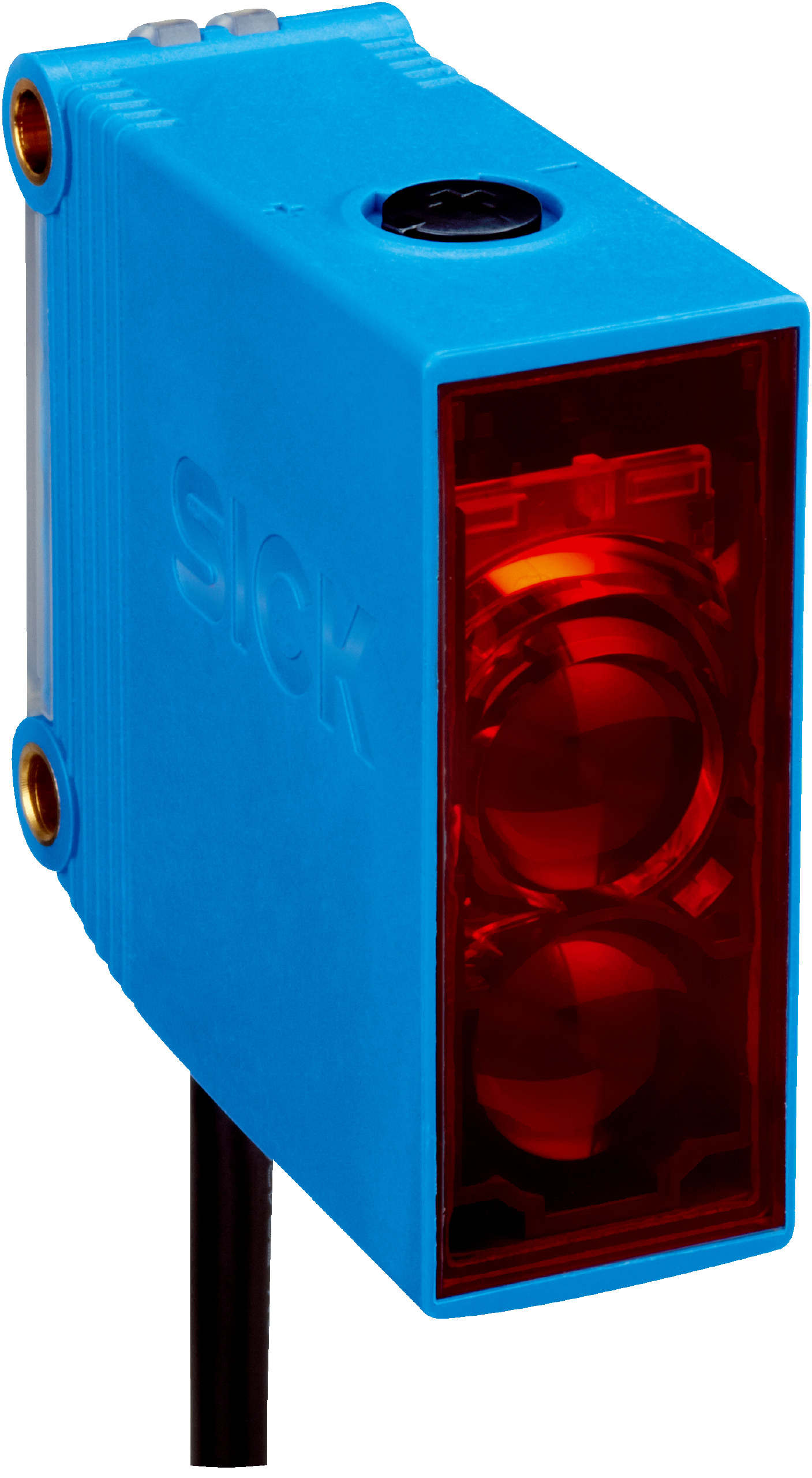

Photoelectric Proximity Sensor GTB10-R3821 | Background Suppression | Infrared LED | IP67 Rated | by SICK
The Photoelectric Proximity Sensor GTB10-R3821 features advanced background suppression technology and a sensing range from 20 mm to 1200 mm, making it ideal for industrial automation and safety monitoring applications. With a fast response time of ≤ 10 ms and a robust IP67 rated housing, this sensor ensures reliable performance in harsh environments, perfect for manufacturing process control and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max.: 20 mm to 1200 mm
- Type of light: Infrared light, wavelength 850 nm
- Light source: LED
- Light spot size: Ø 22 mm at 700 mm distance
- Adjustment: Potentiometer, 5 turns
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Ripple: < 10%
- Power consumption: ≤ 2.5 VA
- Switching output: Relay, SPDT, electrically isolated
- Switching mode: Light/dark switching
- Switching load max.: 0.11 A (250 V DC), 3 A (30 V DC), 3 A (250 V AC)
- Response time: ≤ 10 ms
- Switching frequency: 20 Hz
- Connection type: Cable, 5-wire, 2 m, PVC
- Conductor cross section: 0.25 mm²
- Circuit protection: C
- Protection class: II
- Enclosure rating: IP67
- Relay switching cycles min.: 100,000 cycles (3 A)
- Usage category: DC-13 and AC-15 according to EN 60947-1
- Electromagnetic compatibility: EN 60947-5-2, EN 61000-6-3
- Ambient operating temperature: -30 °C to +60 °C
- Ambient storage temperature: -40 °C to +70 °C
- Housing material: Plastic, ABS/PMMA
- Dimensions (H x L x W): 50mm x 52mm x 20mm
- Weight: 0.115 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with infrared LED light source
- Sensing range from 20 mm to 1200 mm
- Adjustable potentiometer with 5 turns for sensitivity tuning
- Relay SPDT electrically isolated switching output
- Light/dark switching mode
- High protection rating IP67 for harsh environments
- Wide supply voltage range from 24 V AC/DC to 240 V AC/DC
- Fast response time of ≤ 10 ms and switching frequency of 20 Hz
- Robust plastic ABS/PMMA housing material
- Operating temperature range from -30 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 2.5 VA reduces energy usage
- Durable IP67 rated housing extends product life and reduces waste
- Compliant with China-RoHS and other environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GTB10-R3821 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
