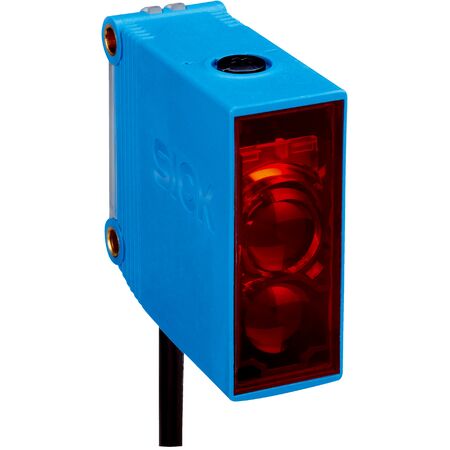

Photoelectric Proximity Sensor GTB10-R3822 | Background Suppression | Infrared LED | IP67 Rated | by SICK
The GTB10-R3822 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 20 mm to 1200 mm and background suppression technology. With a fast response time of ≤ 10 ms and an IP67 rating, this sensor is perfect for object detection and safety monitoring in harsh environments, ensuring reliable performance in manufacturing and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max.: 20 mm to 1200 mm
- Type of light: Infrared light (850 nm wavelength)
- Light source: LED
- Light spot size: Ø 22 mm at 700 mm distance
- Adjustment: Potentiometer, 5 turns
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Power consumption: ≤ 2.5 VA
- Switching output: Relay, SPDT, electrically isolated
- Switching mode: Light/dark switching
- Switching load max.: 0.11 A (250 V DC), 3 A (30 V DC), 3 A (250 V AC)
- Response time: ≤ 10 ms
- Switching frequency: 20 Hz
- Connection type: Cable, 5-wire, 2 m, PVC
- Protection class: II
- Enclosure rating: IP67
- Relay switching cycles min.: 100,000 cycles (3 A)
- Ambient operating temperature: –30 °C to +60 °C
- Ambient storage temperature: –40 °C to +70 °C
- Housing material: Plastic, ABS/PMMA
- Dimensions (H x L x W): 50mm x 52mm x 20mm
- Weight: 0.115 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with infrared LED light source
- Sensing range from 20 mm to 1200 mm
- Adjustable potentiometer with 5 turns for sensitivity tuning
- Relay SPDT electrically isolated switching output
- High protection rating of IP67 for harsh environments
- Wide supply voltage range from 24 V AC/DC to 240 V AC/DC
- Fast response time of ≤ 10 ms and switching frequency of 20 Hz
- Durable plastic ABS/PMMA housing material
- Includes mounting bracket BEF-G10UC01
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GTB10-R3822 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
