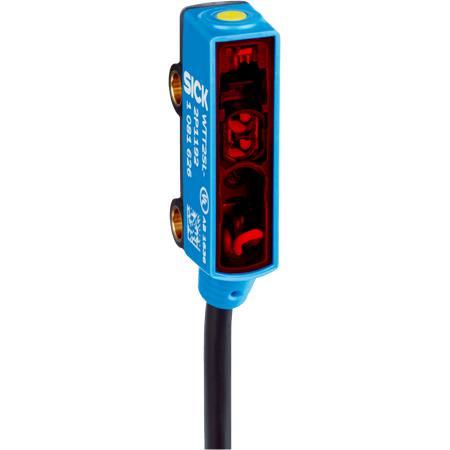

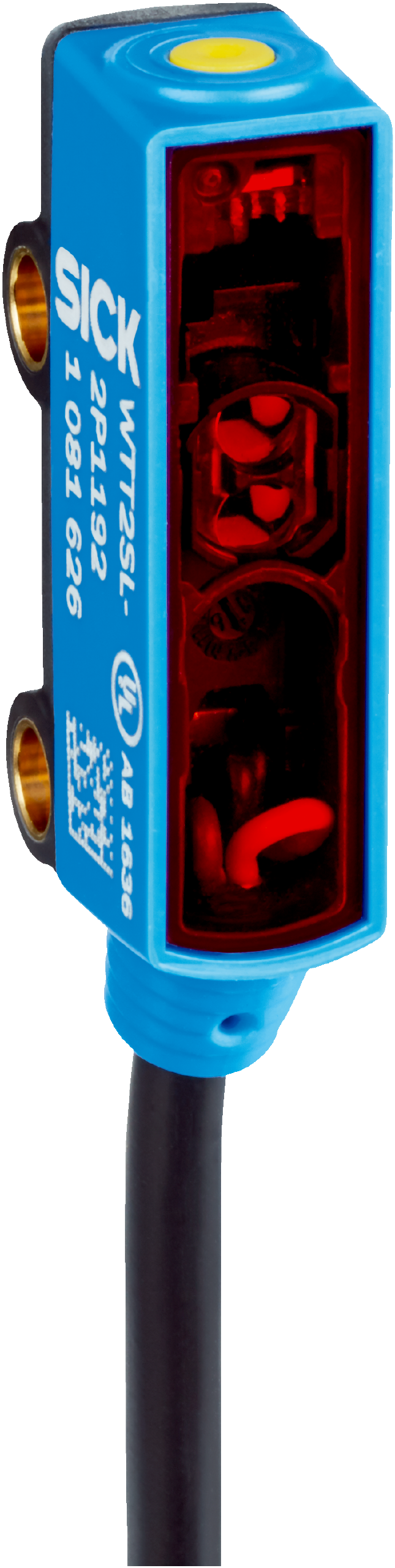

Photoelectric Proximity Sensor WTT2SL-2P1192 | Background Suppression | Infrared Laser | IP67 Rated | by SICK
The WTT2SL-2P1192 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and a sensing range of 50 mm to 800 mm. With an infrared laser light source and IP67 rated enclosure, it ensures reliable performance in detecting small objects and measuring distances accurately. Ideal for manufacturing lines, this sensor offers low current consumption and a quick response time of 90 ms.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric proximity sensor, Optical sensor, Background suppression sensor, Time-of-flight sensor, Infrared proximity sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 800 mm
- Type of light: Infrared laser (940 nm wavelength)
- Laser class: 1
- Light spot size: Ø 10 mm at 300 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, light/dark switching
- Output current max: ≤ 50 mA
- Response time: Typical 90 ms
- Switching frequency: 5 Hz
- Circuit protection: Types A, B, D
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic (MABS ABS)
- Optics material: Plastic (PMMA)
- Connection: 4-wire cable, 2 m length, PVC insulated
- Dimensions (H x L x W): 27.5mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with infrared laser light source
- Sensing range from 50 mm to 800 mm
- Laser class 1 safety certified
- Single teach-in button for easy adjustment
- IP67 rated enclosure for dust and water protection
- Light/dark switching mode with PNP output
- Low current consumption of 20 mA
- Response time typically 90 ms
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct sensor alignment and electrical connection according to safety standards.
Applications
- Industrial automation for detecting small objects
- Background suppression sensing in manufacturing lines
- Optical time-of-flight measurement applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT2SL-2P1192 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
