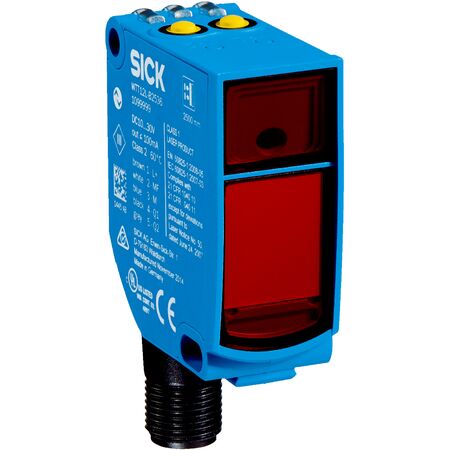

Photoelectric Proximity Sensor WTT12L-B2573 | Background Suppression | Infrared Laser | IP67 Rated | by SICK
The WTT12L-B2573 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and optical time-of-flight technology. With a sensing range of 50 mm to 2,500 mm and an infrared laser light source, it ensures precise object detection. Ideal for safety monitoring in manufacturing processes, this sensor operates efficiently in temperatures from -25 °C to +50 °C, making it a reliable choice for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 2,500 mm
- Light source: Infrared laser, wavelength 827 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: Push-pull PNP/NPN, 2 outputs
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP67
- Warm-up time: < 15 minutes
- Initialization time: < 300 ms
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Connection type: Plug, M12, 5-pin
- Ambient operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 49.6mm x 44.2mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with infrared laser light source
- Sensing range from 50 mm up to 2,500 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Single teach-in button for easy adjustment
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- Dual push-pull switching outputs (PNP/NPN) with max output current ≤ 100 mA
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -25 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Robotics and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation reduces power consumption in industrial applications
- Durable IP67 housing extends product life, reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT12L-B2573 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
