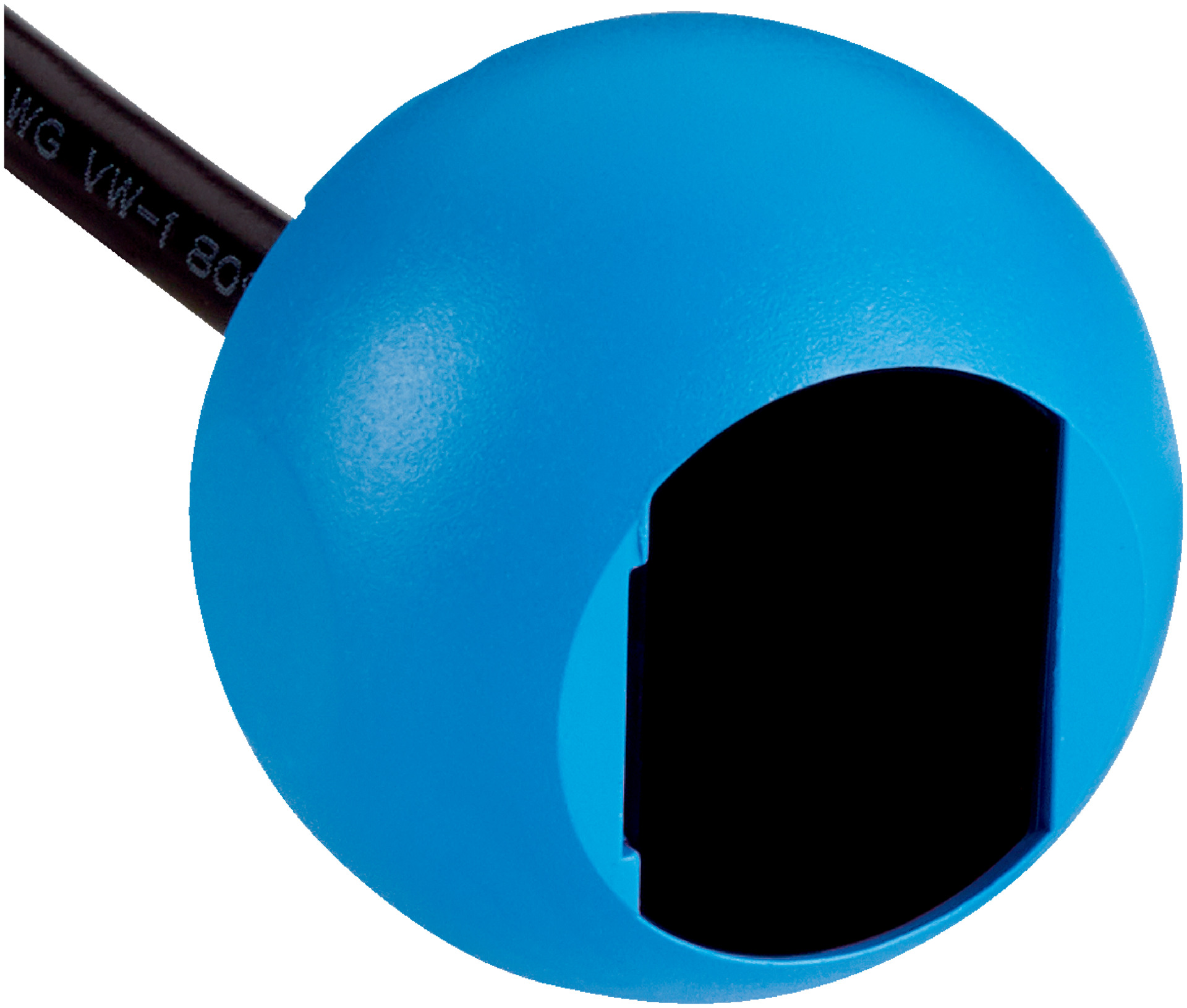

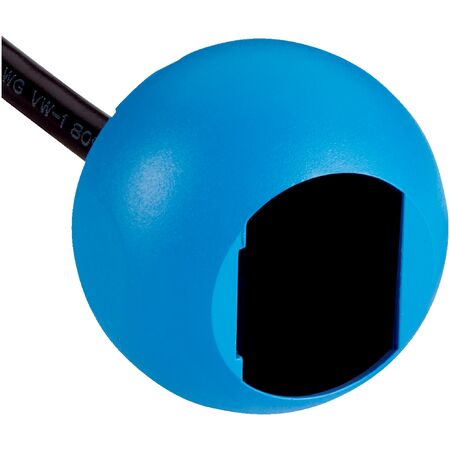

Photoelectric Proximity Sensor | Background Suppression | Infrared Light Source | IP67 Rated | by SICK
The Photoelectric Proximity Sensor ZTB18-8AB1G1D02 features background suppression and an infrared light source, making it ideal for industrial automation and manufacturing process control. With a high switching frequency of 500 kHz and an IP67 rated enclosure, this sensor ensures reliable object detection in challenging environments, perfect for robotics and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection: 4-wire cable, 2 m length, PVC insulation
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Circuit protection: A, B, D types
- Operating temperature: –40 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 24mm x 26mm x 23mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Hybrid housing design with blue color
- Sensing range from 5 mm to 50 mm
- Infrared light source with PinPoint LED
- Light spot size Ø 8 mm at 100 mm distance
- Operating wavelength of 850 nm
- Push-pull switching output with PNP/NPN options
- Light and dark switching modes
- High switching frequency of 500 kHz
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from –40 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Robotics and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient infrared LED technology
- Durable IP67 housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ZTB18-8AB1G1D02 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
