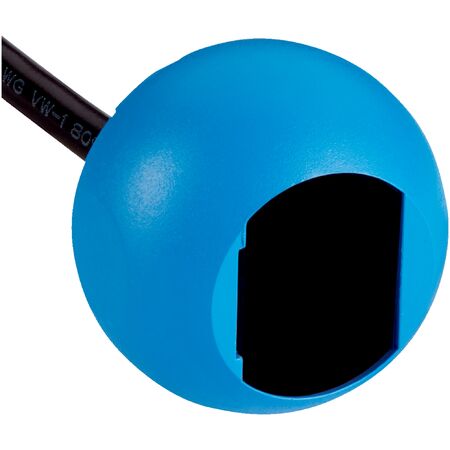

Photoelectric Proximity Sensor | Background Suppression | Infrared Light Source | IP67 Rated | by SICK
The Photoelectric Proximity Sensor ZTB18-8AB1G1D04 features background suppression and a sensing range of 5 mm to 100 mm, making it ideal for industrial automation and manufacturing process control. With a robust IP67 rating and a high switching frequency of 500 kHz, this sensor ensures reliable performance in various applications, including safety and presence detection in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 5 mm to 100 mm
- Light source: PinPoint LED, infrared light at 850 nm wavelength
- Supply voltage: 10 V DC to 30 V DC, ripple < 10%
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN, light and dark switching modes
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection: 4-wire cable, 2 m length, PVC insulation
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Housing material: ABS plastic
- Optics material: PMMA plastic
- Weight: 4.6 g
- Dimensions (H x L x W): 24mm x 26mm x 23.3mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Hybrid housing design with blue color
- Sensing range from 5 mm to 100 mm
- Infrared light source with PinPoint LED
- Light spot size Ø 8 mm at 100 mm distance
- Supply voltage 10 V DC to 30 V DC with ripple < 10%
- Push-pull switching output with PNP/NPN options
- Switching modes: Light switching and Dark switching
- High switching frequency up to 500 kHz
- Cable open end, 4-wire, 2 m length with PVC insulation
- Protection class III and enclosure rating IP67
- Operating temperature range from -40 °C to +55 °C
- Housing made of ABS plastic and optics made of PMMA plastic
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and presence detection in machinery
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient infrared LED technology
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZTB18-8AB1G1D04 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
