Photoelectric Proximity Sensor | Background Suppression | Infrared LED | IP67 Rated | by SICK

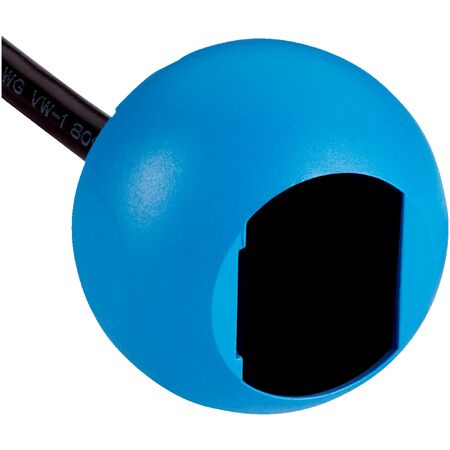

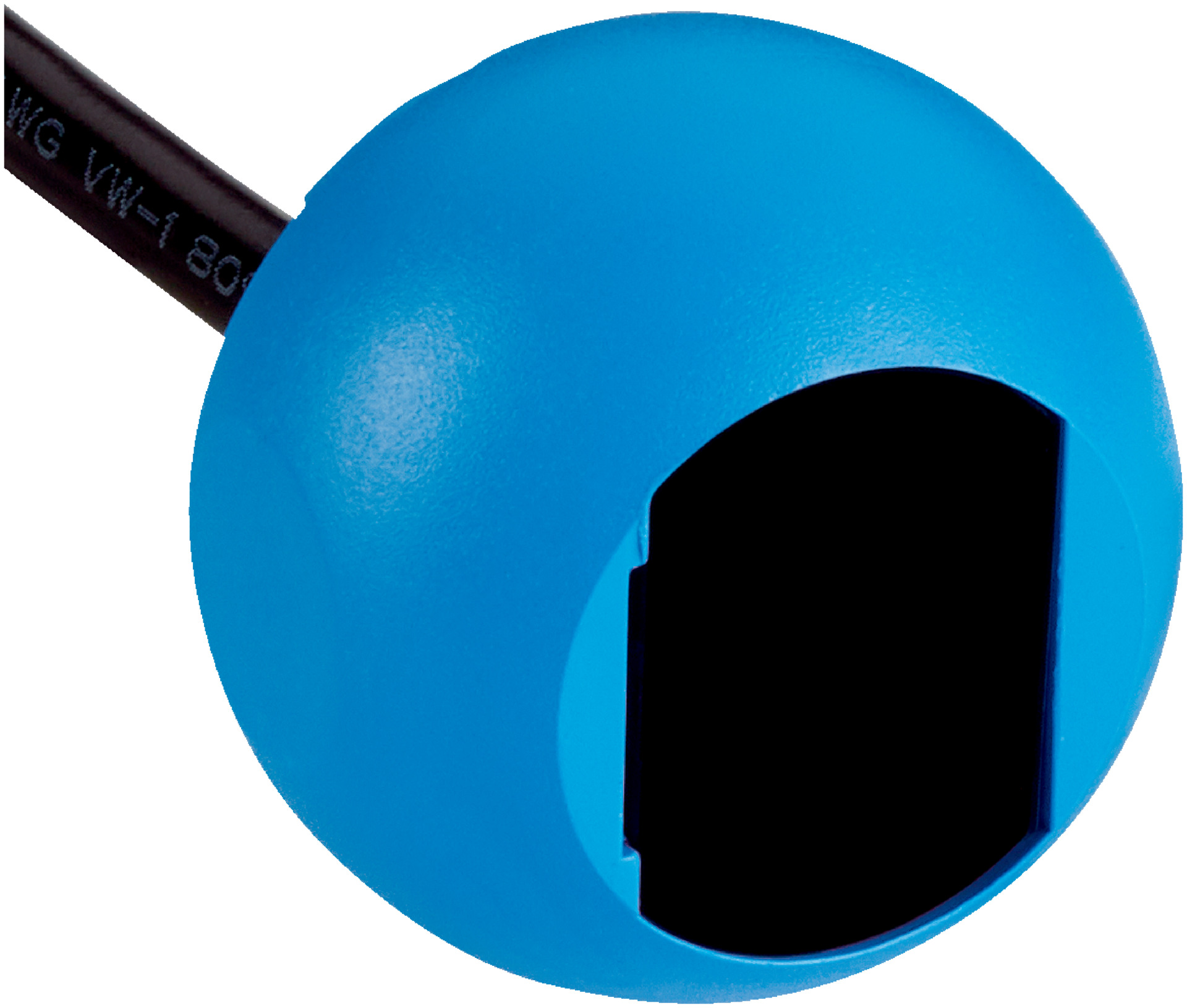

The Photoelectric Proximity Sensor ZTB18-8AB4B1D04 features background suppression and an infrared PinPoint LED light source, making it ideal for industrial automation and manufacturing process control. With a sensing range of 5 mm to 100 mm and a rapid response time of ≤ 1 ms, this sensor ensures precise object detection in various applications. Its durable IP67-rated housing provides excellent protection against dust and water, ensuring long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 5 mm to 100 mm
- Light source: Infrared PinPoint LED, wavelength 850 nm
- Supply voltage: 10 V DC to 30 V DC, ripple < 10%
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN, light and dark switching
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection: Cable with M12 male connector, 4-pin, 150 mm
- Housing material: Plastic ABS, optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: –40 °C to +55 °C
- Weight: 4.6 g
- Dimensions (H x L x W): 24mm x 26mm x 23.3mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Hybrid housing design with blue color
- Sensing range from 5 mm to 100 mm
- Infrared light source with PinPoint LED
- Light spot size Ø 8 mm at 100 mm distance
- Supply voltage 10 V DC to 30 V DC with ripple < 10%
- Push-pull switching output with PNP/NPN options
- Light and dark switching modes
- Response time ≤ 1 ms and switching frequency 500 kHz
- Cable with M12 male connector, 4-pin, 150 mm
- Enclosure rating IP67 for dust and water protection
- Operating temperature range –40 °C to +55 °C
- Housing made of plastic ABS and optics made of PMMA
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and safety systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient infrared LED technology
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ZTB18-8AB4B1D04 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
