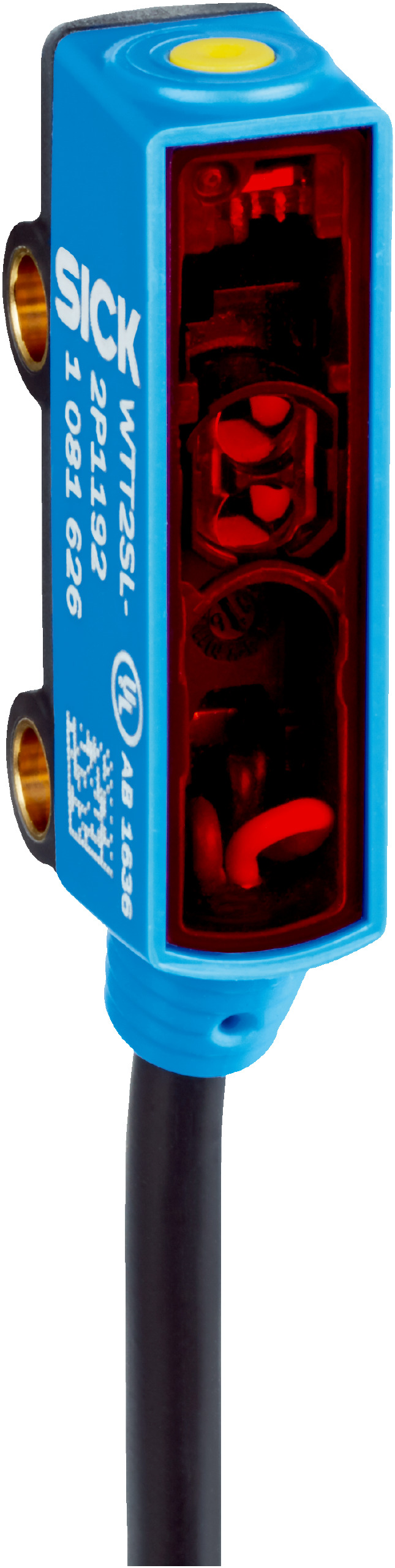

Photoelectric Proximity Sensor | Background Suppression | Infrared Laser | IP67 Rated | by SICK
The Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing range of 50 mm to 800 mm and background suppression technology. With an infrared laser light source and an IP67 rated enclosure, it ensures reliable performance in challenging environments, making it ideal for manufacturing lines and optical time-of-flight measurement applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 800 mm
- Light source: Infrared laser, wavelength 940 nm
- Laser class: 1
- Adjustment: Single teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, dark switching mode
- Output current max: ≤ 50 mA
- Response time: Typical 90 ms
- Switching frequency: 5 Hz
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic (MABS ABS)
- Optics material: Plastic (PMMA)
- Connection type: Cable with JST-connector, 350 mm length
- Cable diameter: Ø 3 mm
- Cable material: Plastic, PVC
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 27.5mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with infrared laser light source
- Sensing range from 50 mm to 800 mm
- Laser class 1 safety compliant
- Single teach-in button for easy adjustment
- IP67 rated enclosure for dust and water protection
- Dark switching mode with PNP output
- Low current consumption of 20 mA
- Response time typically 90 ms
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for detecting small objects
- Background suppression sensing in manufacturing lines
- Optical time-of-flight measurement applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

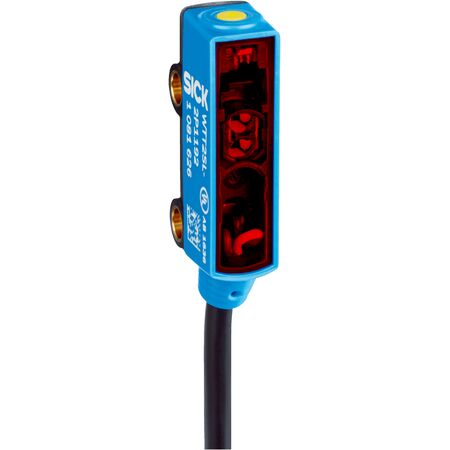

The SICK WTT2SL-2F3092S07 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
