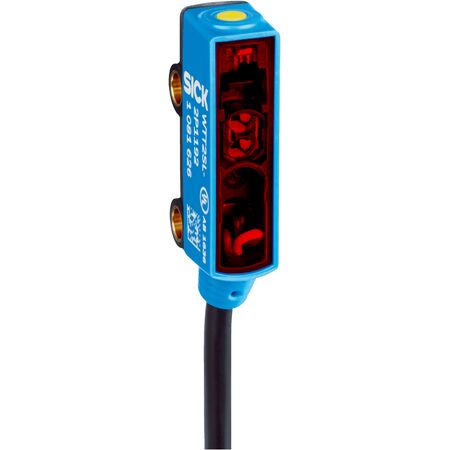

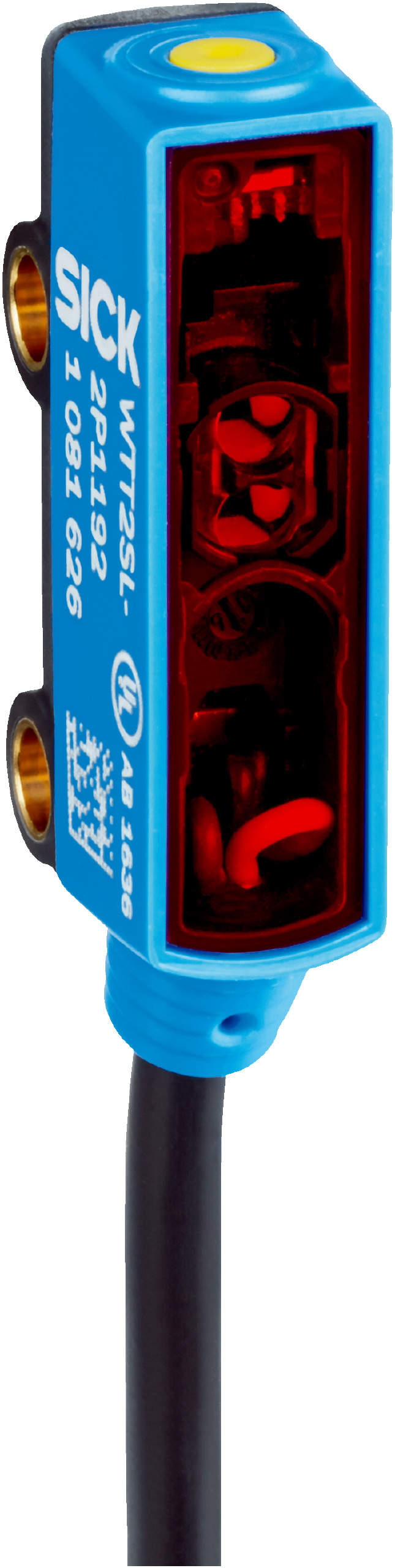

Photoelectric Proximity Sensor | Background Suppression | Infrared Laser | IP67 Rated | by SICK
The Photoelectric Proximity Sensor WTT2SL-2F3092S11 features background suppression and an infrared laser light source, making it ideal for industrial automation and object detection. With a sensing range of 50 mm to 800 mm and a robust IP67 rated enclosure, this sensor ensures reliable performance in challenging environments, while its single teach-in button allows for easy adjustments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 800 mm
- Light source: Infrared laser, wavelength 940 nm
- Laser class: 1
- Adjustment: Single teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, light/dark switching
- Output current max: ≤ 50 mA
- Response time: Typical 90 ms
- Switching frequency: 5 Hz
- Circuit protection: Types A, B, D
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic (MABS ABS)
- Optics material: Plastic (PMMA)
- Connection: Cable with JST connector, 350 mm length
- Operating temperature: -25°C to +50°C
- Storage temperature: -40°C to +75°C
- Dimensions (H x L x W): 27.5mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with infrared laser light source
- Sensing range from 50 mm to 800 mm
- Laser class 1 safety rating
- Single teach-in button for easy adjustment
- IP67 rated enclosure for dust and water protection
- Light/dark switching mode with PNP output
- Response time typically 90 ms
- Operating temperature range from -25°C to +50°C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for detecting small objects
- Background suppression sensing in manufacturing lines
- Optical time-of-flight measurement applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 rated housing reduces replacement frequency
- Non-contact sensing reduces mechanical wear and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT2SL-2F3092S11 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
