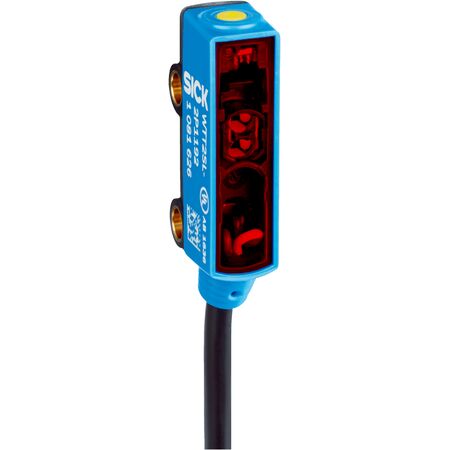

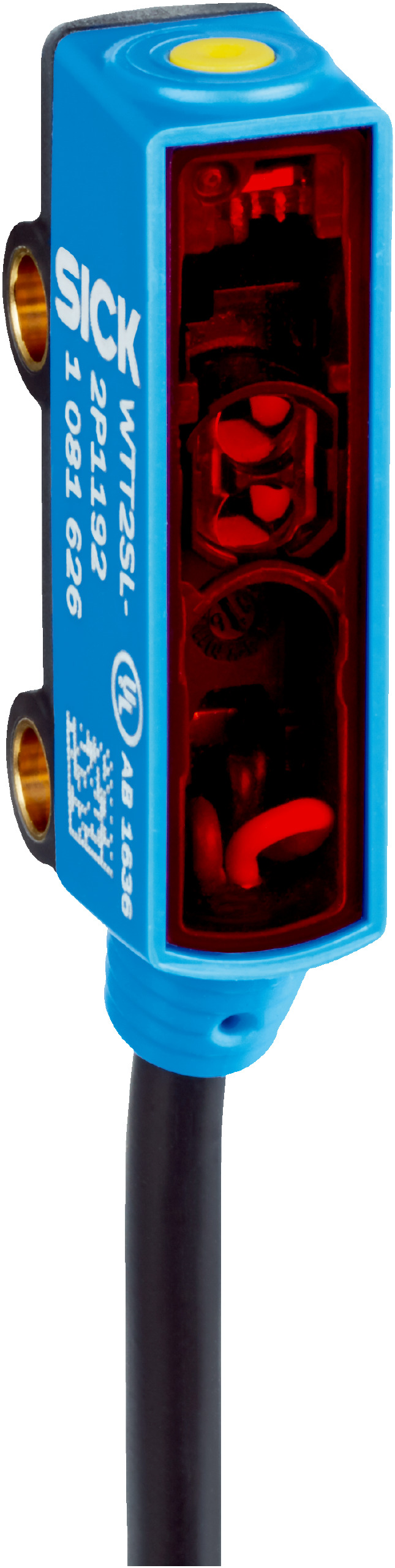

Photoelectric Proximity Sensor WTT2SL-2P3292 | Background Suppression | Infrared Laser | IP67 Rated | by SICK
The WTT2SL-2P3292 Photoelectric Proximity Sensor is designed for precision in industrial automation, featuring background suppression and optical time-of-flight technology. With a sensing range of 50 mm to 800 mm and an infrared laser light source, it ensures reliable object detection in manufacturing processes. Its IP67 rated enclosure provides dust and water protection, making it ideal for various applications in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 800 mm
- Light source: Infrared laser, wavelength 940 nm
- Laser class: 1
- Adjustment: Single teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, light/dark switching mode
- Output current max: ≤ 50 mA
- Response time: Typical 90 ms
- Switching frequency: 5 Hz
- Circuit protection: Types A, B, D
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic (MABS ABS)
- Optics material: Plastic (PMMA)
- Connection: Cable with M8 male connector, 4-pin, 200 mm
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 27.5mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with infrared laser light source
- Sensing range from 50 mm to 800 mm
- Laser class 1 safety certified
- Single teach-in button for easy adjustment
- IP67 rated enclosure for dust and water protection
- Cable with M8 male connector, 4-pin, 200 mm length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for detecting small objects
- Object detection in manufacturing processes
- Background suppression sensing in robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTT2SL-2P3292 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
