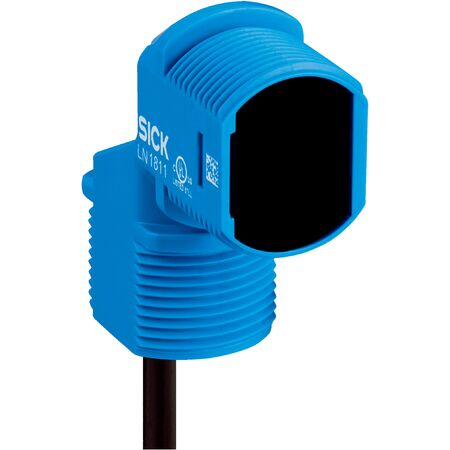

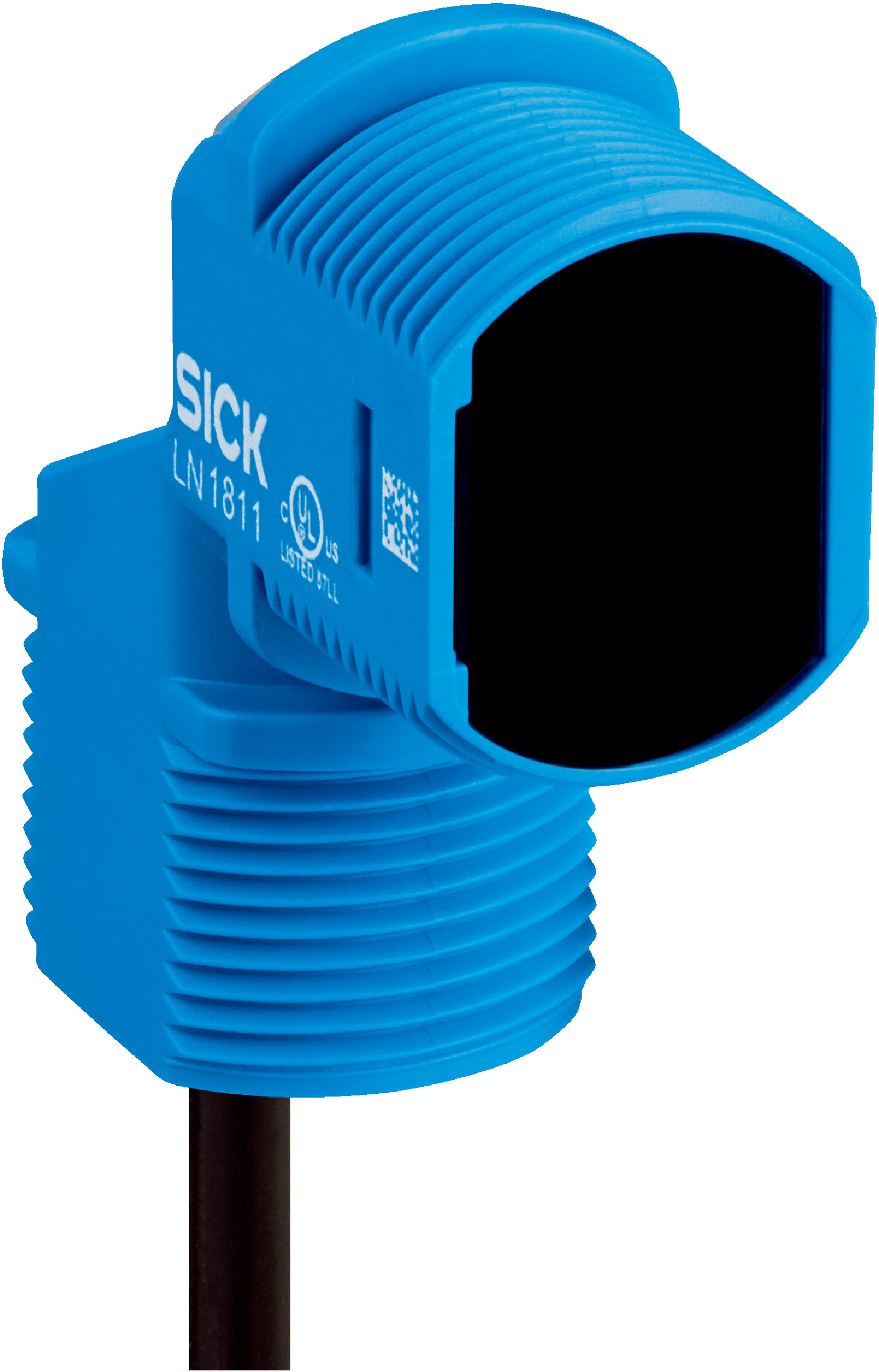

Photoelectric Proximity Sensor | Background Suppression | Infrared Light Source | High Switching Frequency | by SICK
The Photoelectric Proximity Sensor ZTB18-4AB1G1D02 features advanced background suppression technology and an infrared light source for precise object detection. With a high switching frequency of 500 kHz and a response time of ≤ 1 ms, it's perfect for industrial automation and manufacturing process control. Built to withstand harsh environments with an IP67 rating, this sensor is ideal for robotics and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN, light and dark switching
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection type: Cable open end, 4-wire, 2 m
- Cable material: Plastic, PVC
- Conductor cross section: 0.13 mm²
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Protection class: III
- Operating temperature: –40 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Light source: PinPoint LED, infrared light at 850 nm
- Light spot size: Ø 8 mm at 100 mm distance
- Dimensions (H x L x W): 43mm x 33mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Hybrid housing design with M18 thread diameter
- Sensing range from 5 mm to 50 mm
- Infrared light source with PinPoint LED
- Light spot size Ø 8 mm at 100 mm distance
- Switching output: Push-pull PNP/NPN with light and dark switching modes
- High switching frequency of 500 kHz and response time ≤ 1 ms
- Cable open end, 4-wire, 2 m with plastic PVC material
- Protection class III and enclosure rating IP67
- Operating temperature range from –40 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Robotics and safety systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient infrared LED technology
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ZTB18-4AB1G1D02 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
