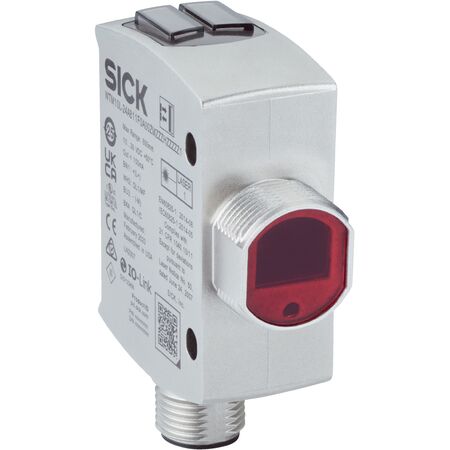

Photoelectric Proximity Sensor | Background & Foreground Suppression | IO-Link Communication | IP67 & IP69 Rated | by SICK
The Photoelectric Proximity Sensor is designed for high-speed object detection, featuring background and foreground suppression for precise measurements. With a sensing range of 25 mm to 400 mm and a resolution of 1 mm, it's perfect for industrial automation applications. Built with a robust stainless steel housing and IP67/IP69 protection, this sensor ensures durability and reliability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background and foreground suppression
- Sensing range: 25 mm to 400 mm depending on mode
- Resolution: 1 mm
- Repeatability: < 0.5%
- Accuracy: < 3%
- Light source: Visible red laser, 655 nm wavelength
- Laser class: 1
- Response time: 1.8 ms to 15 ms depending on mode
- Switching frequency: Up to 275 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 25 mA
- Outputs: 2 push-pull outputs, PNP/NPN configurable
- Protection class: III
- Enclosure rating: IP67 and IP69
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -40 °C to +75 °C
- Communication: IO-Link V1.1 with 38.4 kBaud data rate
- Housing material: Stainless steel V4A (1.4404, 316L)
- Connection: Male M12, 4-pin connector
- Dimensions (H x L x W): 57mm x 42mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background and foreground suppression
- MultiMode operation with 1-point, 2-point, and manual teach-in
- Adjustable sensing range up to 400 mm depending on mode
- Visible red laser light source with point-shaped beam
- High accuracy and repeatability with 1 mm resolution
- IO-Link communication for configuration and Smart Task functions
- Robust stainless steel V4A housing with IP67 and IP69 protection
- Fast response times and high switching frequencies
- Touch display for easy parameter setting
- Dual push-pull outputs configurable as PNP/NPN
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and IO-Link configuration to ensure optimal performance and safety.
Applications
- Industrial automation for object detection
- High-speed object detection
- Detection of small, flat, uneven, shiny, poorly remitting, and tilted objects
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable stainless steel housing extends product lifespan, reducing waste
- Complies with environmental regulations including China-RoHS
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTM10L-241612D0A00ZWZZZZZZZZZ1 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
