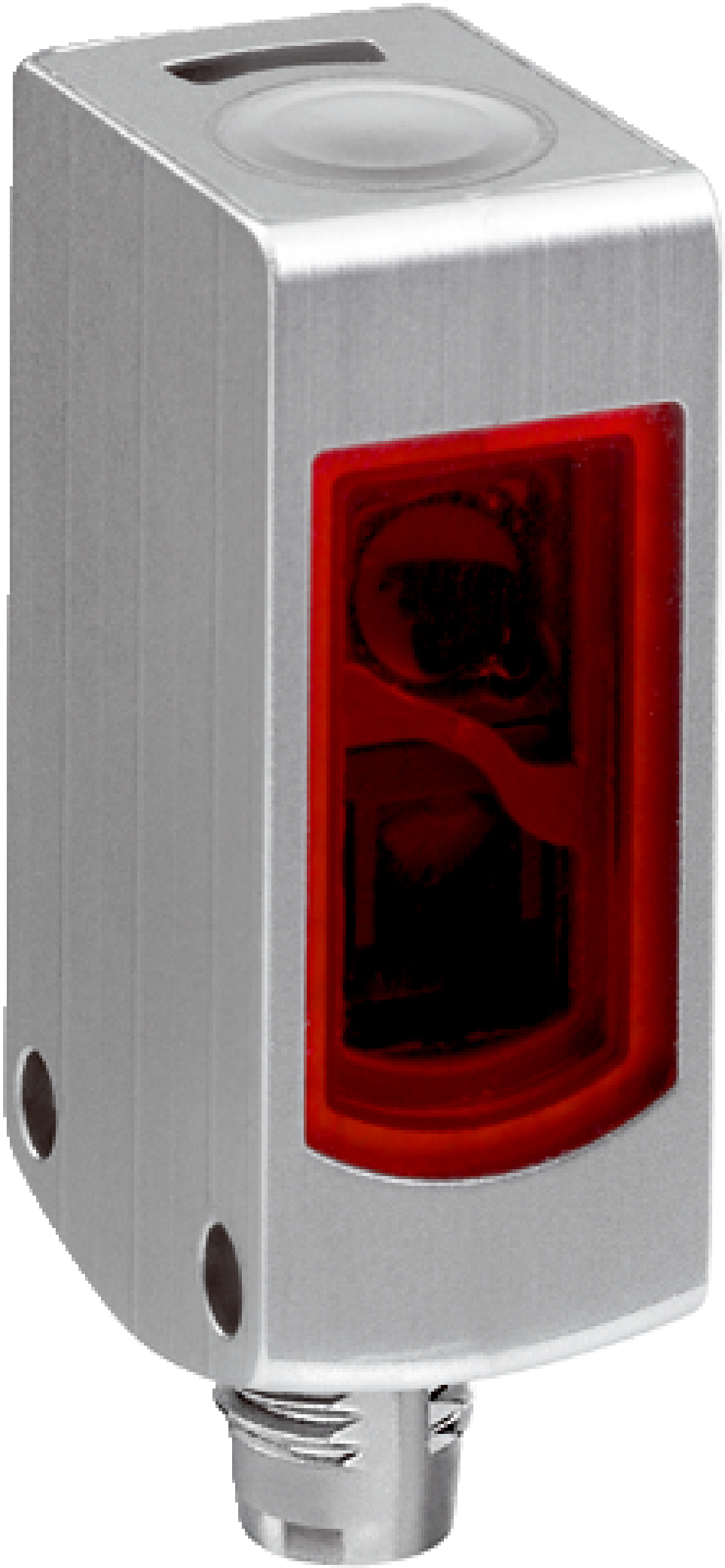

Photoelectric Proximity Sensor WTB4S-3P2402VS09 | Background Suppression | IP66/IP67/IP68/IP69K Rated | by SICK
The WTB4S-3P2402VS09 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and a sensing range of 10 mm to 150 mm. With a robust stainless steel V4A housing and high protection ratings, it's perfect for hygienic washdown environments. Fast response time under 0.5 ms and digital PNP output make it ideal for precise object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WTB4S-3P2402VS09 | Background Suppression | IP66/IP67/IP68/IP69K Rated | by SICK
Brand: SICK
SKU: 1054706
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, PNP proximity sensor, Washdown proximity sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 150 mm, max 280 mm
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 2.5 mm at 100 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP digital output, light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Housing: Metal stainless steel V4A (1.4404, 316L), slim design
- Front screen: Plastic, PMMA
- Connection: Male connector M12, 4-pin
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- Dimensions (H x L x W): 45mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 10 mm to 150 mm, max 280 mm
- PinPoint LED visible red light with 650 nm wavelength
- Light spot diameter of 2.5 mm at 150 mm distance
- Slim stainless steel V4A housing suitable for washdown environments
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
- Cable adjustment with single teach-in button
- Digital PNP output with light/dark switching mode
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring robust sensors
- Background suppression sensing in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Robust design reduces replacement frequency and electronic waste
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB4S-3P2402VS09 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
