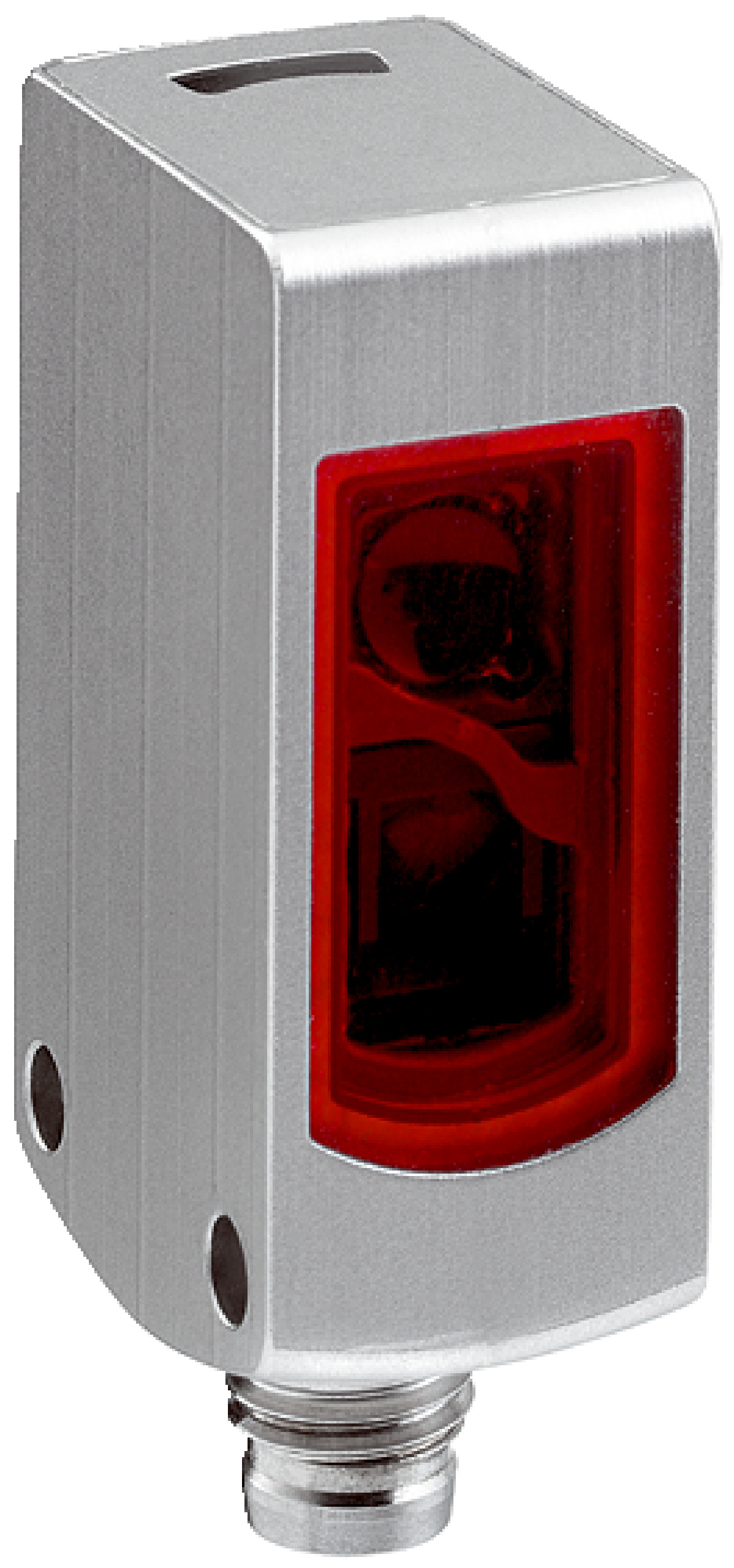

Photoelectric Proximity Sensor WTB4S-3P2265V | Background Suppression | IP66/IP67/IP68/IP69K Rated | Slim Stainless Steel Design | by SICK
The WTB4S-3P2265V Photoelectric Proximity Sensor is engineered for precision in industrial automation, featuring a sensing range of 10 mm to 350 mm and a robust stainless steel V4A housing. With a fast response time under 0.5 ms and high protection ratings (IP66/IP67/IP68/IP69K), it's perfect for hygienic and washdown zones, ensuring reliable object detection in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WTB4S-3P2265V | Background Suppression | IP66/IP67/IP68/IP69K Rated | Slim Stainless Steel Design | by SICK
Brand: SICK
SKU: 1045091
Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, Washdown Proximity Sensor, Stainless Steel Proximity Sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 350 mm (standard), max 4 mm to 500 mm
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Housing: Metal stainless steel V4A (1.4404, 316L), slim design
- Front screen: Plastic PMMA
- Protection class: III
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP, light switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- Connection: Male connector M8, 4-pin
- Dimensions (H x L x W): 45mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 10 mm to 350 mm, max 4 mm to 500 mm
- PinPoint LED visible red light with 650 nm wavelength
- Slim stainless steel V4A housing with washdown design
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms and switching frequency up to 1,000 Hz
- Cable adjustment and male M8 4-pin connector
- Certified for hygienic and washdown zones
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor calibration.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring robust sensors
- Background suppression sensing in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Robust design reduces replacement frequency and electronic waste
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK WTB4S-3P2265V Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
