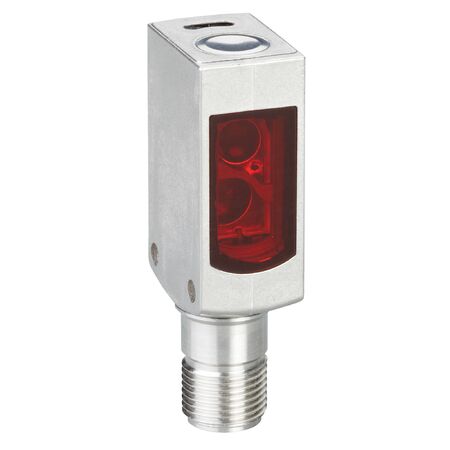

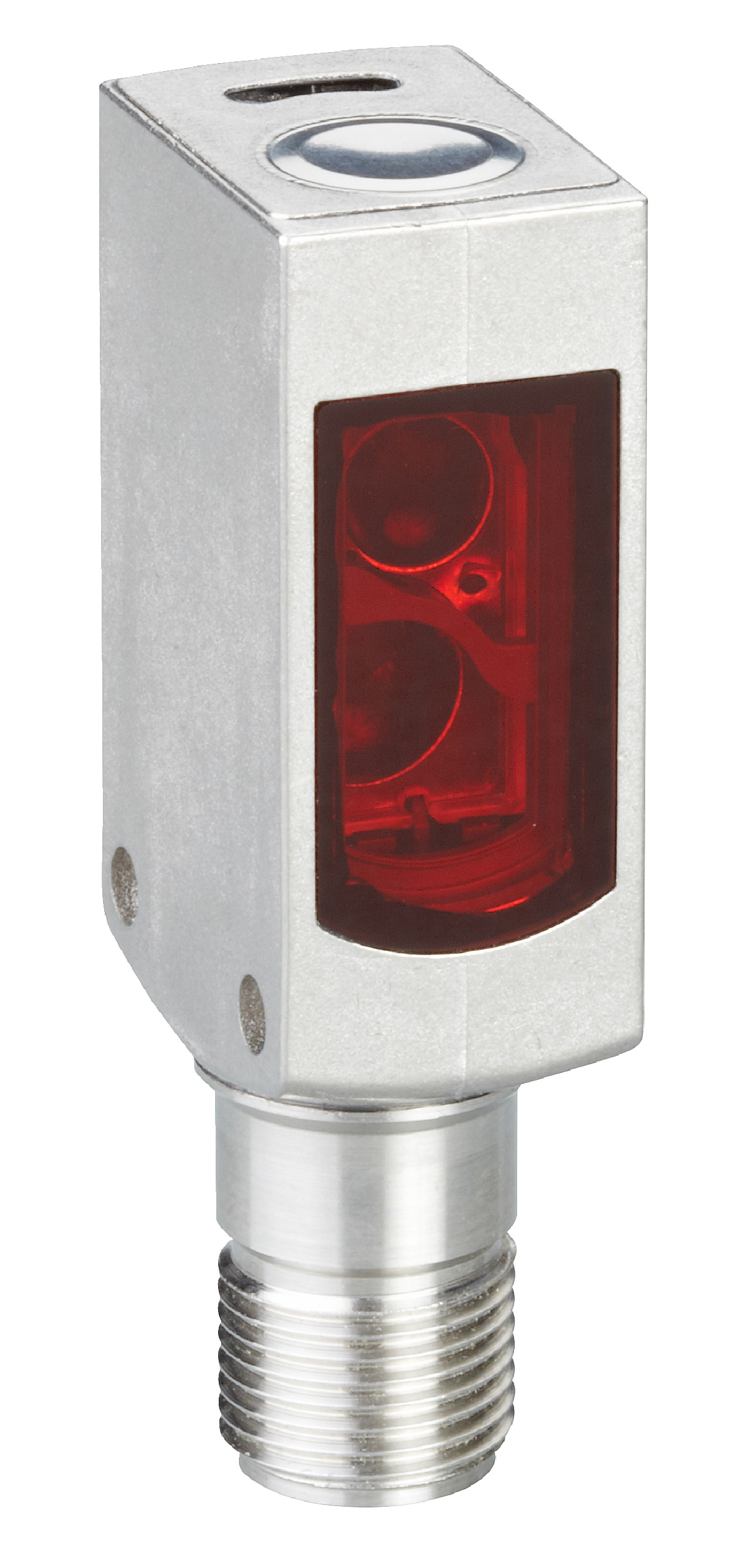

Photoelectric Proximity Sensor | Background Suppression | IP66/IP67/IP68/IP69K Rated | Stainless Steel Housing | by SICK
The Photoelectric Proximity Sensor WTB4SC-3P2462VB02 features background suppression technology with a sensing range of 10 mm to 350 mm, and a maximum of 500 mm. Designed for industrial automation and hygienic zones, this sensor is built with durable stainless steel housing and offers a fast response time of under 0.5 ms. Ideal for machine safety and process control, it ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 350 mm (max 500 mm)
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Adjustment: Single teach-in button
- Housing: Metal, Stainless steel V4A (1.4404, 316L), front screen Plastic PMMA
- Connection: Male connector M12, 4-pin
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP digital output, light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Communication: IO-Link COM2 (38.4 kBaud), cycle time 2.3 ms
- Process data length: 16 Bit
- Circuit protection: Types A, B, C
- Dimensions (H x L x W): 45mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 10 mm to 350 mm, max 500 mm
- PinPoint LED visible red light with 650 nm wavelength
- Single teach-in button for easy adjustment
- Housing designed for washdown environments with stainless steel V4A (1.4404, 316L)
- IP66, IP67, IP68, IP69K rated for high protection
- Digital PNP output with light/dark switching mode
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
- IO-Link communication interface with COM2 38.4 kBaud
- Complementary output function with circuit protection
- Operating temperature range from -30 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring robust sensors
- Machine safety and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
- Compliant with China-RoHS and ECOLAB certificates ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB4SC-3P2462VB02 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
