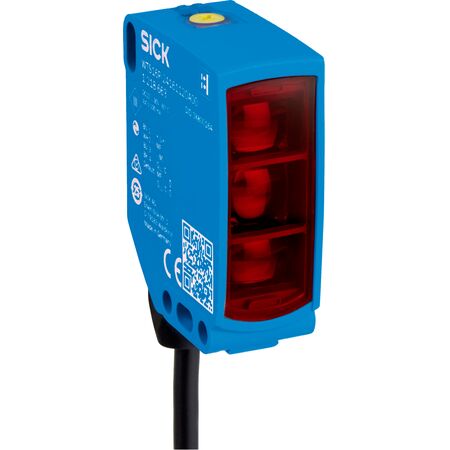

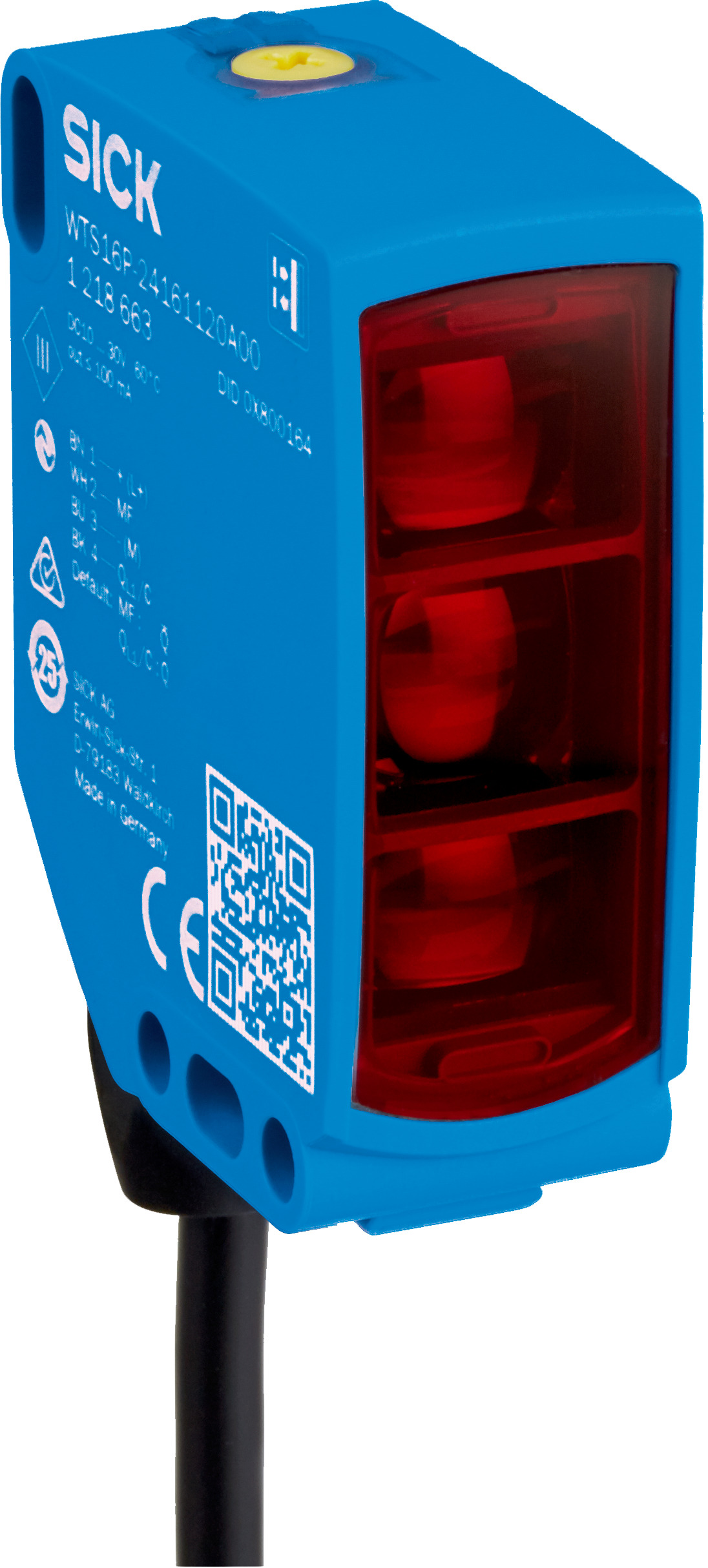

Photoelectric Proximity Sensor WTS16P-1H161120A00 | Background Suppression | IP66/IP67/IP69 Rated | by SICK
The WTS16P-1H161120A00 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of 10 mm to 750 mm and background suppression using TwinEye technology, it ensures reliable performance even in harsh environments. Featuring a robust IP66/IP67/IP69 rated housing and a PinPoint LED light source, this sensor is perfect for detecting shiny or uneven objects, making it an essential tool for any automation setup.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 750 mm, adjustable switching threshold 100 mm to 750 mm
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Light spot size: Ø 8 mm at 300 mm distance
- Response time: ≤ 1.4 ms
- Switching frequency: 350 Hz
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Cable: 4-wire, 2 m length, Ø 4.8 mm diameter
- Housing material: Plastic VISTAL®, front screen PMMA
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression using TwinEye technology
- Sensing range from 10 mm to 750 mm with adjustable switching threshold
- PinPoint LED visible red light with 635 nm wavelength
- BluePilot for easy sensing range adjustment
- IO-Link interface for sensor parameter configuration and Smart Task functions
- High protection rating: IP66, IP67, IP69
- Robust plastic VISTAL® housing with PMMA front screen
- Operating temperature range from -40 °C to +60 °C
- Shock resistance up to 50 g and vibration resistance from 10 Hz to 2000 Hz
- Dual complementary push-pull digital outputs with light/dark switching
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper configuration and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Detection of uneven, shiny objects
- Detection of objects wrapped in film
- Use in harsh environments requiring IP66 to IP69 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 30 mA)
- Robust design minimizes environmental impact through durability and resistance to harsh conditions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTS16P-1H161120A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
