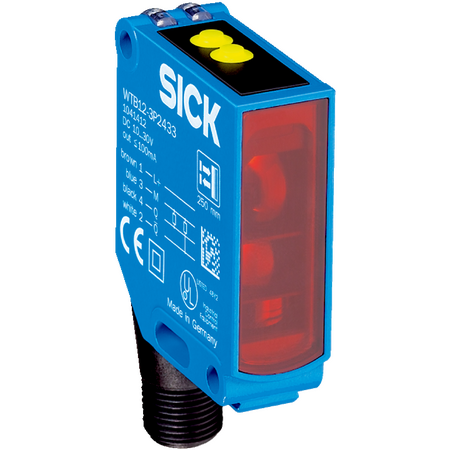

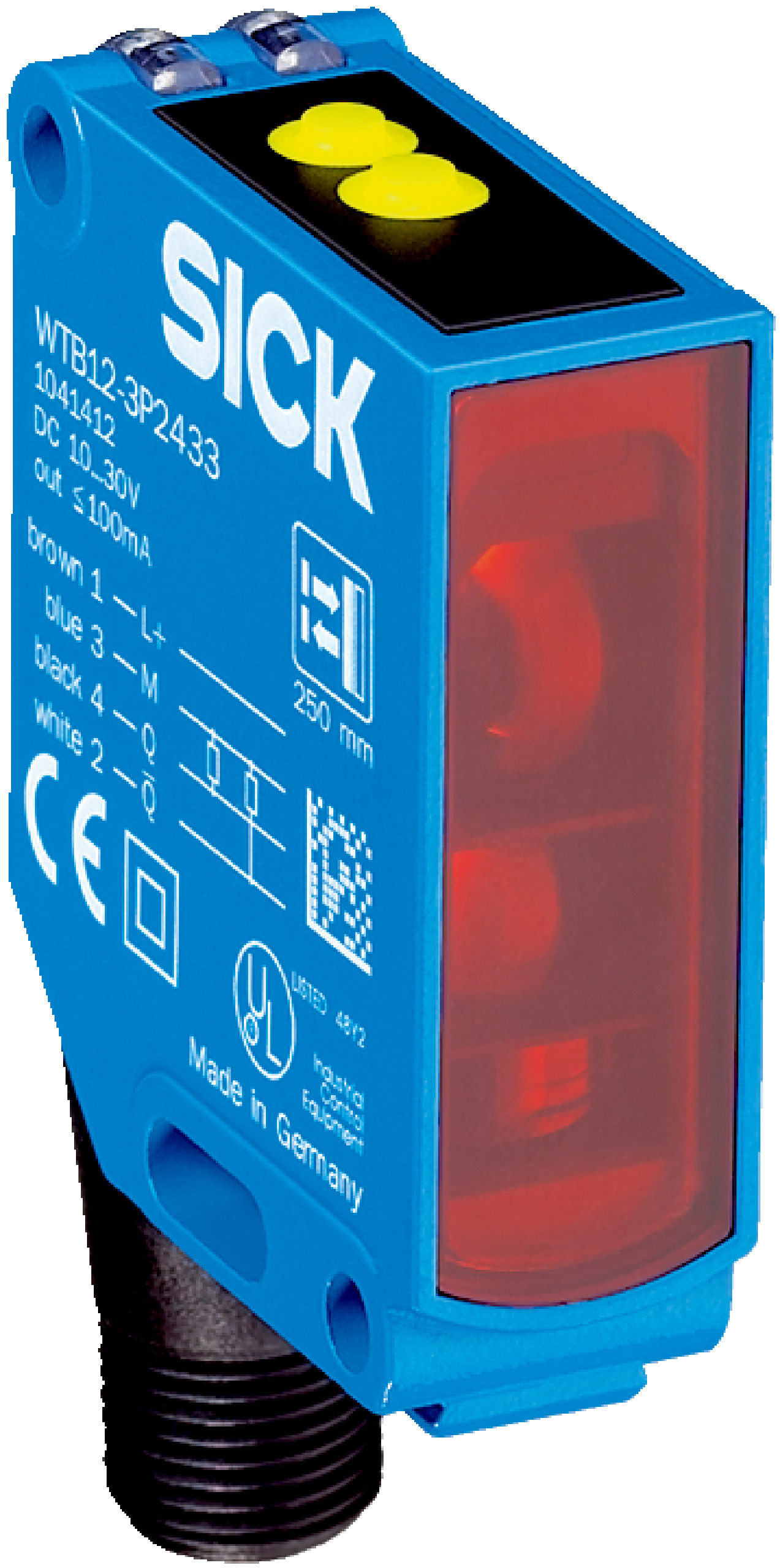

Photoelectric Proximity Sensor WTB12-3P2431 | Background Suppression | IP66/IP67/IP69K Rated | 20mm to 350mm Sensing Range | by SICK
The WTB12-3P2431 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 20 mm to 350 mm and a robust IP66/IP67/IP69K rating for harsh environments. With a visible red LED light source and a high switching frequency of 1,500 Hz, this sensor ensures reliable object detection and safety monitoring in manufacturing and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, PNP proximity switch, Industrial photo sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 20 mm to 350 mm
- Light source: LED, visible red light, wavelength 640 nm
- Light spot size: Ø 6 mm at 200 mm distance
- Adjustment: Potentiometer, 5 turns
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 45 mA
- Output type: PNP digital output, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 330 µs
- Switching frequency: 1,500 Hz
- Housing material: Metal with plastic PMMA front screen
- Connection: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 49mm x 42mm x 16mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 20 mm to 350 mm
- Visible red LED light source with 640 nm wavelength
- Potentiometer adjustment with 5 turns
- High switching frequency of 1,500 Hz
- Robust metal housing with plastic PMMA front screen
- Protection rating IP66, IP67, IP69K for harsh environments
- Operating temperature range from -40 °C to +60 °C
- Digital PNP output with light/dark switching mode
- Response time ≤ 330 µs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Long service life minimizes waste and replacement frequency
- Robust design reduces environmental impact from frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB12-3P2431 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
