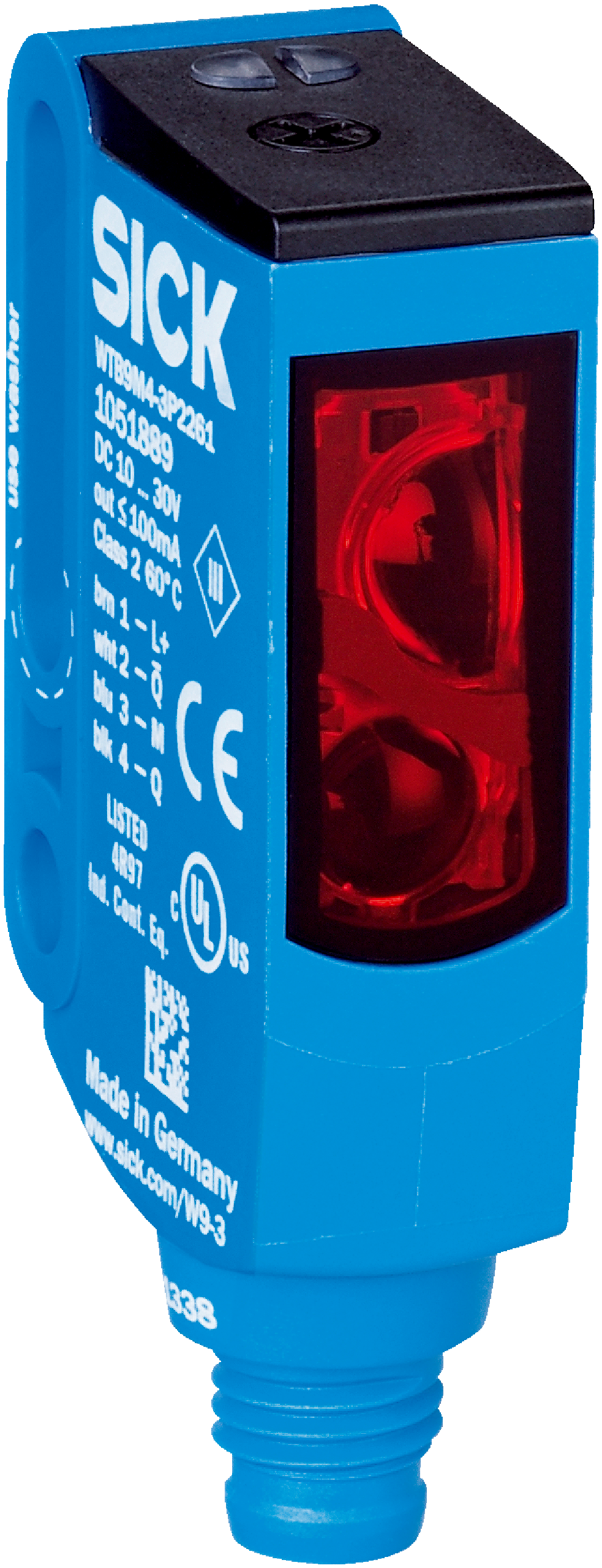

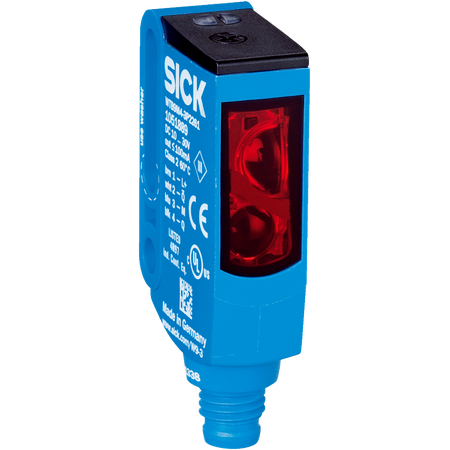

Photoelectric Proximity Sensor WTB9M4-3N2261 | Background Suppression | IP66/IP67/IP69K Rated | NPN Output | by SICK
The WTB9M4-3N2261 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and a high switching frequency of 1,500 Hz. With an IP66/IP67/IP69K enclosure rating, it ensures robust protection in harsh environments, making it ideal for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, Photo Prox Sensor, Industrial Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.333 ms
- Switching frequency: 1,500 Hz
- Connection type: Male connector M8, 4-pin
- Circuit protection: Types A, B, C
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Light source: PinPoint LED, 650 nm wavelength
- Light spot size: Ø 4.5 mm at 75 mm distance
- Adjustment: Potentiometer, 5 turns
- Dimensions (H x L x W): 49.8mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light emission
- Sensing range from 20 mm to 350 mm
- PinPoint LED light source with 650 nm wavelength
- Adjustment via 5-turn potentiometer
- High switching frequency of 1,500 Hz
- Enclosure rating IP66, IP67, and IP69K for robust protection
- Operating temperature range from -40 °C to +60 °C
- Plastic housing made of VISTAL® and optics made of PMMA
- NPN switching output with complementary function
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable design reduces waste and replacement frequency
- Complies with China RoHS and ECOLAB certificates ensuring environmental safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB9M4-3N2261 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
