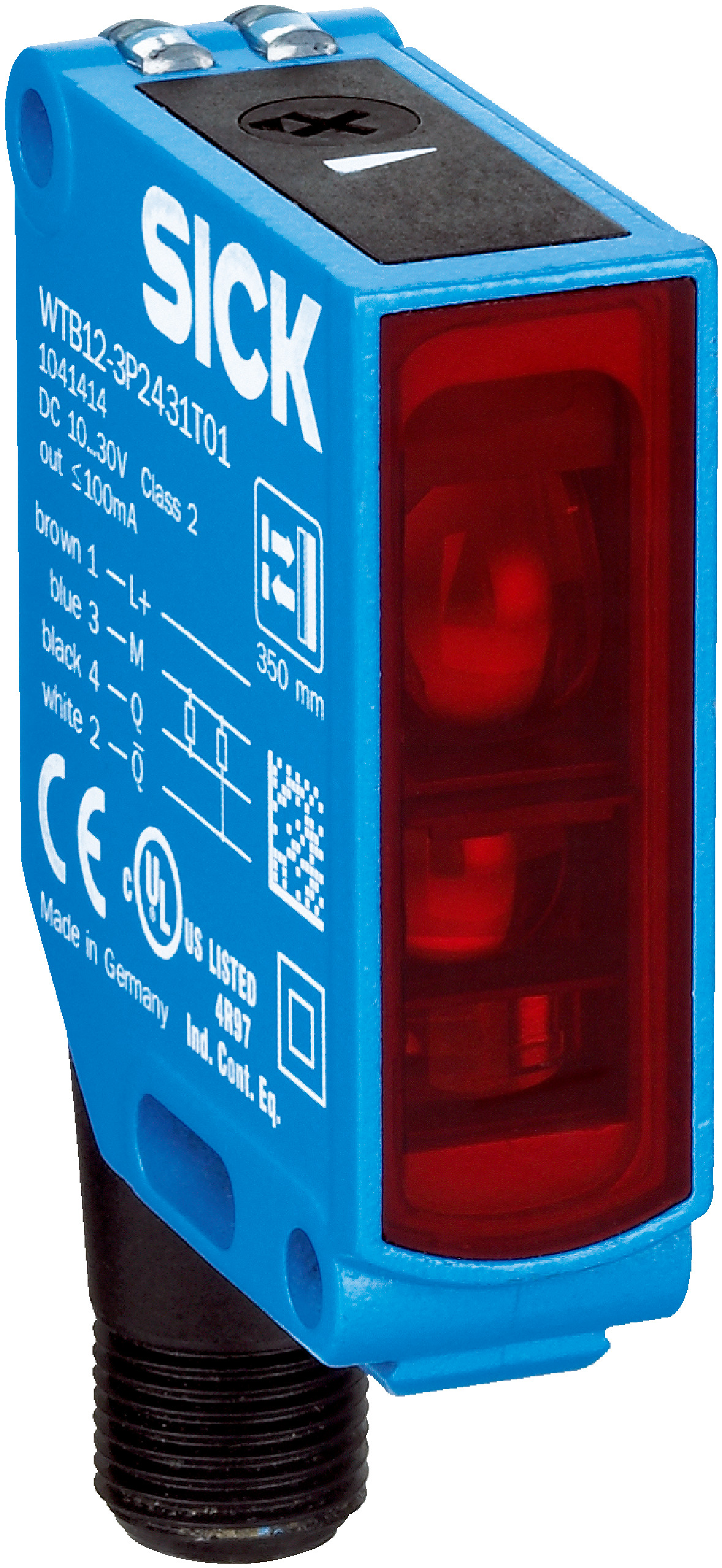

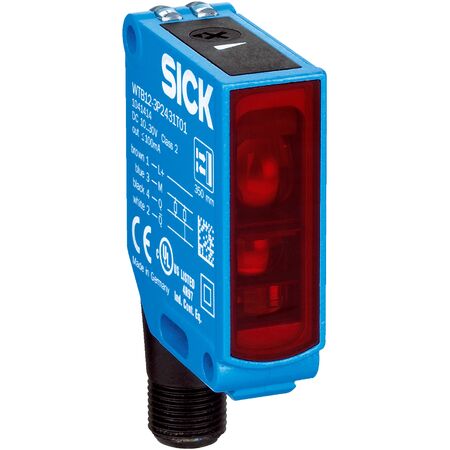

Photoelectric Proximity Sensor WTB12-3P2431T01 | Background Suppression | IP66/IP67/IP69K Rated | PNP Output | by SICK
The WTB12-3P2431T01 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 20 mm to 350 mm and a visible red LED light source. With robust IP66/IP67/IP69K ratings, it's perfect for hygienic zones and machine safety applications, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WTB12-3P2431T01 | Background Suppression | IP66/IP67/IP69K Rated | PNP Output | by SICK
Brand: SICK
SKU: 1041414
Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, PNP Proximity Sensor, Industrial Proximity Sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 20 mm to 350 mm
- Light source: LED, visible red light, wavelength 640 nm
- Light spot size: Ø 6 mm at 200 mm distance
- Adjustment: Potentiometer, 5 turns
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 45 mA
- Output type: PNP digital output, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 330 µs
- Switching frequency: 1,500 Hz
- Protection class: III
- Housing: Metal zinc diecast with PTFE coating
- Connection: Male connector M12, 4-pin
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Dimensions (H x L x W): 49mm x 42mm x 16mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 20 mm to 350 mm
- Visible red LED light source with 640 nm wavelength
- Potentiometer adjustment with 5 turns
- Housing made of metal zinc diecast with PTFE coating
- IP66, IP67, and IP69K rated for harsh environments
- Operating temperature range from -40°C to +60°C
- Digital PNP output with light/dark switching mode
- High switching frequency of 1,500 Hz and response time ≤ 330 µs
- Circuit protection types A, C, and D
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring robust sensors
- Machine safety and process control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable metal housing with PTFE coating extends product life reducing waste
- Energy-efficient LED light source minimizes power consumption
- Certified with China-RoHS and ECOLAB for environmental safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WTB12-3P2431T01 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
