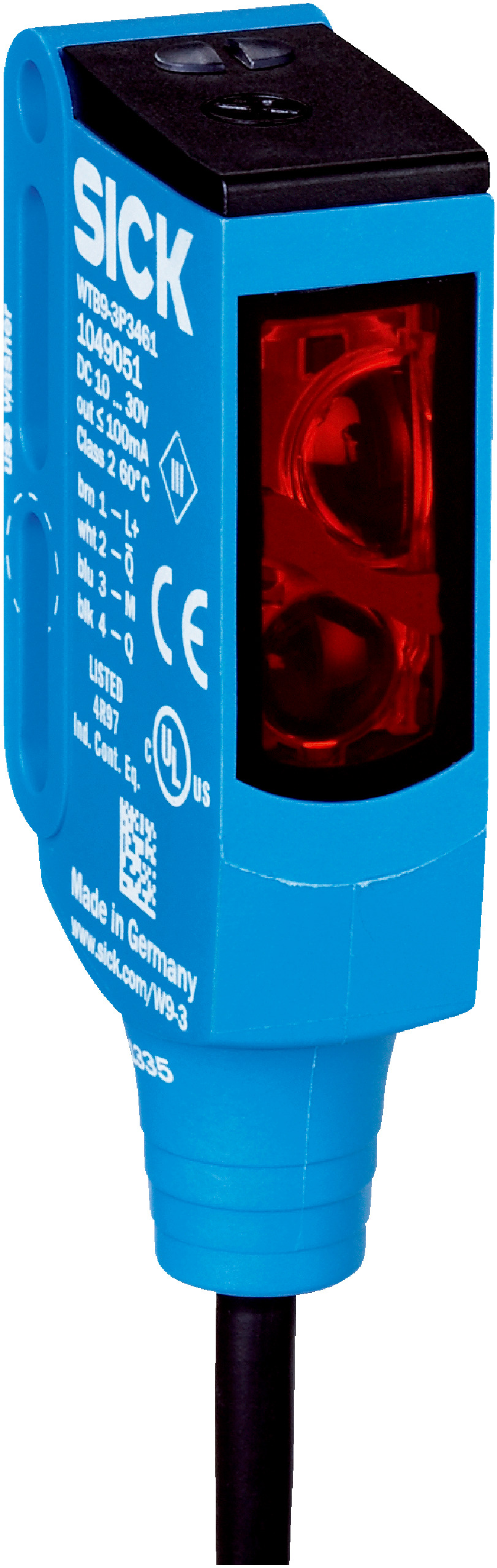

Photoelectric Proximity Sensor WTB9-3F3461S06 | Background Suppression | IP66/IP67/IP69K Rated | by SICK
The WTB9-3F3461S06 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of 20 mm to 350 mm and a high switching frequency of 1,500 Hz, it ensures reliable performance in manufacturing and safety applications. Its durable IP66/IP67/IP69K rated housing makes it perfect for harsh environments, while the visible red light emission enhances visibility during operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WTB9-3F3461S06 | Background Suppression | IP66/IP67/IP69K Rated | by SICK
Brand: SICK
SKU: 1051057
Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, SICK Proximity Sensor, Industrial Proximity Sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max.: 20 mm to 350 mm
- Type of light: Visible red light
- Light source: PinPoint LED
- Light spot size: Ø 4.5 mm at 75 mm distance
- Wave length: 650 nm
- Adjustment: Potentiometer, 5 turns
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Switching mode: Dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.333 ms
- Switching frequency: 1,500 Hz
- Connection type: Cable with M12 male connector, 4-pin, 120 mm
- Cable material: Plastic, PVC
- Conductor cross section: 0.14 mm²
- Circuit protection: A, B, C
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Ambient operating temperature: -40 °C to +60 °C
- Ambient storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light emission
- Sensing range from 20 mm to 350 mm
- PinPoint LED light source with 650 nm wavelength
- Potentiometer adjustment with 5 turns
- High switching frequency of 1,500 Hz
- Protection rating IP66, IP67, IP69K for harsh environments
- Operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP69K rated housing minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB9-3F3461S06 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
