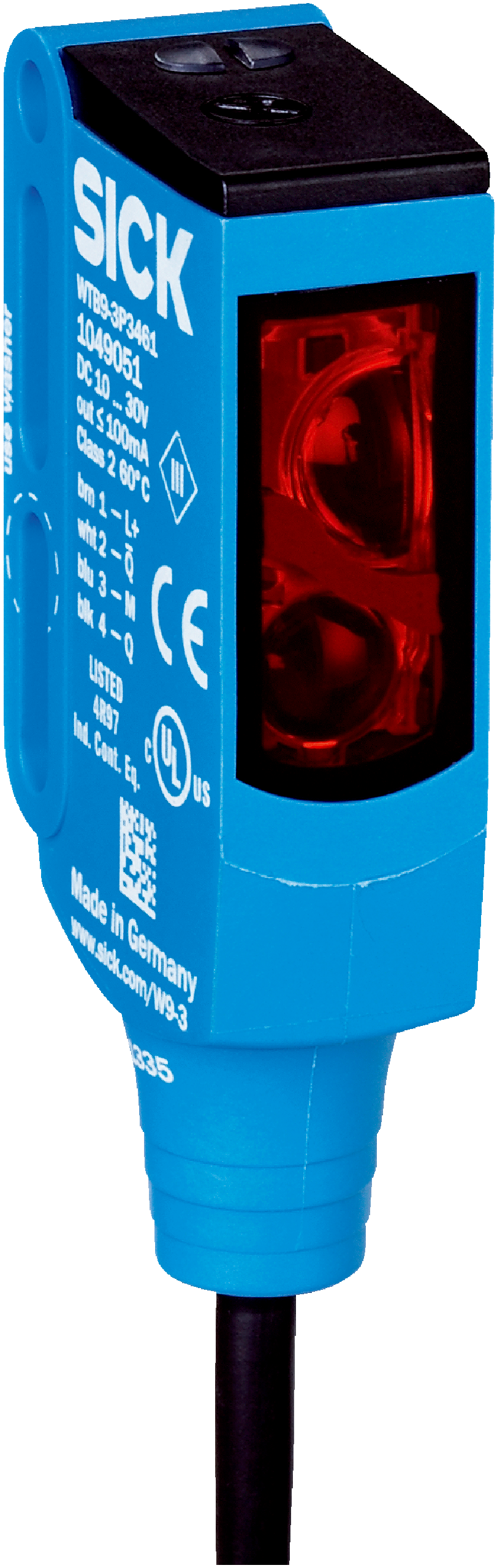

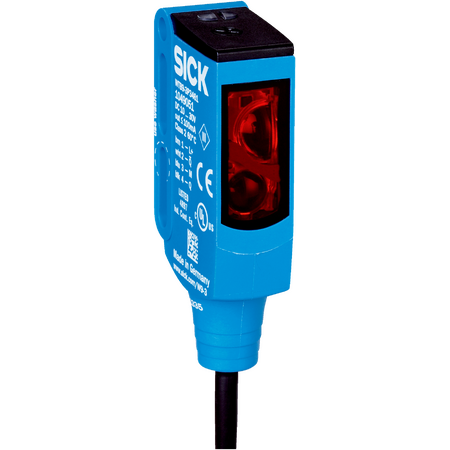

Photoelectric Proximity Sensor WTB9-3P3061S18 | Background Suppression | IP66/IP67/IP69K Rated | High Switching Frequency | by SICK
The WTB9-3P3061S18 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and a high switching frequency of 1,500 Hz. With an IP66/IP67/IP69K enclosure rating, it ensures robust protection in harsh environments, making it ideal for manufacturing process control and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Proximity sensor, Background suppression sensor, SICK proximity switch
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary function
- Switching mode: Light/dark switching
- Maximum output current: ≤ 100 mA
- Response time: < 0.333 ms
- Connection: Cable with M8 male connector, 4-pin, 200 mm
- Cable material: Plastic, PVC
- Conductor cross section: 0.14 mm²
- Circuit protection: Types A, B, C
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light emission
- Sensing range from 20 mm to 350 mm
- PinPoint LED light source with 650 nm wavelength
- Potentiometer adjustment with 5 turns
- High switching frequency of 1,500 Hz
- Enclosure rating IP66, IP67, IP69K for robust protection
- Operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper sensor setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Robotics and safety systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB9-3P3061S18 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
