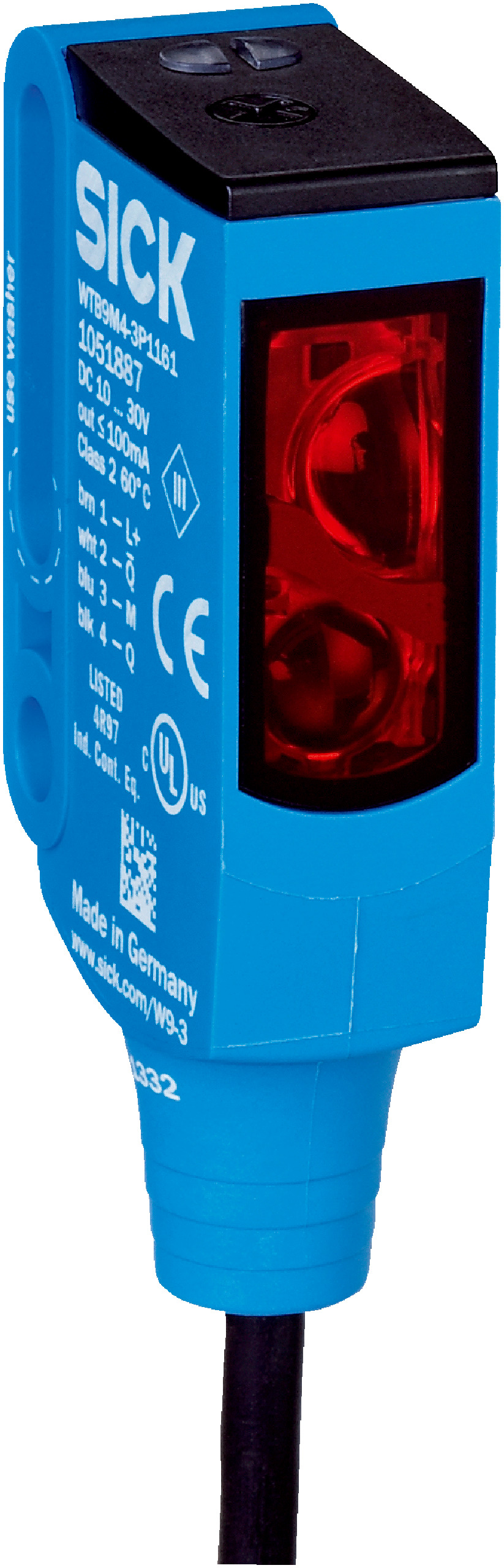

Photoelectric Proximity Sensor WTB9M4-3P3411 | Background Suppression | IP66/IP67/IP69K Rated | High Switching Frequency | by SICK
The WTB9M4-3P3411 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and a high switching frequency of 1,000 Hz. With an IP66/IP67/IP69K enclosure rating, it ensures reliable performance in harsh environments, making it ideal for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WTB9M4-3P3411 | Background Suppression | IP66/IP67/IP69K Rated | High Switching Frequency | by SICK
Brand: SICK
SKU: 1054430
Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, Infrared Proximity Sensor, Industrial Proximity Sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary function
- Switching mode: Light/dark switching
- Maximum output current: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Cable with M12 male connector, 4-pin, 120 mm
- Cable material: Plastic, PVC
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Weight: 13 g
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with M4 mounting hole
- Sensing range from 20 mm to 500 mm
- Infrared LED light source with 850 nm wavelength
- Potentiometer adjustment with 5 turns
- High switching frequency of 1,000 Hz
- Enclosure rating IP66, IP67, IP69K for harsh environments
- Operating temperature range from -40 °C to +60 °C
- Cable with M12 male connector, 4-pin, 120 mm length
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP69K rated housing minimizes waste through extended product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB9M4-3P3411 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
