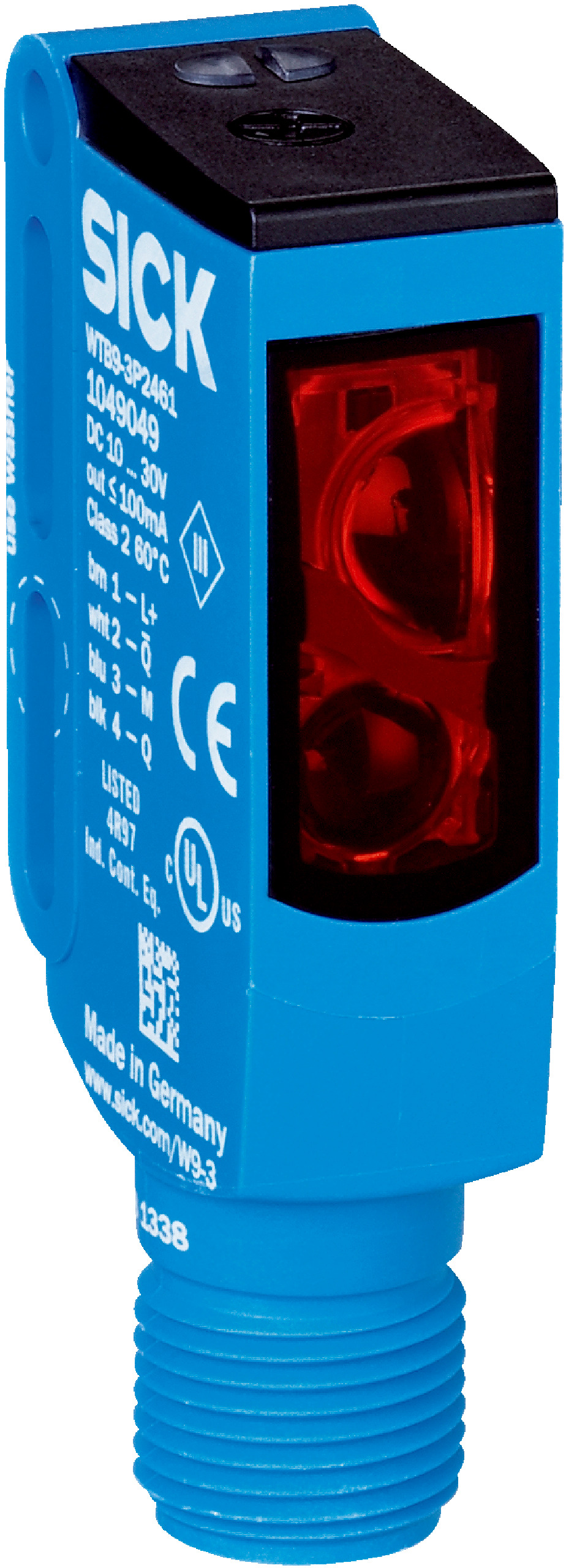

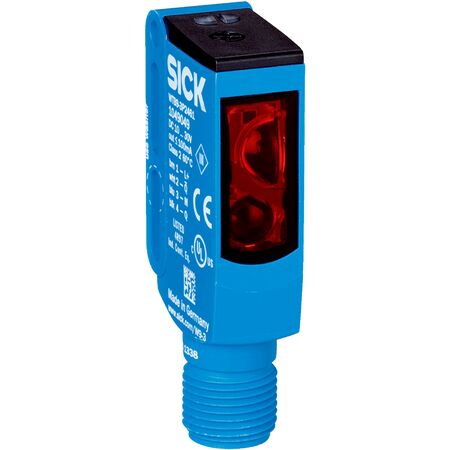

Photoelectric Proximity Sensor WTB9-3P2400S03 | Background Suppression | IP66/IP67/IP69K Rated | by SICK
The WTB9-3P2400S03 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and a sensing range of up to 98 mm. With a high switching frequency of 1,500 Hz and IP66/IP67/IP69K ratings, it excels in harsh environments, making it ideal for manufacturing process control and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WTB9-3P2400S03 | Background Suppression | IP66/IP67/IP69K Rated | by SICK
Brand: SICK
SKU: 1054717
Alternatively Known As: Photoelectric sensor, Proximity sensor, Background suppression sensor, PNP sensor, Industrial sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max.: 98 mm
- Type of light: Visible red light
- Light source: PinPoint LED
- Light spot size: Ø 4.5 mm at 75 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.333 ms
- Switching frequency: 1,500 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, B, C
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light emission
- Sensing range up to 98 mm
- PinPoint LED light source with 650 nm wavelength
- High switching frequency of 1,500 Hz
- IP66, IP67, and IP69K rated for harsh environments
- Operating temperature range from -40 °C to +60 °C
- Complementary PNP output with light/dark switching mode
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging machinery
- Material handling systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP69K housing reduces waste by extending product lifespan
- Low power consumption of 30 mA supports energy efficiency
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB9-3P2400S03 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring precise object detection.
