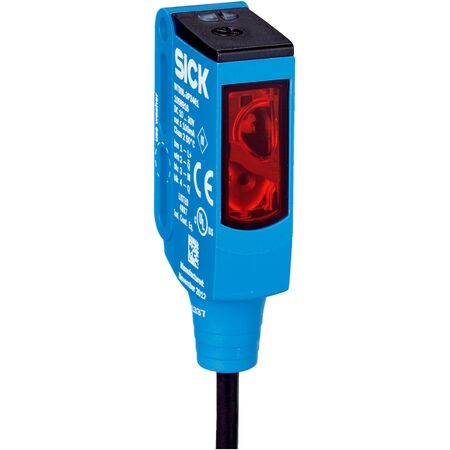

Photoelectric Proximity Sensor WTB9L-3P3461 | Background Suppression | IP66/IP67/IP69K Rated | Fast Response Time | by SICK
The WTB9L-3P3461 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 25 mm to 300 mm and a visible red laser light source. With an impressive response time of ≤ 0.5 ms and IP66/IP67/IP69K protection ratings, this sensor is perfect for detecting small objects in manufacturing and material handling applications, ensuring reliability and efficiency in your processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 25 mm to 300 mm
- Light source: Visible red laser, 650 nm wavelength, Laser class 1
- Adjustment: 5-turn potentiometer
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output: PNP complementary, max 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Cable with M12 male connector, 4-pin, 120 mm
- Housing material: Plastic VISTAL®, Optics material: Plastic PMMA
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -10 °C to +50 °C (extended -30 °C to +55 °C)
- Storage temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red laser light source with 650 nm wavelength
- Sensing range from 25 mm to 300 mm
- Rectangular plastic housing with IP66, IP67, and IP69K protection ratings
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Complementary PNP output with light/dark switching mode
- Adjustable sensitivity via 5-turn potentiometer
- Cable with M12 male connector, 4-pin, 120 mm length
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for detecting small objects
- Manufacturing process control
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable IP66/IP67/IP69K rated housing reduces waste by extending product life
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB9L-3P3461 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
