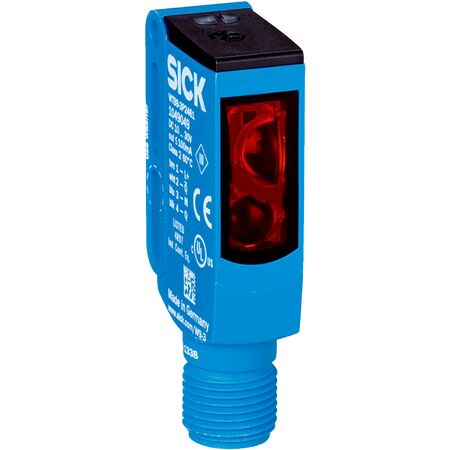

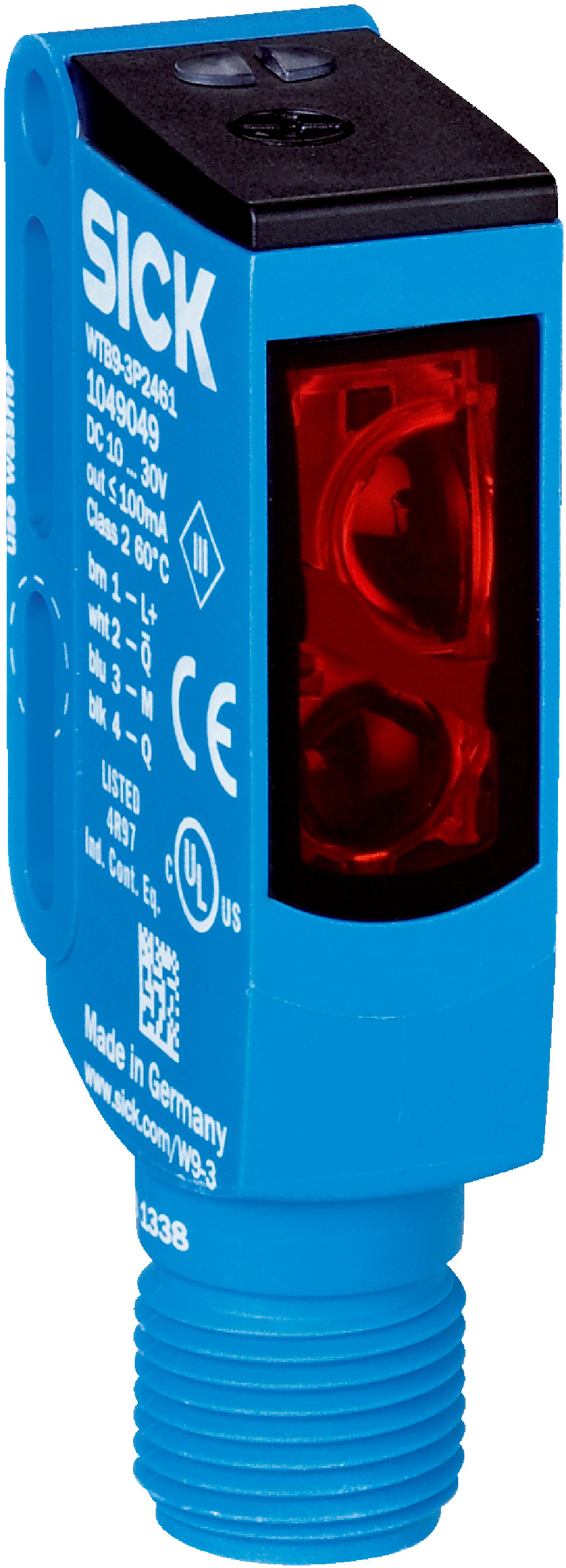

Photoelectric Proximity Sensor WTB9-3P2411S09 | Background Suppression | IP66/IP67/IP69K Rated | High Switching Frequency | by SICK
The WTB9-3P2411S09 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and a high switching frequency of 500 Hz. With an operating temperature range of -40 °C to +60 °C and robust IP66/IP67/IP69K ratings, this sensor is perfect for object detection in manufacturing and material handling applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary function
- Switching mode: Light/dark switching
- Maximum output current: ≤ 100 mA
- Response time: < 1 ms
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, B, C
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Light spot size at 250 mm: Ø 20 mm
- Wave length: 850 nm
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with printed front screen for increased blind zone
- Sensing range from 20 mm to 350 mm
- Infrared LED light source with 850 nm wavelength
- Potentiometer adjustment with 5 turns
- High switching frequency of 500 Hz and response time under 1 ms
- IP66, IP67, and IP69K rated for robust protection
- Operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing materials extend product lifespan, reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The SICK WTB9-3P2411S09 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
