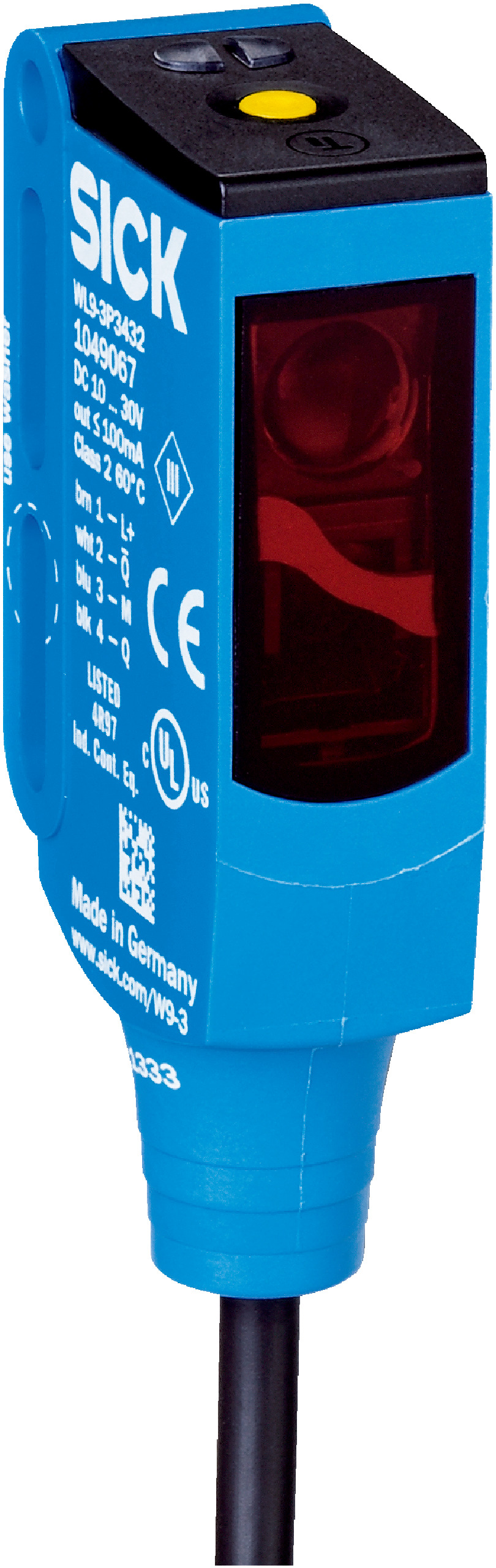

Photoelectric Proximity Sensor | Background Suppression | IP66/IP67/IP69K Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor WTB9C-3P1162A00 is designed for industrial automation, featuring background suppression and a sensing range of 20 mm to 350 mm. With a fast response time of under 0.333 ms and IP66/IP67/IP69K protection ratings, it's perfect for manufacturing process control and safety monitoring in machinery. Built for durability and efficiency, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Output current max: ≤ 100 mA
- Response time: < 0.333 ms
- Switching frequency: up to 1500 Hz
- Light source: PinPoint LED, 650 nm wavelength
- Sensing range max: 20 mm to 350 mm
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Cable: 4-wire, 2 m PVC
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Communication: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light PinPoint LED with 650 nm wavelength
- Sensing range from 20 mm to 350 mm
- Rectangular plastic housing with IP66, IP67, and IP69K protection ratings
- IO-Link V1.1 communication interface with 2.3 ms cycle time
- Fast response time under 0.333 ms and switching frequency up to 1500 Hz
- Complementary PNP output with light/dark switching mode
- Operating temperature range from -40 °C to +60 °C
- Cable connection with 4-wire, 2 m PVC cable
- Multiple logic and timer functions including AND, OR, hysteresis, and delays
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and IO-Link communication protocols to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation reduces power consumption
- Durable IP69K rated housing minimizes environmental damage and extends product life
- Complies with China-RoHS and ECOLAB certifications ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB9C-3P1162A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
