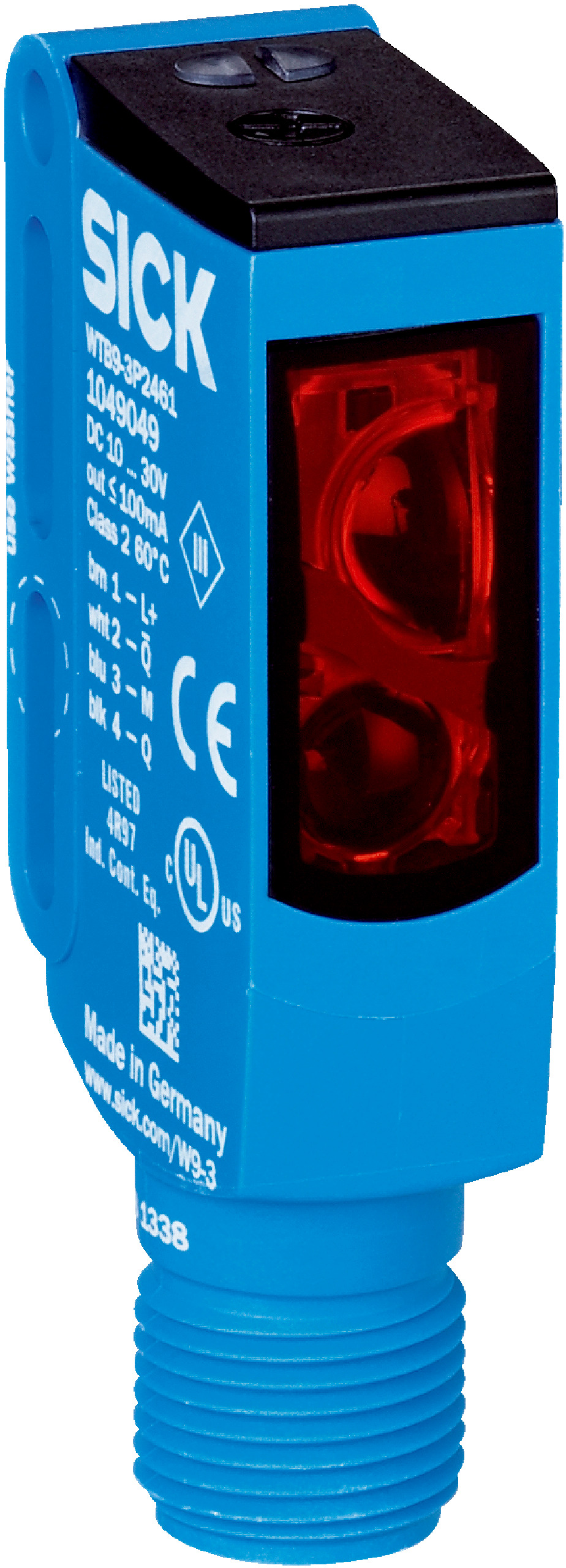

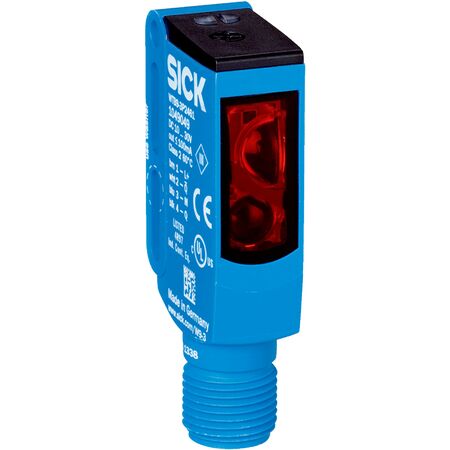

Photoelectric Proximity Sensor WTB9-3P2411P10 | Background Suppression | IP66/IP67/IP69K Rated | Fast Response Time | by SICK
The WTB9-3P2411P10 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 20 mm to 800 mm and a fast response time of under 2.5 ms. With its robust IP66/IP67/IP69K protection rating, this sensor is perfect for object detection and safety monitoring in harsh environments, ensuring reliable performance in manufacturing and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max: 20 mm to 800 mm
- Type of light: Infrared LED at 850 nm wavelength
- Light spot size: Ø 40 mm at 400 mm distance
- Adjustment: Potentiometer, 5 turns
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 2.5 ms
- Switching frequency: 200 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, B, C
- Protection class: III
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Enclosure rating: IP66, IP67, IP69K
- Ambient operating temperature: –40 °C to +60 °C
- Storage temperature: –40 °C to +75 °C
- MTTFD: 896 years
- Mission time: 20 years
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with infrared LED light source
- Adjustable sensing range from 20 mm to 800 mm
- Potentiometer adjustment with 5 turns
- High protection rating: IP66, IP67, IP69K
- Fast response time under 2.5 ms
- Light/dark switching mode with complementary PNP output
- Robust plastic VISTAL® housing and PMMA optics
- Pre-mounted on BEF-KHS-ISG6 mounting system
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper mounting, wiring, and configuration.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable design reduces waste and replacement frequency
- High ingress protection extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB9-3P2411P10 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
