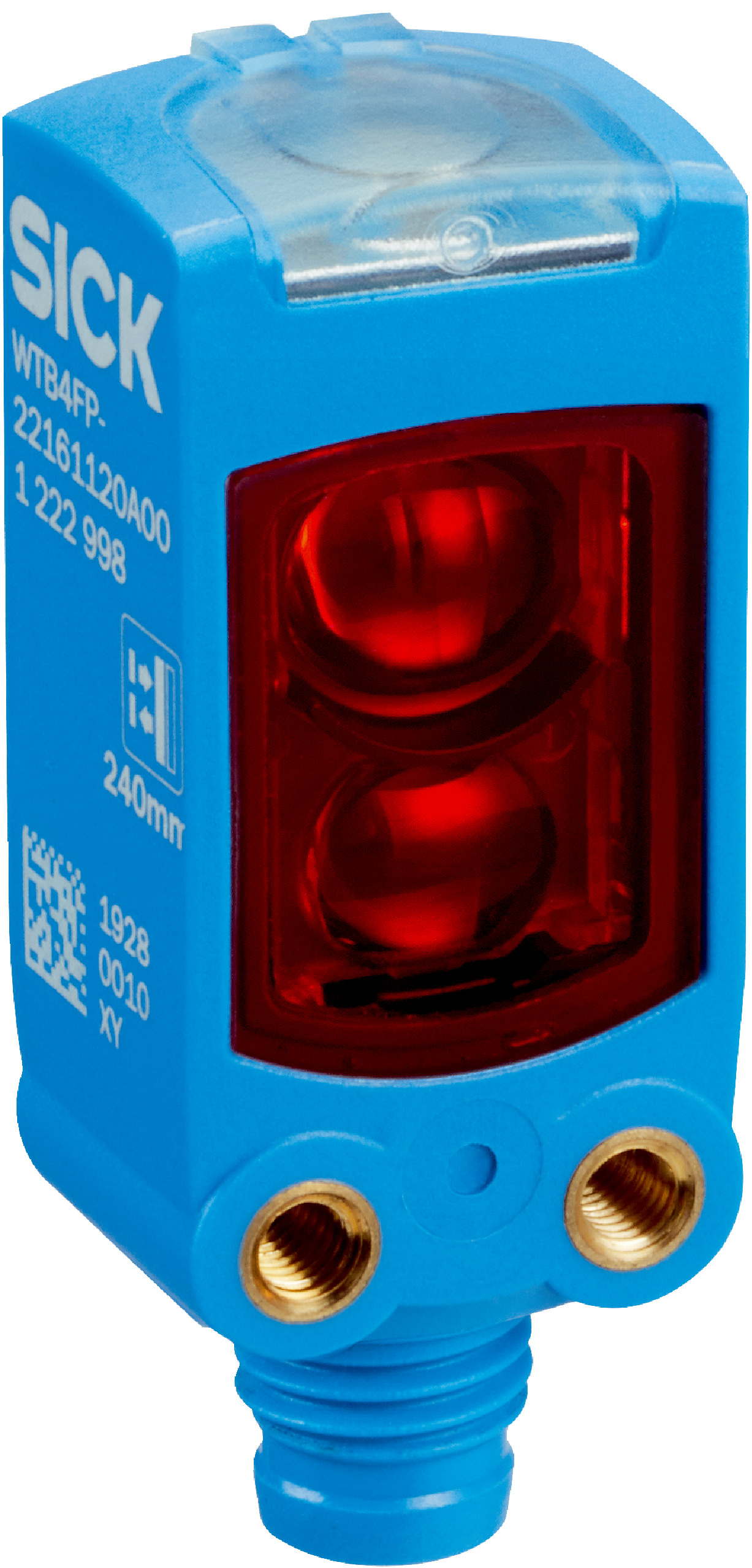

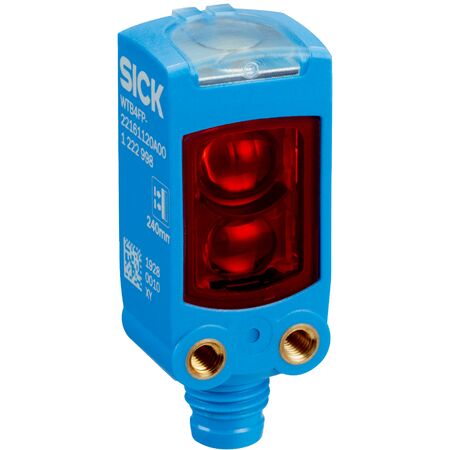

Photoelectric Proximity Sensor WTB4FP-213111A0ZZZ | Background Suppression | IP66/IP67 Rated | MultiPulse Technology | by SICK
The WTB4FP-213111A0ZZZ Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of 28 mm to 165 mm and background suppression technology, it ensures reliable performance in various applications. Its robust IP66/IP67 rated housing protects against dust and water, making it ideal for manufacturing and packaging processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and MultiPulse
- Sensing range: 28 mm to 165 mm
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Smallest detectable object: 0.2 mm at 130 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 25 mA without load at 24 V
- Output type: Push-pull PNP/NPN digital output, max 100 mA
- Response time: ≤ 0.5 s
- Repeatability: 150 µs
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Housing material: Plastic VISTAL®
- Connection: M8, 3-pin connector
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and MultiPulse technology
- Sensing range from 28 mm to 165 mm with high precision
- PinPoint LED visible red light with a wavelength of 635 nm
- Smallest detectable object size of 0.2 mm at 130 mm distance
- Robust plastic VISTAL® housing with flat design
- IP66 and IP67 rated for dust and water protection
- Operating temperature range from -40 °C to +60 °C
- LED indicators for power and object detection status
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 25 mA)
- Robust design minimizes environmental impact through durability and reduced maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB4FP-213111A0ZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
