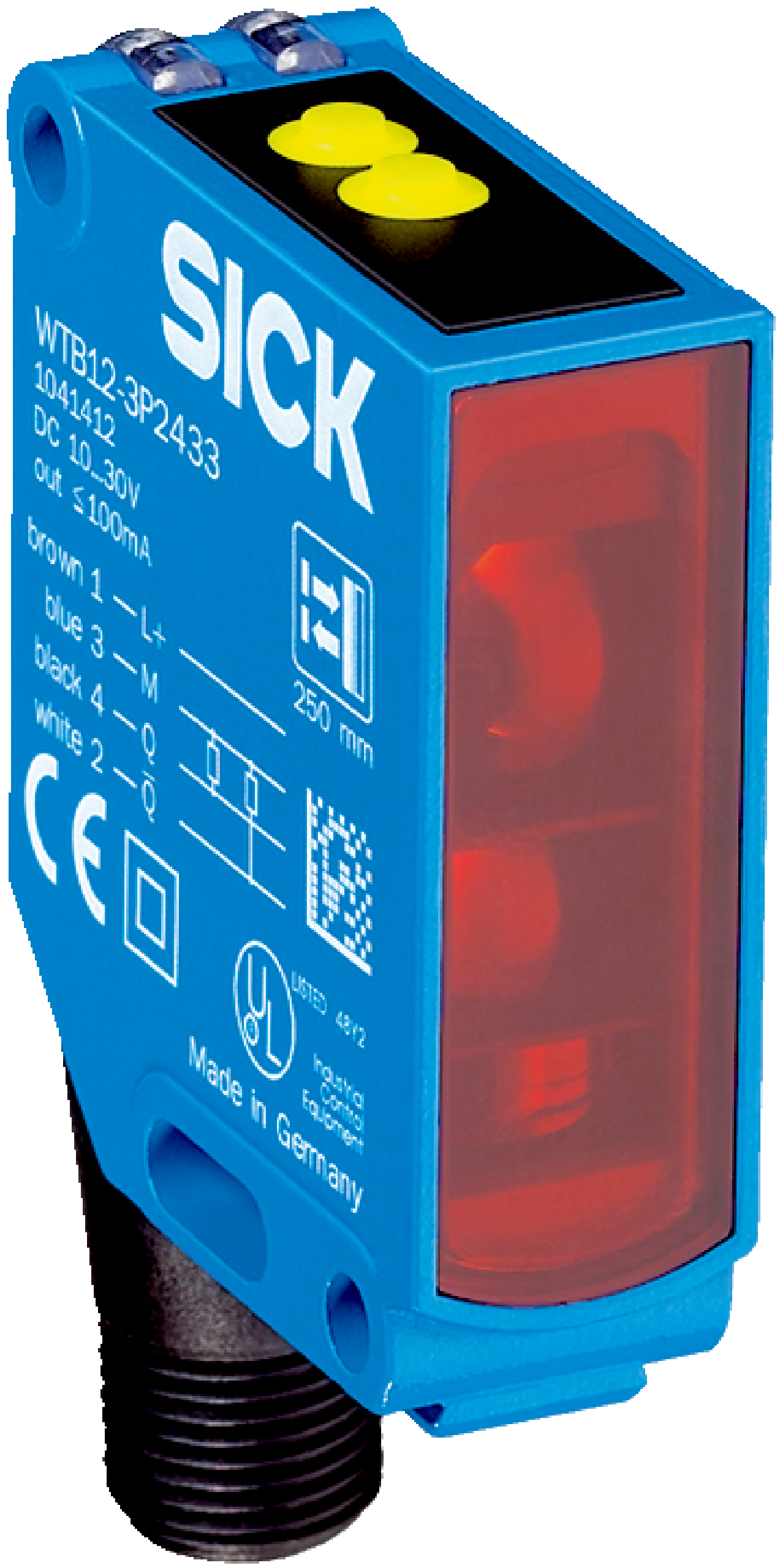

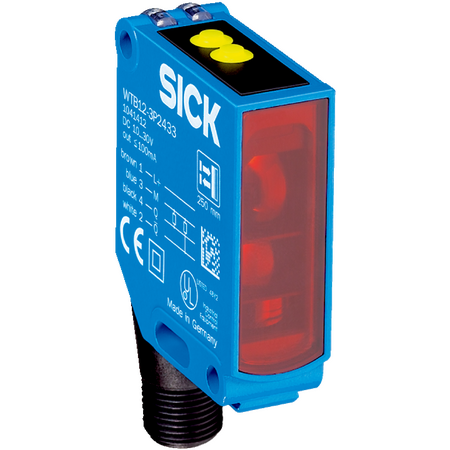

Photoelectric Proximity Sensor WTB12-3P2413 | Background Suppression | IP66 & IP67 Rated | Fast Response Time | by SICK
The WTB12-3P2413 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 20 mm to 600 mm and an infrared LED light source. With IP66 and IP67 ratings for dust and water protection, this sensor ensures reliable performance in manufacturing and material handling applications, making it ideal for safety and monitoring in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, Infrared Proximity Sensor, PNP Proximity Sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 20 mm to 600 mm
- Light source: Infrared LED, wavelength 850 nm
- Light spot size at 200 mm: 15 mm x 15 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 55 mA
- Output type: PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 330 µs
- Switching frequency: 1,500 Hz
- Protection class: III
- Enclosure rating: IP66, IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Connection: Male M12, 4-pin connector
- Housing material: Metal with plastic PMMA front screen
- Dimensions (H x L x W): 49mm x 42mm x 16mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 20 mm to 600 mm
- Infrared LED light source with 850 nm wavelength
- Double teach-in button for easy adjustment
- Metal housing with plastic PMMA front screen
- IP66 and IP67 rated for dust and water protection
- Fast response time of ≤ 330 µs and switching frequency of 1,500 Hz
- PNP output with light/dark switching mode
- Complementary output function with circuit protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling systems
- Safety and monitoring in machinery
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB12-3P2413 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
