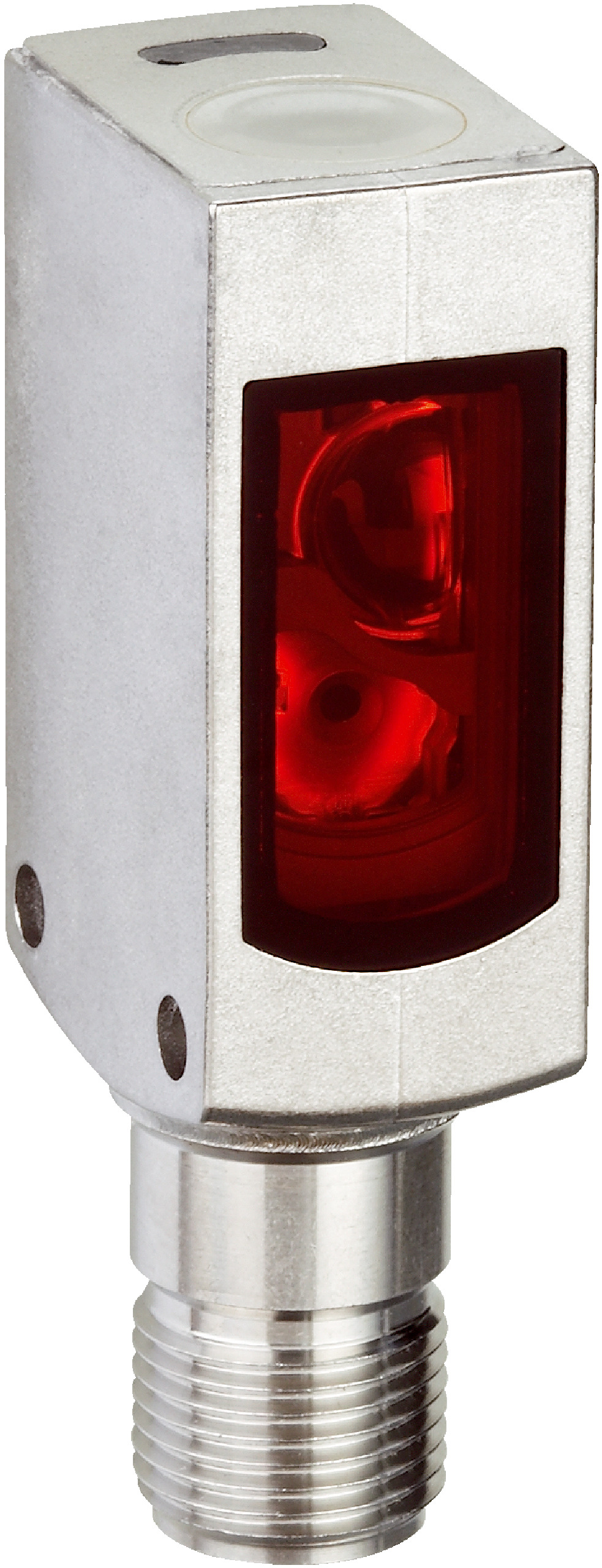

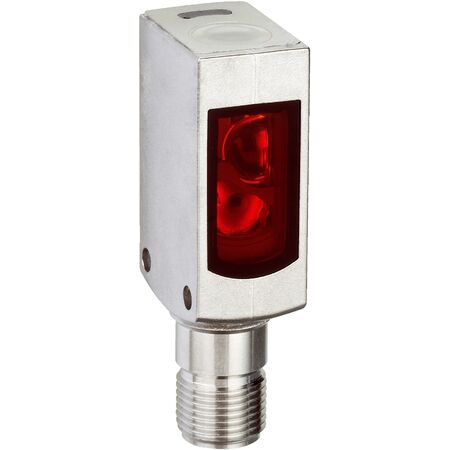

Photoelectric Proximity Sensor WTB4S-3P3464V | Background Suppression | IP66 to IP69K | Slim Stainless Steel Design | by SICK
The WTB4S-3P3464V Photoelectric Proximity Sensor is engineered for precision in industrial automation, featuring a sensing range of 10 mm to 350 mm and a robust IP66 to IP69K protection rating. With its durable stainless steel housing and fast response time under 0.5 ms, this sensor is perfect for hygienic and washdown applications, ensuring reliable object detection in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WTB4S-3P3464V | Background Suppression | IP66 to IP69K | Slim Stainless Steel Design | by SICK
Brand: SICK
SKU: 1048015
Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, SICK Proximity Sensor, Washdown Proximity Sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 350 mm (typical), max 4 mm to 500 mm
- Light source: PinPoint LED, visible red light, wavelength 650 nm
- Adjustment: Cable and single teach-in button
- Housing: Metal, stainless steel V4A (1.4404, 316L), slim design
- Connection: Cable with M12 male connector, 4-pin, 150 mm length
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP, light switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- Circuit protection: Types A, B, C
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 10 mm to 350 mm, max 4 mm to 500 mm
- PinPoint LED visible red light with 650 nm wavelength
- Slim stainless steel V4A housing for durability and washdown suitability
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
- Cable with M12 male connector, 4-pin, 150 mm length
- Circuit protection types A, B, and C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring robust sensors
- Background suppression sensing in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
- High protection ratings reduce environmental damage and sensor failure
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK WTB4S-3P3464V Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
