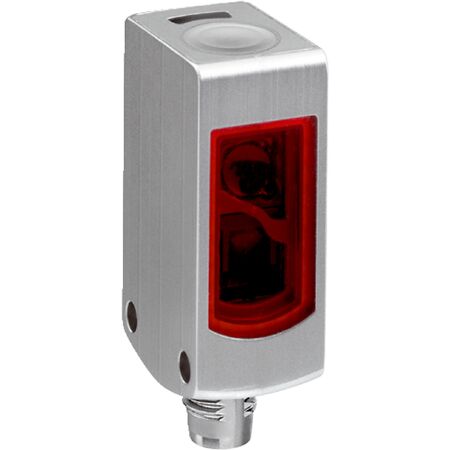

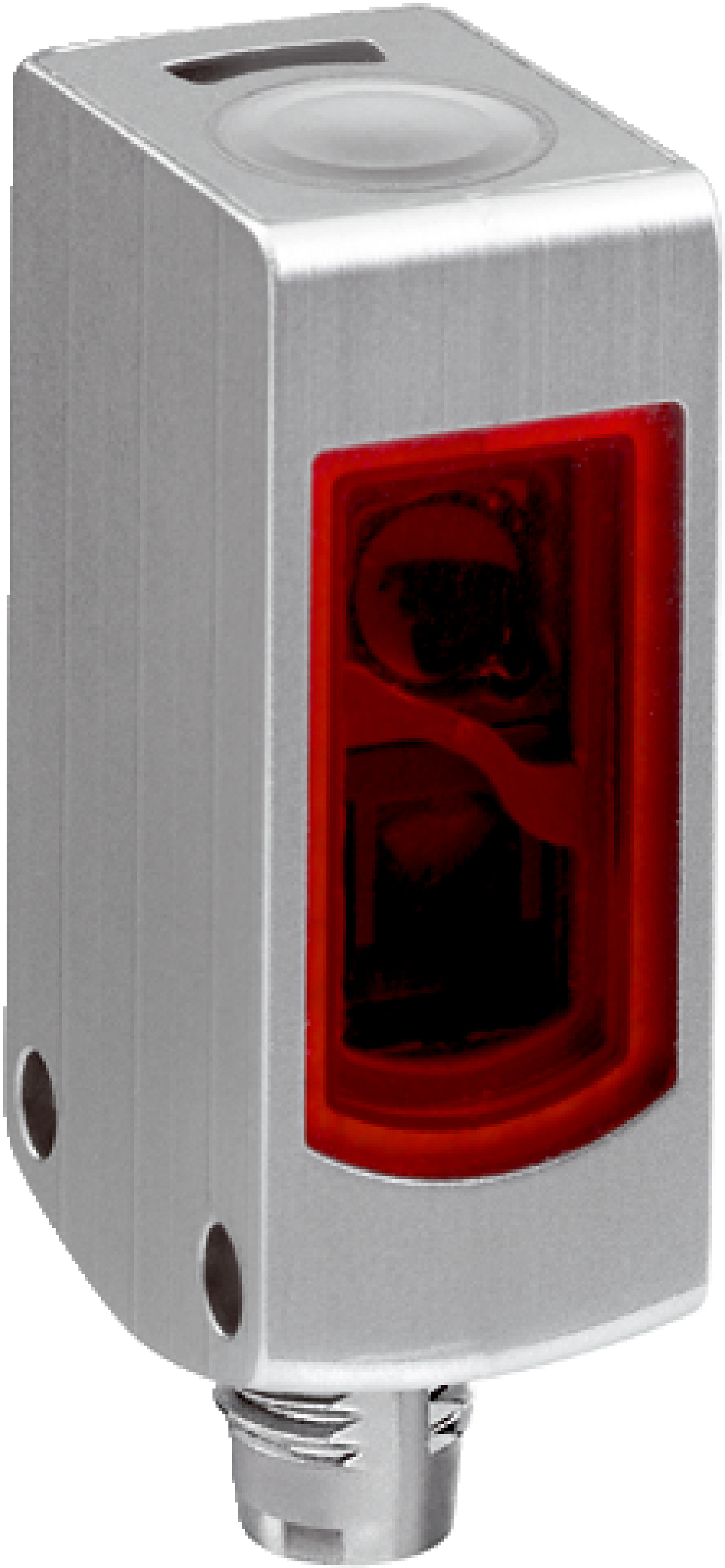

Photoelectric Proximity Sensor WTB4SC-3P2262VB01 | Background Suppression | IP66/IP69K Rated | Stainless Steel Housing | by SICK
The WTB4SC-3P2262VB01 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 10 mm to 350 mm and robust IP66/IP69K protection. With a PinPoint LED light source and a single teach-in button for easy adjustment, this sensor is perfect for hygienic washdown environments and machine safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 350 mm (standard), max 4 mm to 500 mm
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Adjustment: Single teach-in button
- Housing: Metal stainless steel V4A (1.4404, 316L), front screen plastic PMMA
- Protection rating: IP66, IP67, IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP digital output, light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Communication: IO-Link COM2 (38.4 kBaud), cycle time 2.3 ms
- Operating temperature: -30 °C to +70 °C
- Weight: 40 g
- Connection: Male M8, 4-pin connector
- Dimensions (H x L x W): 45mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 10 mm to 350 mm, max 4 mm to 500 mm
- PinPoint LED visible red light with 650 nm wavelength
- Single teach-in button for easy adjustment
- Housing designed for washdown environments
- Metal stainless steel V4A housing with plastic PMMA front screen
- IP66, IP67, IP68, IP69K rated for robust protection
- Digital PNP output with light/dark switching mode
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
- IO-Link communication interface with 38.4 kBaud data rate
- Supports multiple logic and timer functions
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment, wiring, and configuration for optimal performance and safety.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Machine safety and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
- Complies with China-RoHS and ECOLAB certifications ensuring environmental safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WTB4SC-3P2262VB01 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and hygienic washdown applications.
