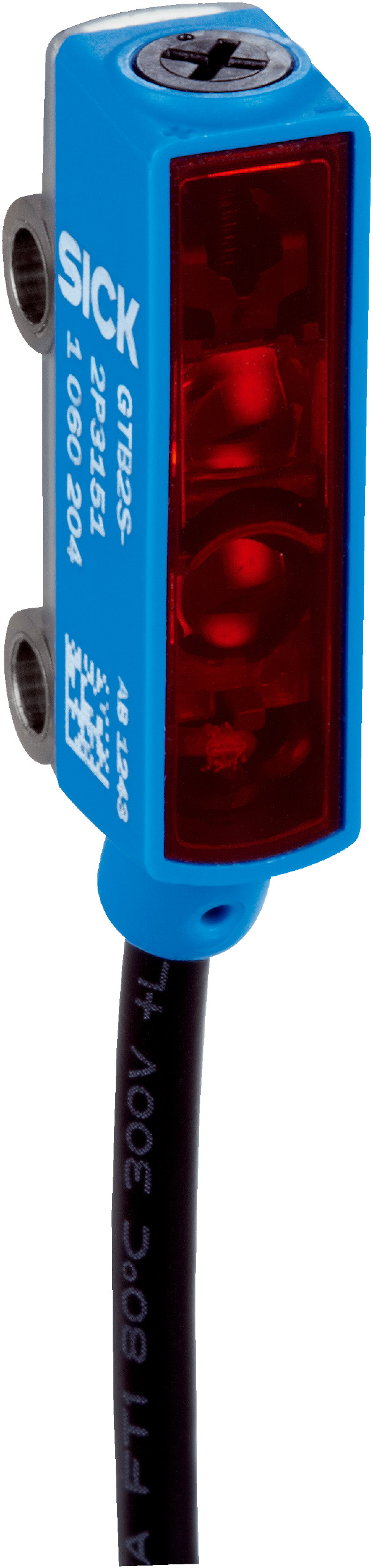

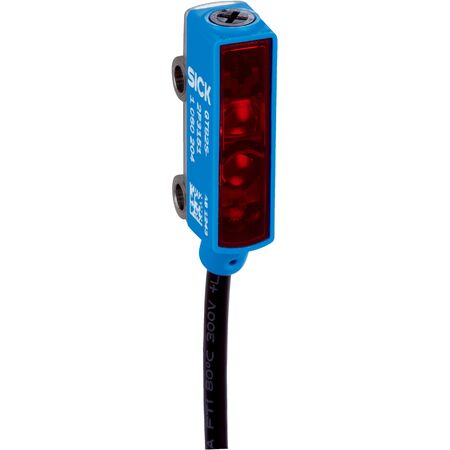

Photoelectric Proximity Sensor GTB2S-P0451S16 | Background Suppression | IP67 Rated | 25mm to 90mm Sensing Range | by SICK
The Photoelectric Proximity Sensor GTB2S-P0451S16 is designed for precise object detection in industrial automation, featuring a sensing range of 25 mm to 90 mm and a background suppression capability. With a high switching frequency of 800 Hz and an IP67 rated enclosure, it ensures reliable performance in challenging environments, making it ideal for manufacturing process control and safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 25 mm to 90 mm
- Light source: PinPoint LED, 640 nm wavelength
- Adjustment: Potentiometer, 3 turns
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 50 mA
- Response time: < 0.6 ms
- Switching frequency: 800 Hz
- Connection type: Cable with JST 3-pin connector, 60 mm length
- Cable diameter: 3 mm, PVC material
- Housing material: Plastic ABS, Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25°C to +50°C
- Storage temperature: -40°C to +75°C
- Circuit protection: Types A, C, D
- Weight: 18 g
- Dimensions (H x L x W): 27.5mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light
- Sensing range from 25 mm to 90 mm
- PinPoint LED light source with 640 nm wavelength
- Potentiometer adjustment with 3 turns
- High switching frequency of 800 Hz
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +50°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Robotics and material handling
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Long operational life with MTTFD of 3,138 years
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK GTB2S-P0451S16 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
