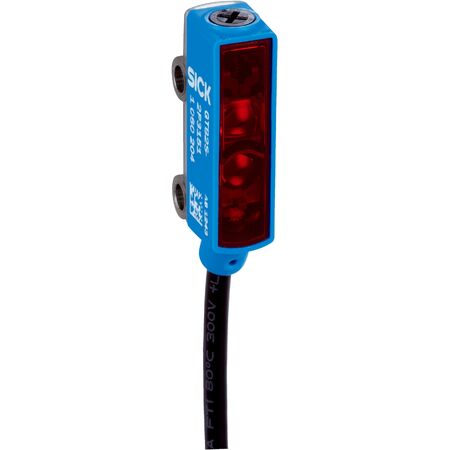

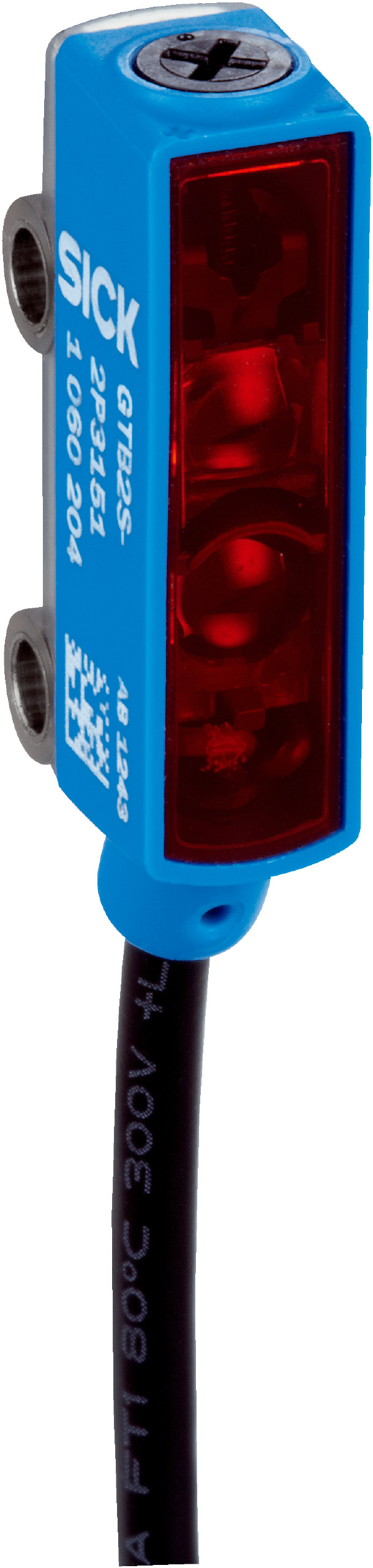

Photoelectric Proximity Sensor GTB2S-N1451 | Background Suppression | IP67 Rated | 2 mm to 120 mm Sensing Range | by SICK
The Photoelectric Proximity Sensor GTB2S-N1451 is designed for precise object detection in industrial automation, featuring a sensing range of 2 mm to 120 mm and background suppression technology. With a high switching frequency of 800 Hz and a response time under 0.6 ms, this sensor is perfect for manufacturing process control and safety monitoring in machinery, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max: 2 mm to 120 mm
- Type of light: Visible red light, wavelength 640 nm
- Light source: PinPoint LED
- Light spot size: Ø 3.5 mm at 50 mm distance
- Adjustment: Potentiometer, 3 turns
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: 20 mA
- Switching output: NPN
- Switching mode: Light switching
- Output current max: ≤ 50 mA
- Response time: < 0.6 ms
- Switching frequency: 800 Hz
- Connection type: Cable, 3-wire, 2 m length
- Cable material: Plastic, PVC
- Cable diameter: Ø 3 mm
- Circuit protection: Types A, C, D
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- UL File No.: NRKH.E181493
- Dimensions (H x L x W): 27.5mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light emission
- Sensing range from 2 mm to 120 mm
- PinPoint LED light source with 640 nm wavelength
- Adjustable potentiometer with 3 turns
- NPN switching output with light switching mode
- High switching frequency of 800 Hz and response time under 0.6 ms
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +50°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Robotics and material handling
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GTB2S-N1451 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
