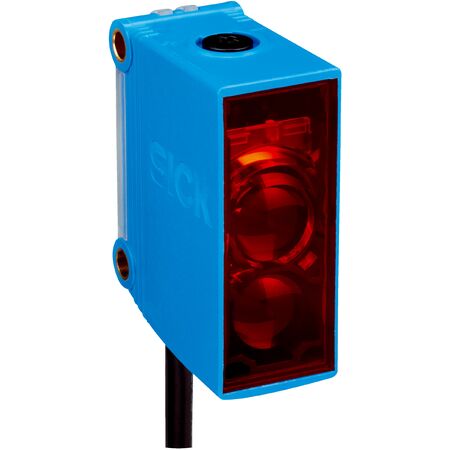

Photoelectric Proximity Sensor GTB10-P0421S07 | Background Suppression | IP67 Rated | 400 mm Sensing Range | by SICK
The Photoelectric Proximity Sensor GTB10-P0421S07 is designed for industrial automation, featuring background suppression and a sensing range of up to 400 mm. With a high switching frequency of 1,000 Hz and an IP67 rated enclosure, it ensures reliable operation in challenging environments. Ideal for manufacturing process control and material handling, this sensor is built to enhance safety and efficiency in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: ≤ 400 mm
- Type of light: Infrared LED (850 nm wavelength)
- Light spot size: Ø 22 mm at 700 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, light switching mode
- Maximum output current: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection: Cable with 6-pin JST EHR connector, 350 mm length
- Housing material: Plastic (ABS/PMMA)
- Protection class: III
- Enclosure rating: IP67
- Electromagnetic compatibility: EN 60947-5-2
- Operating temperature range: -30°C to +60°C
- Storage temperature range: -40°C to +70°C
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with infrared LED light source
- Sensing range up to 400 mm
- Fixed adjustment for reliable operation
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -30°C to +60°C
- Cable with 6-pin JST EHR connector included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GTB10-P0421S07 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
