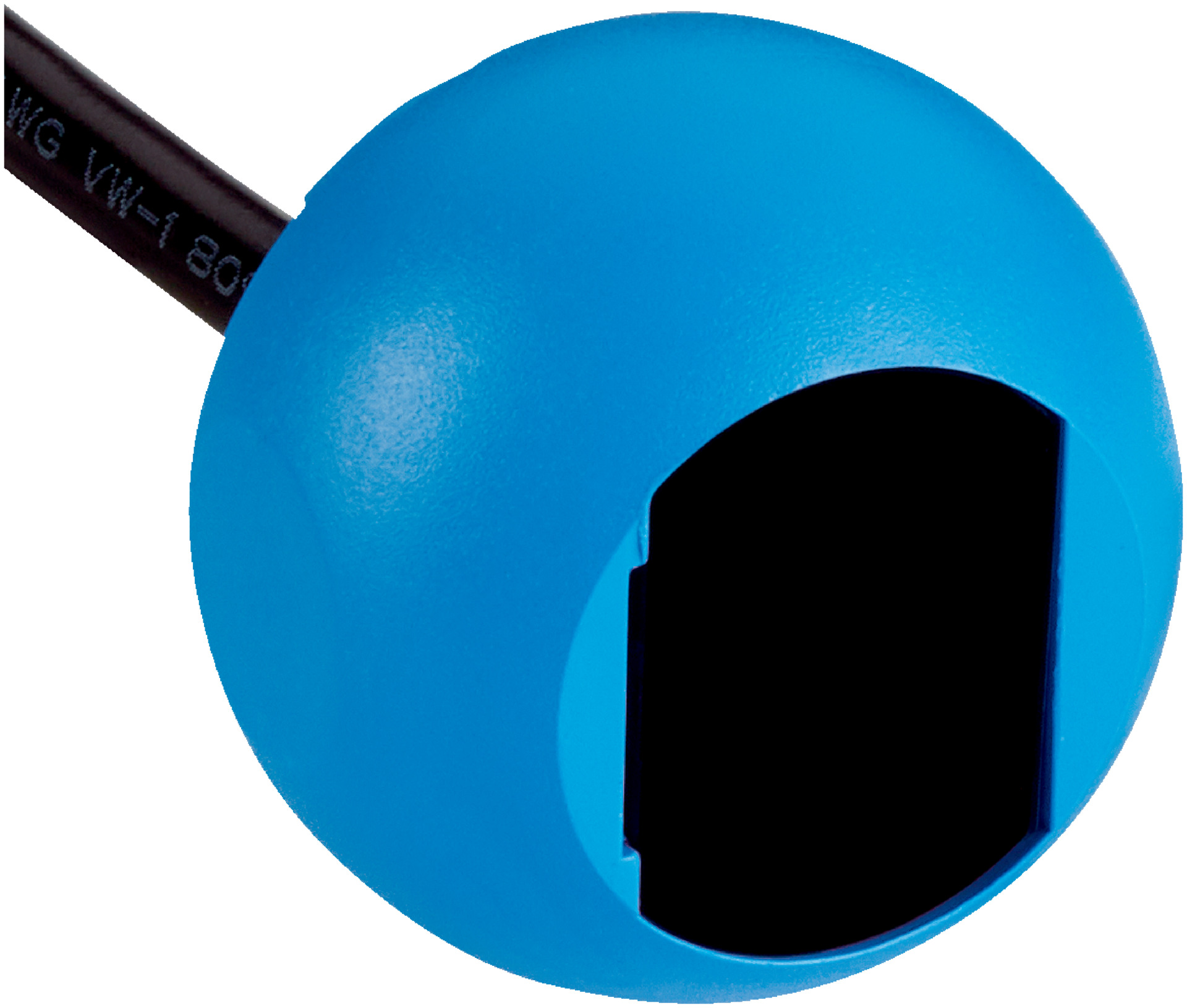

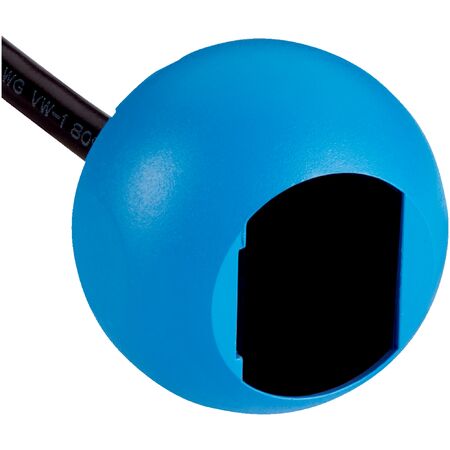

Photoelectric Proximity Sensor | Background Suppression | IP67 Rated | 5mm to 50mm Sensing Range | by SICK
The Photoelectric Proximity Sensor ZTB18-8AB4B1D02 is designed for precise object detection in industrial automation. With a sensing range of 5mm to 50mm and an IP67 enclosure rating, it ensures reliable performance in harsh environments. Ideal for manufacturing process control and packaging machinery, this sensor features a high switching frequency of 500 kHz and a response time of ≤ 1 ms, making it perfect for fast-paced applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Output current max: 100 mA
- Switching output: Push-pull PNP/NPN
- Switching modes: Light switching and dark switching
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection: Cable with M12 male connector, 4-pin, 150 mm
- Cable material: Plastic, PVC
- Conductor cross section: 0.13 mm²
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: –40 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 24mm x 26mm x 23.3mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Hybrid housing design with blue color
- Sensing range from 5 mm to 50 mm
- Infrared light source with PinPoint LED
- Light spot size Ø 8 mm at 100 mm distance
- Operating wavelength of 850 nm
- Push-pull PNP/NPN switching output with light and dark switching modes
- High switching frequency of 500 kHz and response time ≤ 1 ms
- Cable with M12 male connector, 4-pin, 150 mm length
- Enclosure rating IP67 for dust and water protection
- Wide ambient operating temperature range from –40 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging machinery
- Material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient infrared LED technology
- Durable IP67 rated housing reduces waste by extending product life
- Compliant with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZTB18-8AB4B1D02 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
