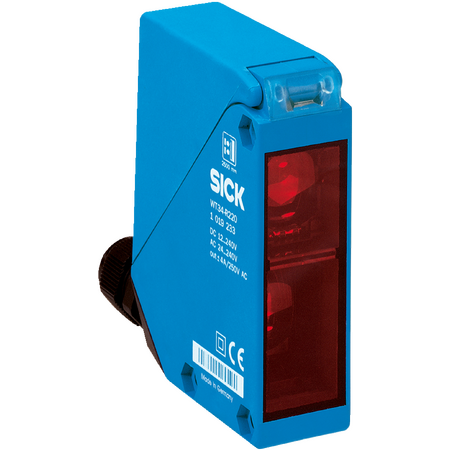

Photoelectric Proximity Sensor WT34-R250 | Background Suppression | IP67 Rated | Adjustable Sensing Range | by SICK
The Photoelectric Proximity Sensor WT34-R250 is designed for industrial automation, featuring background suppression and an adjustable sensing range from 100 mm to 1,200 mm. With a robust IP67 rating, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and safety monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, Photo Prox Sensor WT34-R250, Industrial Proximity Sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 100 mm to 1,200 mm
- Light source: Visible red LED, wavelength 660 nm
- Light spot size at 1,200 mm: Ø 40 mm
- Supply voltage: 20 V AC/DC to 250 V AC/DC
- Power consumption: < 2 VA
- Switching output: Relay, electrically isolated, change-over contacts
- Switching current: 4 A @ 250 V AC, 4 A @ 24 V DC
- Response time: ≤ 10 ms
- Switching frequency: 10 Hz
- Time functions: Adjustable switch-on and off delay (0.5 s to 10 s)
- Connection type: Terminal connection with M16 gland
- Protection class: II
- Enclosure rating: IP67
- Housing material: Plastic, ABS
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Usage category: AC-15, DC-13 according to EN 60947-1
- Dimensions (H x L x W): 92mm x 70mm x 27mm
- Weight: 0.14 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red LED light source
- Adjustable sensing range from 100 mm to 1,200 mm
- Switching output via relay with change-over contacts
- Selectable light/dark switching mode
- Adjustable switch-on and off delay time from 0.5 s to 10 s
- High protection rating IP67 for harsh environments
- Wide operating temperature range from -40 °C to +60 °C
- Terminal connection with M16 gland for secure wiring
- Plastic ABS housing for durability
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure correct wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption under 2 VA reduces energy usage
- Durable IP67 rated housing extends product life and reduces waste
- Complies with China RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WT34-R250 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
