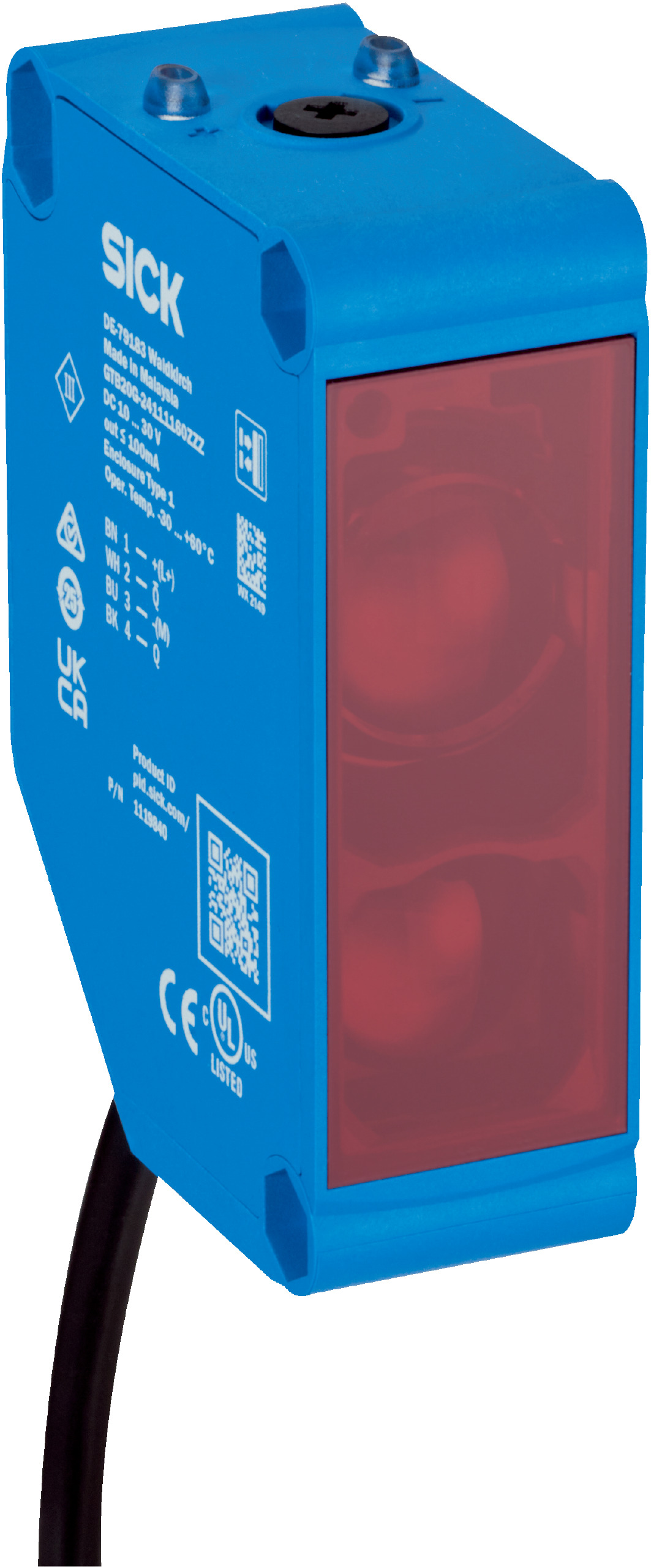

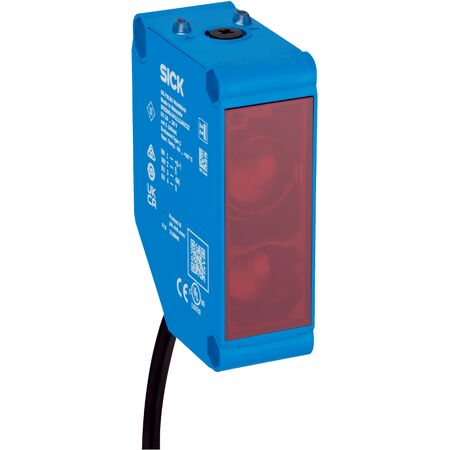

Photoelectric Proximity Sensor | Background Suppression | IP67 Rated | Adjustable Sensing Range | by SICK
The Photoelectric Proximity Sensor GTB20G-1IRC1160ZZZ features background suppression and an adjustable sensing range from 0.005 m to 3 m, making it ideal for industrial automation and object detection. With a robust IP67 rating, it ensures reliable performance in harsh environments, while the visible red LED light source provides clear detection capabilities. Perfect for manufacturing process control and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 0.005 m to 3 m adjustable
- Light source: Visible red LED, wavelength 630 nm
- Light spot size: Ø 28 mm at 500 mm distance
- Operating voltage: 24 V AC/DC to 240 V AC/DC
- Current consumption: ≤ 10 mA (230 V AC/DC), ≤ 45 mA (24 V AC/DC)
- Output: 2 relay SPDT, electrically isolated, max 4 A switching current
- Response time: ≤ 15 ms
- Switching frequency: 10 Hz
- Housing material: Plastic ABS, front screen PMMA
- Cable: 5-wire, 2 m length, PVC
- Protection class: II
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- Dimensions (H x L x W): 74.5mm x 63mm x 23.5mm
- Weight: 0.155 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 0.1 m to 3 m
- Visible red LED light source with rectangular light spot
- High LED service life of 100,000 hours
- IP67 rated housing for dust and water protection
- Relay outputs with light/dark switching modes
- Operating temperature range from -30 °C to +60 °C
- Shock resistance of 30 g and vibration resistance up to 1000 Hz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper wiring and sensor alignment for optimal performance and safety.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and presence detection in machinery
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust IP67 housing extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GTB20G-1IRC1160ZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
