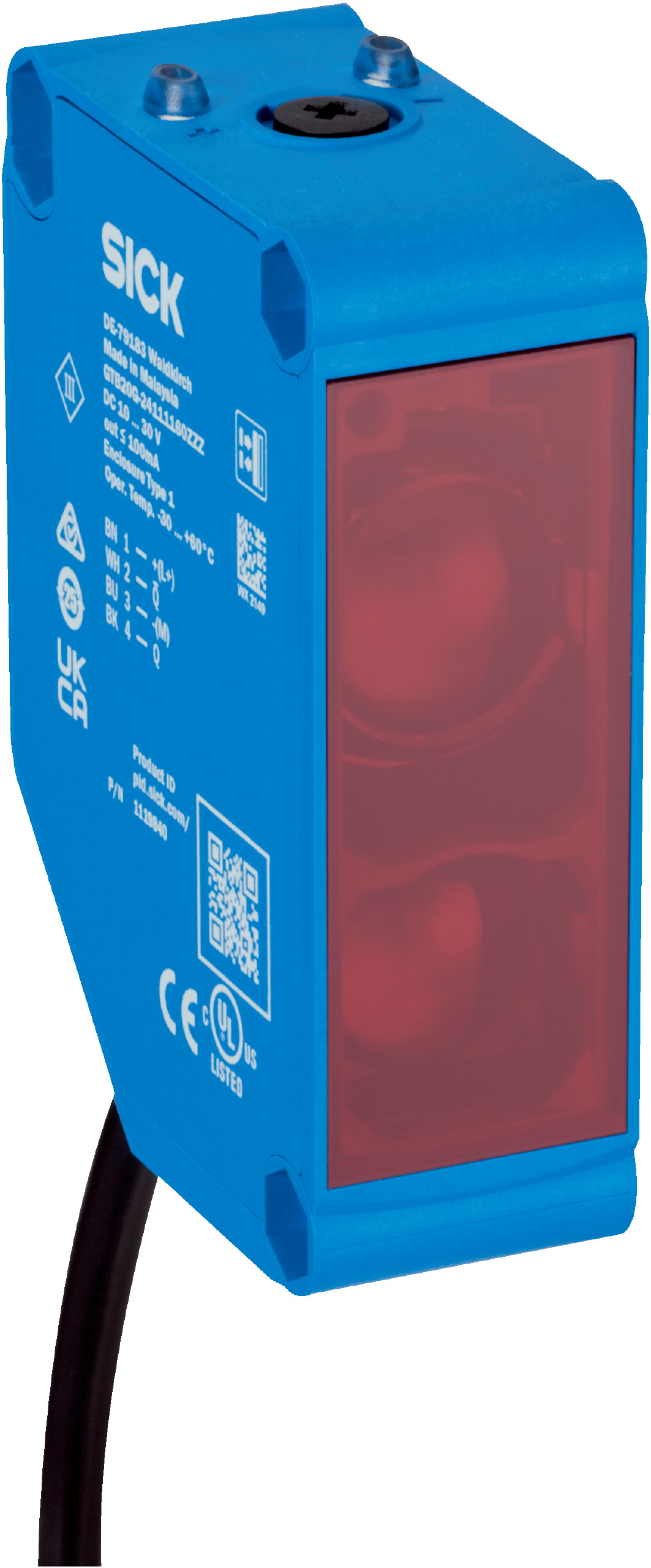

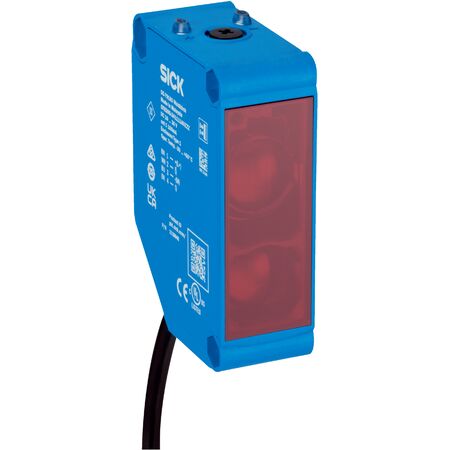

Photoelectric Proximity Sensor | Background Suppression | IP67 Rated | Adjustable Sensing Range | by SICK
The GTB20M-1ISD1160ZZZ photoelectric proximity sensor is designed for industrial automation, featuring background suppression and an adjustable sensing range from 0.005 m to 3 m. With an IP67 rating, it withstands harsh environments, making it ideal for object detection in manufacturing and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 0.005 m to 3 m adjustable
- Light source: Infrared LED, 850 nm wavelength
- Light spot size: Ø 28 mm at 500 mm distance
- LED indicators: Green for power, Yellow for object detection
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Current consumption: ≤ 10 mA at 230 V AC/DC, ≤ 45 mA at 24 V AC/DC
- Output: 2 complementary relay outputs, SPDT, electrically isolated
- Switching mode: Light/dark switching
- Response time: ≤ 15 ms
- Switching frequency: 10 Hz
- Protection class: II
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- EMC compliance: EN 60947-5-2, EN 61000-6-3
- Dimensions (H x L x W): 74.5mm x 63mm x 23.5mm
- Weight: 0.155 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 0.1 m to 3 m
- Infrared LED light source with 850 nm wavelength
- Rectangular light spot with Ø 28 mm at 500 mm distance
- LED indicators for power and object detection status
- Relay outputs with light/dark switching mode
- High protection rating IP67 for harsh environments
- Wide ambient operating temperature range from -30 °C to +60 °C
- Shock resistance up to 30 g and vibration resistance from 10 Hz to 1000 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
- High protection rating minimizes environmental ingress and damage
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GTB20M-1ISD1160ZZZ photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
