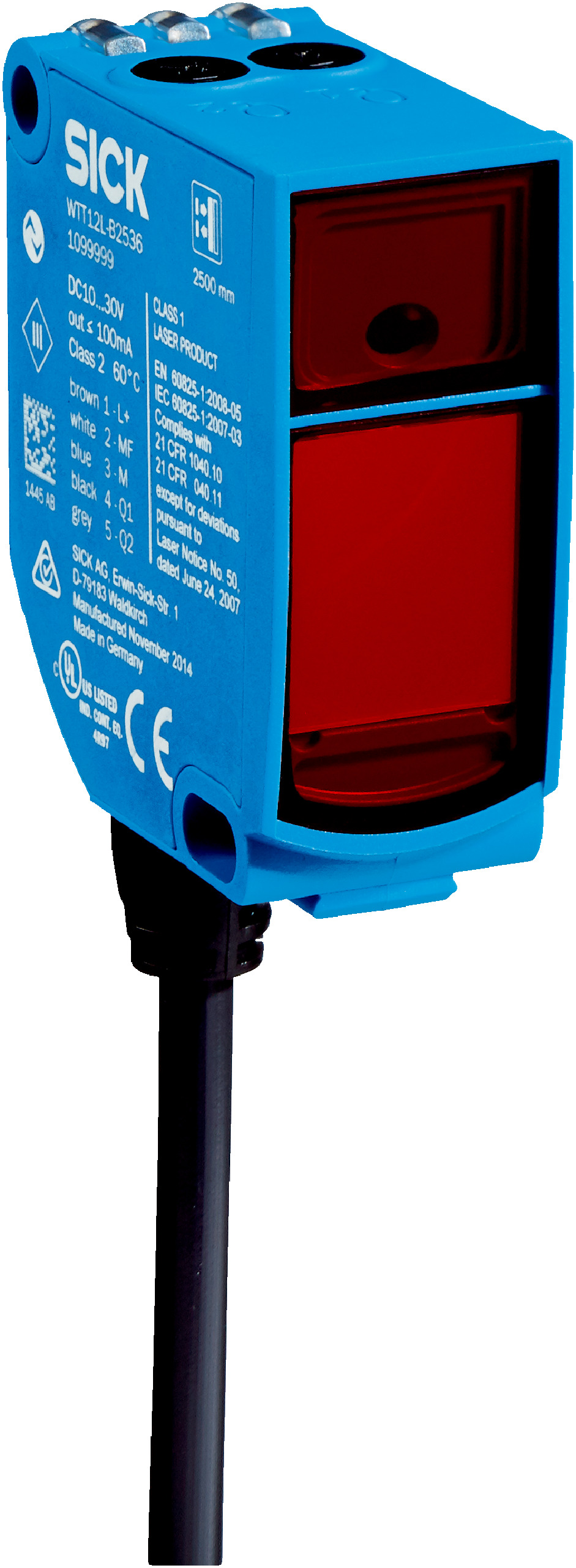

Photoelectric Proximity Sensor WTT12L-B1548 | Background Suppression | IP67 Rated | Dual Switching Outputs | by SICK
The WTT12L-B1548 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and a sensing range of 50 mm to 1800 mm. With a durable IP67-rated housing and dual PNP/NPN outputs, it ensures reliable object detection in harsh environments, making it ideal for material handling, safety monitoring, and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 50 mm to 1800 mm
- Light source: Visible red laser, wavelength 658 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: Push-pull PNP/NPN, 2 outputs
- Output current max: ≤ 100 mA
- Response time: ≤ 16.7 ms
- Switching frequency: 30 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -35°C to +50°C
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Connection: 5-wire cable, 2 m length
- Dimensions (H x L x W): 49.6mm x 44.2mm x 20mm
- Weight: 0.111 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 50 mm up to 1800 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Dual switching outputs (PNP/NPN) with push-pull configuration
- High protection rating of IP67 for harsh environments
- Wide operating temperature range from -35°C to +50°C
- Low current consumption of 70 mA
- Fast response time of ≤16.7 ms and switching frequency of 30 Hz
- Durable plastic VISTAL® housing and PMMA optics
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and monitoring in manufacturing processes
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes replacement frequency and waste
- Complies with RoHS standards limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT12L-B1548 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
