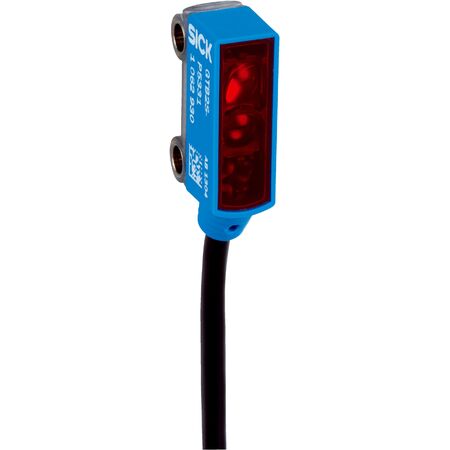

Photoelectric Proximity Sensor GTB2S-P5331 | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor GTB2S-P5331 is designed for precision object detection in industrial automation, featuring background suppression and a fast response time of under 0.6 ms. With an IP67 rated enclosure, it ensures reliable performance in challenging environments, making it ideal for detecting small objects in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 50 mA
- Switching mode: Light switching
- Response time: < 0.6 ms
- Switching frequency: 800 Hz
- Cable: Plastic PVC, diameter 3 mm, length 200 mm with M8 3-pin connector
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25°C to +50°C
- Storage temperature: -40°C to +75°C
- Photobiological safety certified (DIN EN 62471)
- Dimensions (H x L x W): 21.8mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light emission
- PinPoint LED light source with 640 nm wavelength
- Sensing range from 5 mm to 30 mm, max 36 mm
- High switching frequency of 800 Hz and fast response time under 0.6 ms
- IP67 rated enclosure for dust and water protection
- Cable with M8 3-pin connector, 200 mm length
- Operating temperature range from -25°C to +50°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper sensor alignment and electrical connection.
Applications
- Detecting small objects in industrial automation
- Precision object detection in manufacturing processes
- Use in environments requiring reliable background suppression sensing
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GTB2S-P5331 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precision object detection applications.
