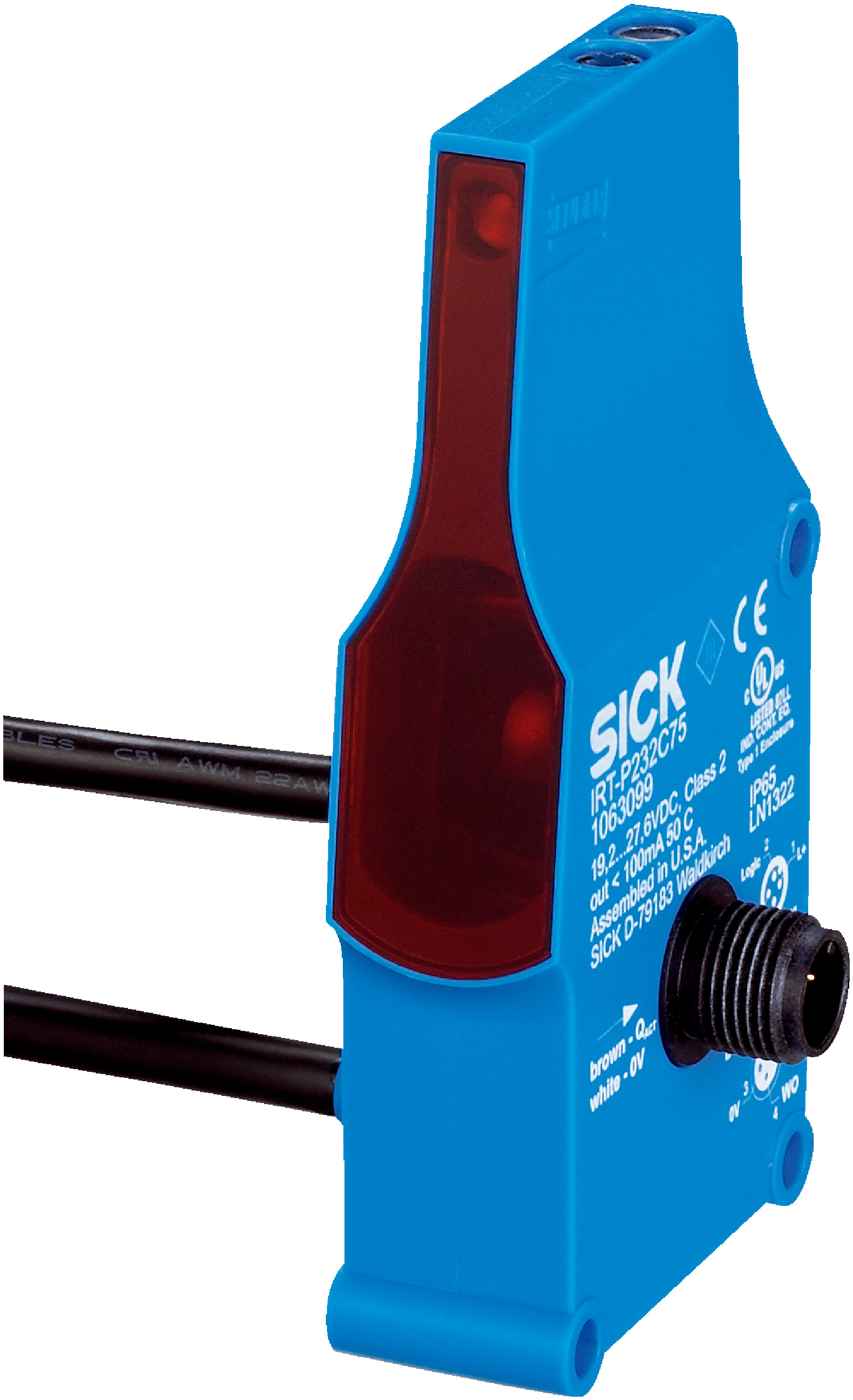

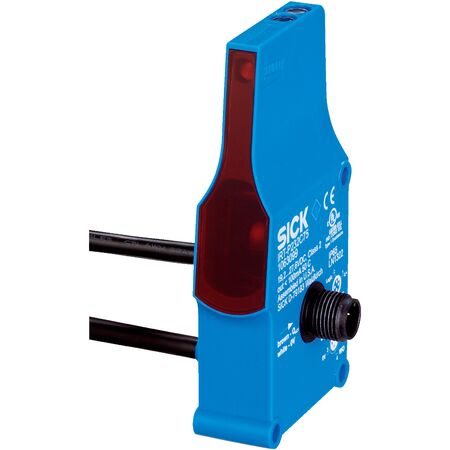

Photoelectric Proximity Sensor IRT-P232C75 | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The IRT-P232C75 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 60 mm to 900 mm and a fast response time of just 2 ms. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for precise object detection in manufacturing processes and material handling systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Actuator type: Electrical
- Max. number of sensors in chain: Approx. 30 to 50
- Logical operation: Single accumulation with sleep
- Type of release: Single release
- Sensing range: 60 mm to 900 mm
- Focus angle: 7°
- Light source: Infrared LED
- Light spot size at 500 mm: Ø 20 mm
- Adjustment: Potentiometer with 9 turns
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: 20 mA
- Switching output: PNP
- Signal voltage PNP HIGH/LOW: Approx. Vs – 0.5 V / 0 V
- Max output current: ≤ 100 mA
- Response time: 2 ms
- Switching frequency: 250 Hz
- Connection type: Male M12, 4-pin connector
- Daisy chain connection: Cable with female M12, 4-pin connector, 2 m
- Circuit protection: Types A, C, D
- Protection class: III
- Housing material: Plastic, ABS
- Enclosure rating: IP67
- Shock and vibration resistance: According to IEC 68
- Operating temperature: –40 °C to +60 °C
- Storage temperature: –40 °C to +75 °C
- UL File No.: NRKH.E189383 & NRKH7.E189383
- Dimensions (H x L x W): 99mm x 49mm x 21mm
- Weight: 0.175 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 60 mm to 900 mm
- Infrared LED light source with 7° angle of dispersion
- Potentiometer adjustment with 9 turns for sensitivity tuning
- High switching frequency of 250 Hz and fast response time of 2 ms
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant according to IEC 68 standards
- PNP switching output with max output current ≤ 100 mA
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor wiring and configuration to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Presence detection in manufacturing processes
- ZoneControl applications requiring precise sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw reduces energy usage
- Durable IP67 housing extends product life, reducing waste
- RoHS compliant, minimizing hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IRT-P232C75 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
