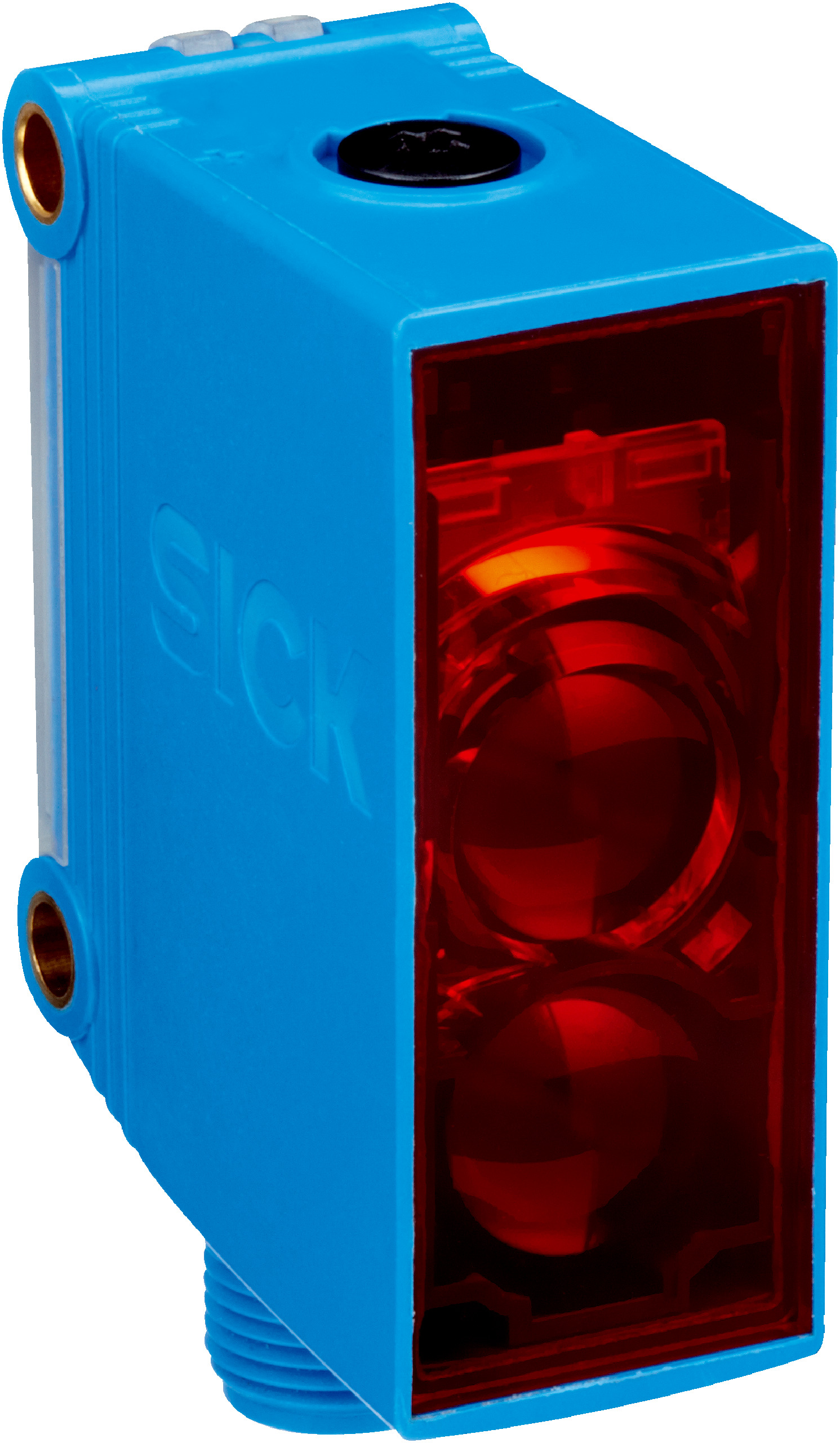

Photoelectric Proximity Sensor | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor GTB10-P4411S01 is designed for industrial automation, featuring background suppression and a sensing range of 20 mm to 950 mm. With a fast response time of ≤ 1 ms and an IP67 enclosure rating, it ensures reliable performance in challenging environments, making it ideal for packaging machinery and quality control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max.: 20 mm to 950 mm
- Type of light: Visible red light, wavelength 625 nm
- Light spot size: Ø 8 mm at 700 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, light switching mode
- Output current max.: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Housing material: Plastic ABS/PMMA
- Enclosure rating: IP67
- Operating temperature: –30 °C to +60 °C
- Storage temperature: –40 °C to +70 °C
- Electromagnetic compatibility: EN 60947-5-2
- Protection class: III
- Circuit protection: Types A, B, C, D
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED light source
- High functional reliability on foil-wrapped objects
- Potentiometer adjustment with 5 turns
- Rectangular plastic housing with IP67 enclosure rating
- Fast response time of ≤ 1 ms and switching frequency of 500 Hz
- Male connector M12, 4-pin connection type
- Protection class III and circuit protection types A, B, C, D
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Packaging machinery for foil-wrapped objects
- Material handling and conveyor systems
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 rated housing ensures long service life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GTB10-P4411S01 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
