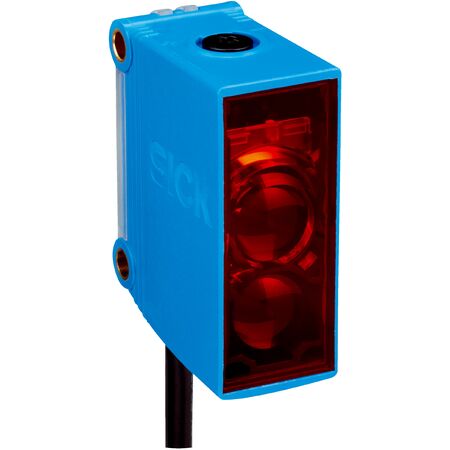

Photoelectric Proximity Sensor GTB10-N1411S02 | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor GTB10-N1411S02 is designed for industrial automation, featuring background suppression and a sensing range of 20 mm to 950 mm. With a fast response time of ≤ 1 ms and an IP67 rated enclosure, it ensures reliable object detection in challenging environments, making it ideal for packaging machinery and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max.: 20 mm to 950 mm
- Type of light: Visible red light (625 nm wavelength)
- Light source: PinPoint LED
- Light spot size: Ø 8 mm at 700 mm distance
- Adjustment: Potentiometer, 5 turns
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: 20 mA
- Switching output: NPN, light switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Connection type: 3-wire cable, 2 m length, PVC material
- Circuit protection: Types A, B, C, D
- Protection class: III
- Housing material: Plastic ABS/PMMA
- Enclosure rating: IP67
- EMC standard: EN 60947-5-2
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- UL File No.: NRKH.E348498 & NRKH7.E348498
- Additional standards: UL325
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED light source
- High functional reliability on foil-wrapped objects
- Adjustable potentiometer with 5 turns for sensitivity tuning
- Compact rectangular housing design
- IP67 rated enclosure for dust and water protection
- Fast response time of ≤ 1 ms and switching frequency of 500 Hz
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Packaging machinery for foil-wrapped object sensing
- Material handling systems requiring precise proximity detection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GTB10-N1411S02 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and packaging applications requiring reliable object detection.
