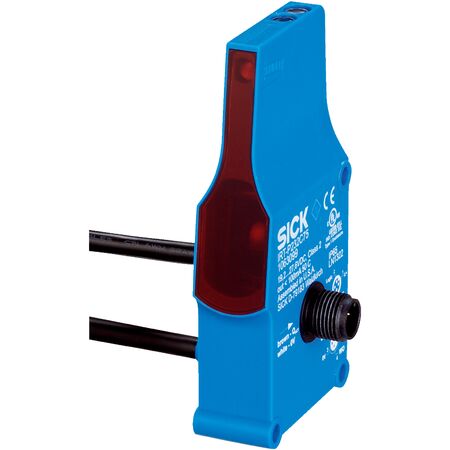

Photoelectric Proximity Sensor IRT-P232C83S19 | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The IRT-P232C83S19 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and an infrared LED light source with a 7° angle of dispersion. With a sensing range of 60 mm to 900 mm and a fast response time of 2 ms, it's perfect for object detection in material handling and conveyor systems. Built to withstand harsh environments, this sensor is IP67 rated for dust and water protection, ensuring reliable performance in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Actuator type: Electrical
- Max number of sensors: Approx. 30 to 50 depending on conditions
- Logical operation: Single accumulation with sleep
- Type of release: Single release
- Sensing range: 60 mm to 900 mm
- Focus angle: 7°
- Light source: Infrared LED
- Light spot size at 500 mm: Ø 20 mm
- Adjustment: Potentiometer with 9 turns
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: 20 mA
- Switching output: PNP
- Signal voltage PNP HIGH/LOW: Approx. Vs – 0.5 V / 0 V
- Max output current: ≤ 100 mA
- Response time: 2 ms
- Switching frequency: 250 Hz
- Connection type: Male M12, 4-pin connector
- Daisy chain connection: Cable with female M12, 4-pin connector, 2 m
- Circuit protection: Types A, C, D
- Protection class: III
- Housing material: Plastic, ABS
- Enclosure rating: IP67
- Shock and vibration resistance: IEC 68 compliant
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- UL File No.: NRKH.E189383 & NRKH7.E189383
- Dimensions (H x L x W): 99mm x 49mm x 21mm
- Weight: 0.175 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Infrared LED light source with 7° angle of dispersion
- Sensing range from 60 mm to 900 mm
- Potentiometer adjustment with 9 turns for sensitivity tuning
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant according to IEC 68
- PNP switching output with max output current ≤ 100 mA
- Fast response time of 2 ms and switching frequency of 250 Hz
- Special wiring and ZoneControl capability
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and control in manufacturing processes
- ZoneControl applications requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable ABS plastic housing reduces material waste
- Long service life reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IRT-P232C83S19 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
