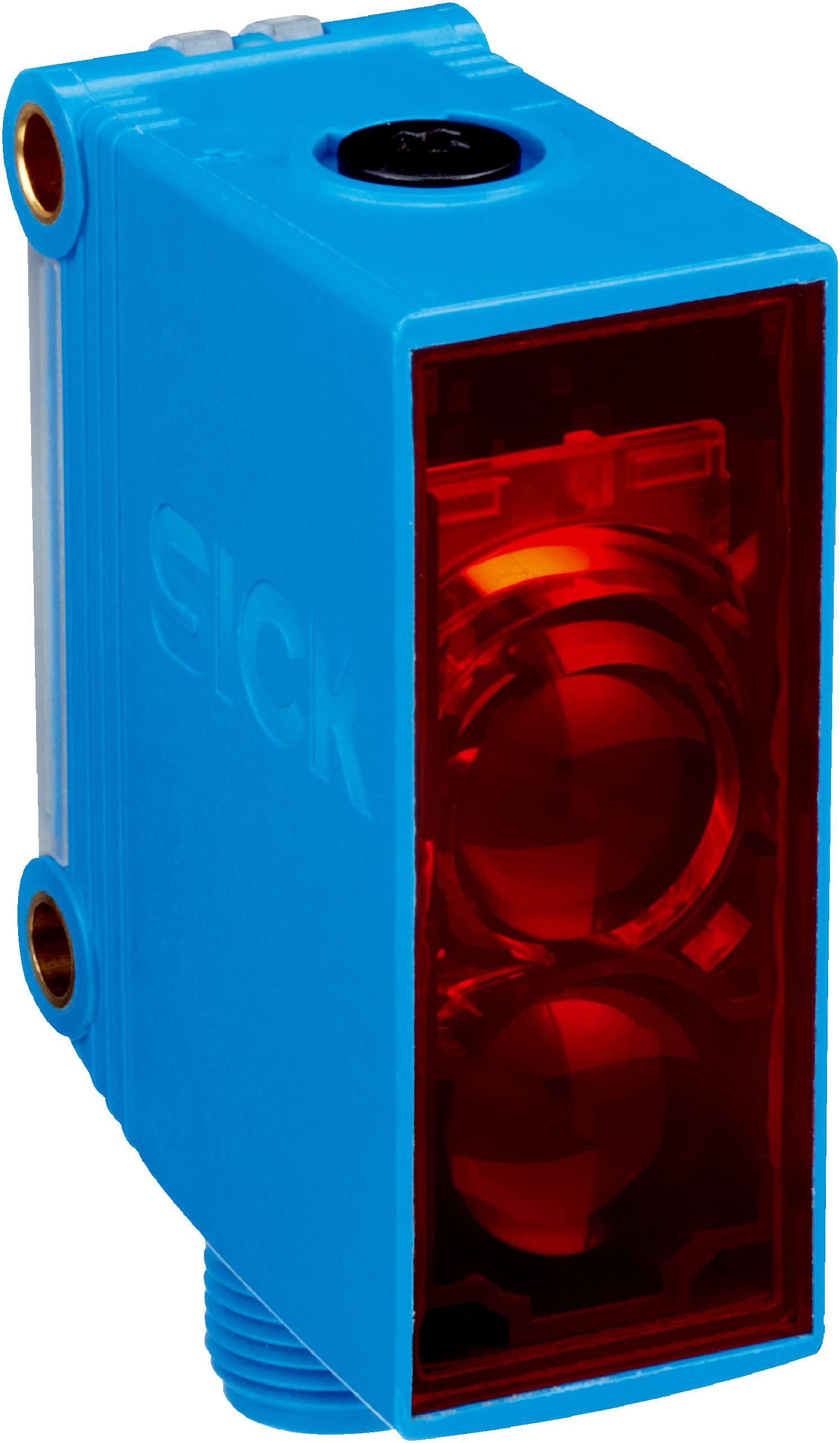

Photoelectric Proximity Sensor GTB10-P4611S03 | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor GTB10-P4611S03 is designed for industrial automation, featuring background suppression and a sensing range of 20 mm to 950 mm. With a fast response time of ≤ 1 ms and an IP67 enclosure rating, this sensor is perfect for packaging machinery and material handling systems, ensuring reliable object detection even on foil-wrapped items.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max.: 20 mm to 950 mm
- Type of light: Visible red light, wavelength 625 nm
- Light source: PinPoint LED
- Light spot size: Ø 8 mm at 700 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: 20 mA
- Switching output: PNP, dark switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, B, C, D
- Protection class: III
- Housing material: Plastic ABS/PMMA
- Enclosure rating: IP67
- EMC standard: EN 60947-5-2
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- UL File No.: NRKH.E348498 & NRKH7.E348498
- Photobiological safety certified (DIN EN 62471)
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED light source
- High functional reliability on foil-wrapped objects
- Potentiometer adjustment with 5 turns
- Rectangular plastic housing with IP67 enclosure rating
- Fast response time of ≤ 1 ms and switching frequency of 500 Hz
- Dark switching mode with PNP output
- Male connector M12, 4-pin connection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Packaging machinery for foil-wrapped objects
- Material handling systems requiring precise proximity sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 rated housing reduces waste through long service life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GTB10-P4611S03 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and packaging applications requiring reliable object detection.
