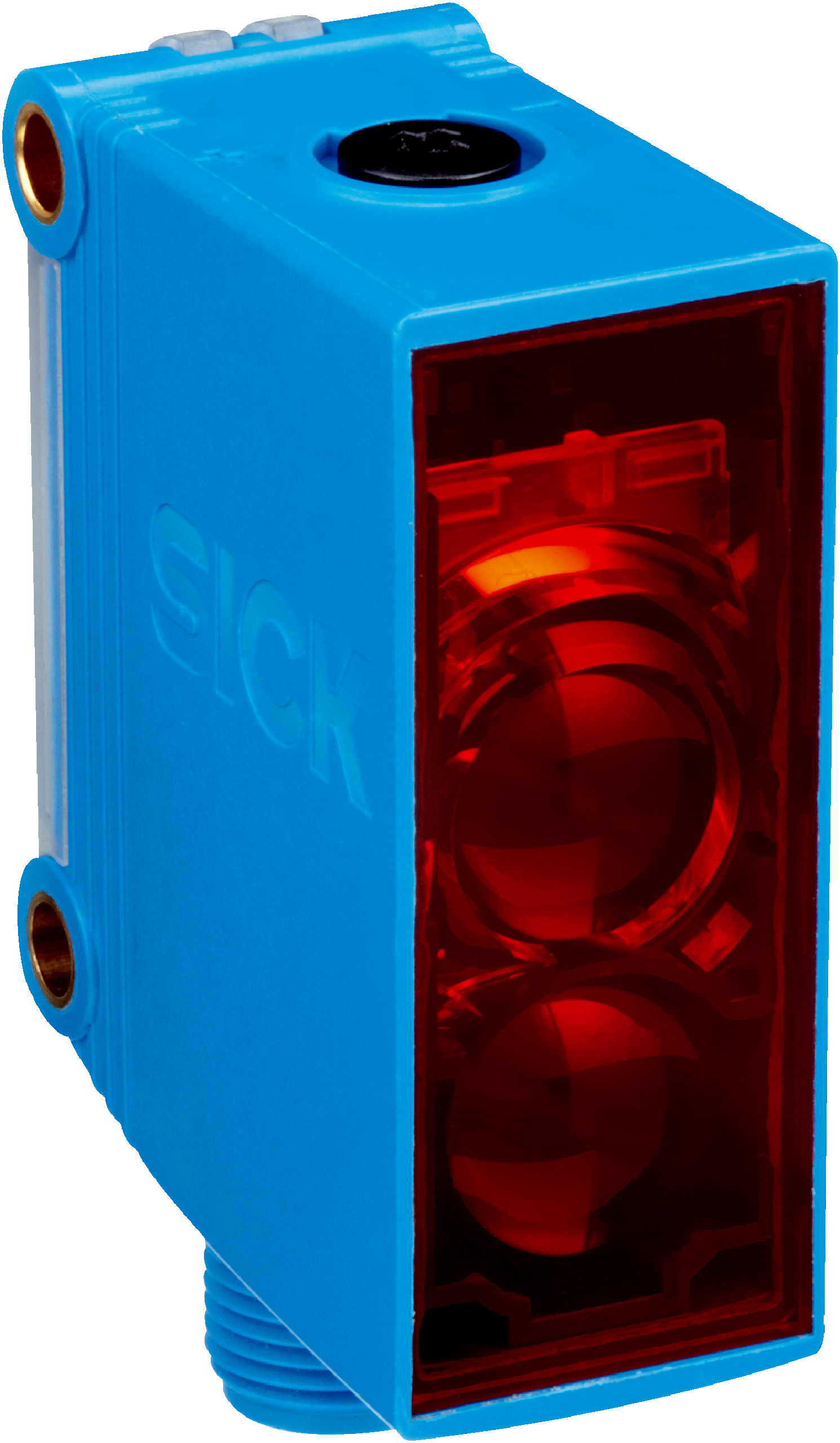

Photoelectric Proximity Sensor GTB10-P4401S05 | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor GTB10-P4401S05 is designed for industrial automation, featuring background suppression and a sensing range from 20 mm to 950 mm. With a fast response time of ≤ 1 ms and an IP67 rated enclosure, it ensures reliable performance in challenging environments, making it ideal for packaging machinery and quality control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max.: 20 mm to 950 mm
- Type of light: Visible red light
- Light source: PinPoint LED
- Light spot size at 300 mm: Ø 4.5 mm
- Wavelength: 625 nm
- Adjustment: Potentiometer, 5 turns
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: 20 mA
- Switching output: PNP
- Switching mode: Light switching
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: A, B, C, D
- Protection class: III
- Housing material: Plastic, ABS/PMMA
- Enclosure rating: IP67
- EMC: EN 60947-5-2
- Operating temperature: –30 °C to +60 °C
- Storage temperature: –40 °C to +70 °C
- UL File No.: NRKH.E348498 & NRKH7.E348498
- Standards: UL325
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED light source
- Sensing range from 20 mm to 950 mm
- High functional reliability on foil-wrapped objects
- Preset sensing range of 400 mm for white (90% remission)
- Potentiometer adjustment with 5 turns
- IP67 rated enclosure for dust and water protection
- Fast response time of ≤ 1 ms and switching frequency of 500 Hz
- Male connector M12, 4-pin connection
- Circuit protection and EMC compliance
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Packaging machinery for foil-wrapped products
- Material handling systems requiring precise sensing
- Quality control systems in manufacturing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GTB10-P4401S05 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and packaging applications requiring precise object detection.
