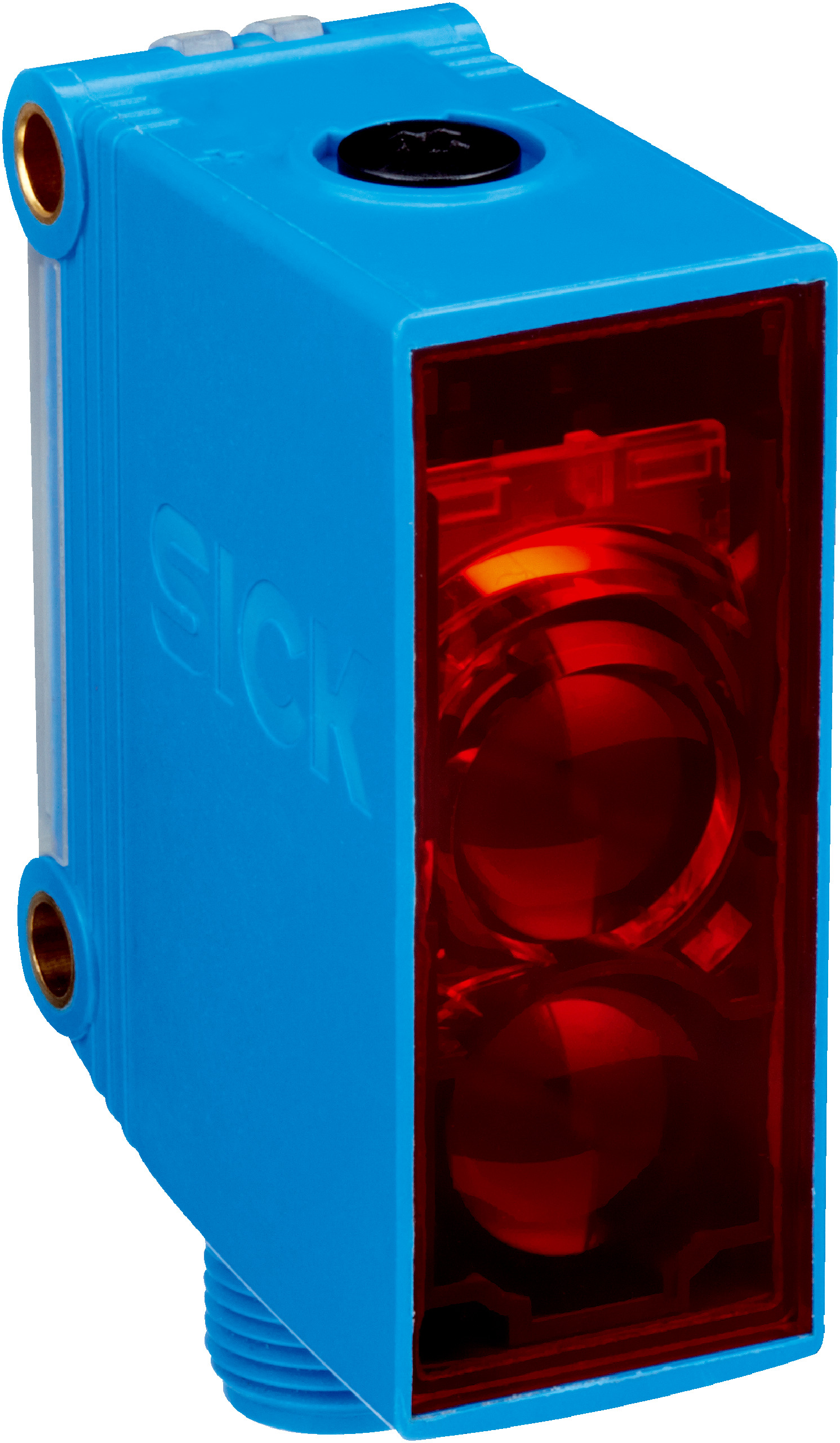

Photoelectric Proximity Sensor | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor GTB10-P4401P04 features background suppression and a sensing range of 20 mm to 950 mm, making it ideal for industrial automation and object detection. With a fast response time of ≤ 1 ms and a durable IP67-rated housing, this sensor ensures reliable performance in challenging environments, perfect for packaging machinery and quality control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max.: 20 mm to 950 mm
- Type of light: Visible red light, wavelength 625 nm
- Light source: PinPoint LED
- Light spot size: Ø 4.5 mm at 300 mm distance
- Adjustment: Potentiometer, 5 turns
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: 20 mA
- Switching output: PNP, light switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, B, C, D
- Protection class: III
- Housing material: Plastic, ABS/PMMA
- Enclosure rating: IP67
- Electromagnetic compatibility: EN 60947-5-2
- Operating temperature: –30 °C to +60 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED light source
- High functional reliability on foil-wrapped objects
- Sensing range preset to 400 mm for grey (90% remission)
- Potentiometer adjustment with 5 turns
- Rectangular plastic housing with IP67 enclosure rating
- Fast response time ≤ 1 ms and switching frequency of 500 Hz
- Male connector M12, 4-pin connection type
- Circuit protection and protection class III
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Packaging machinery for foil-wrapped objects
- Material handling systems requiring precise sensing
- Quality control systems in manufacturing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GTB10-P4401P04 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
