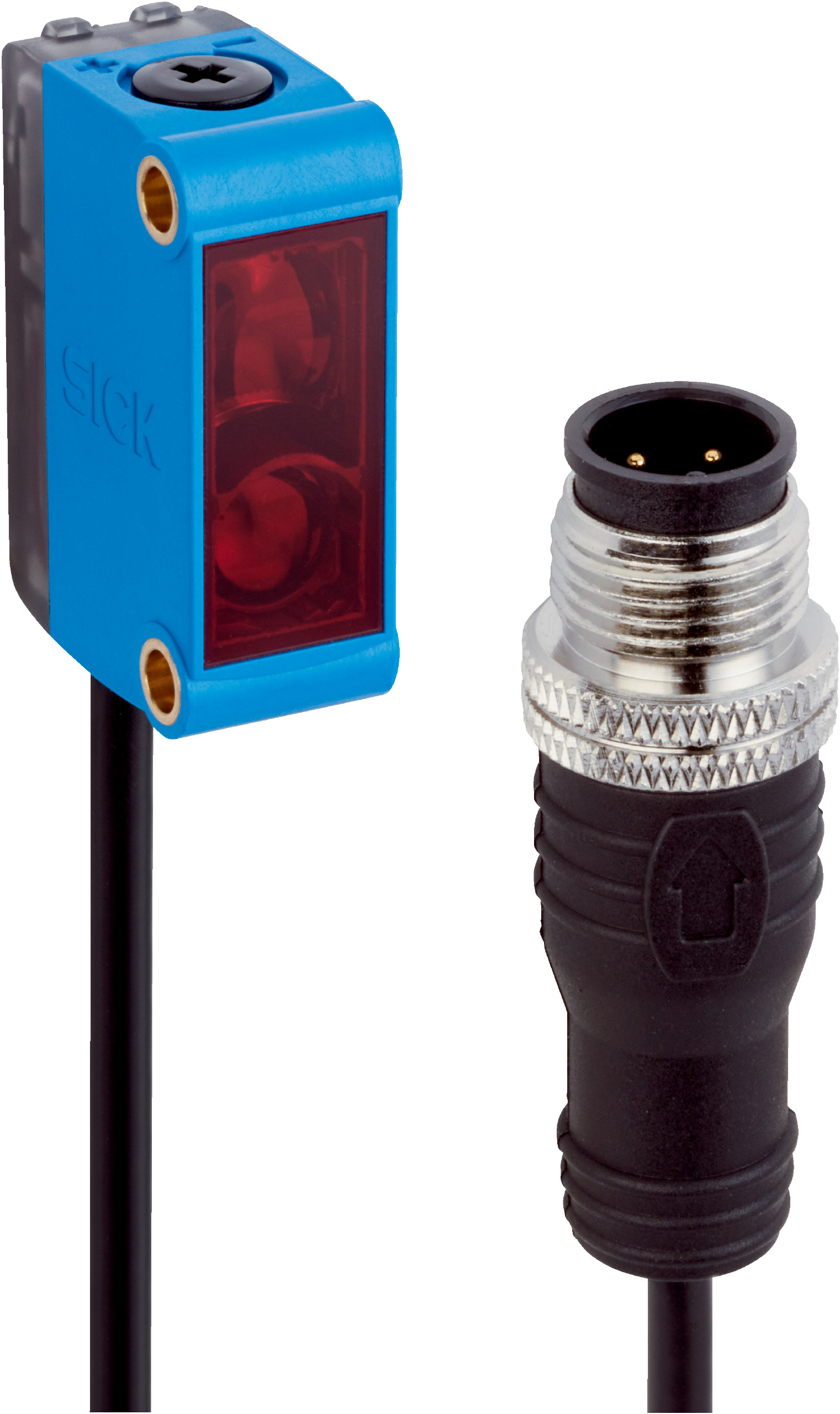

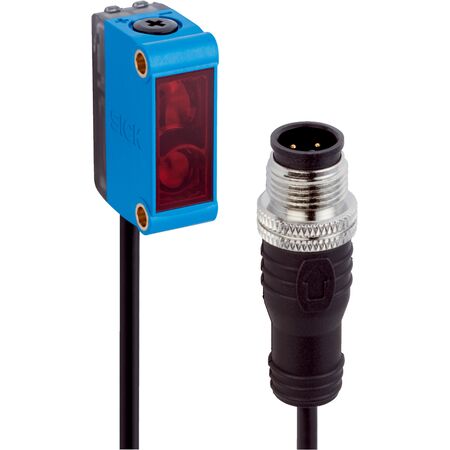

Photoelectric Proximity Sensor | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor GTB6-P0231S68 is designed for industrial automation, featuring background suppression and a sensing range from 5 mm to 400 mm. With a fast response time of under 1.25 ms and an IP67 rated enclosure, it ensures reliable object detection in challenging environments, making it ideal for manufacturing and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor | Background Suppression | IP67 Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1087744
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, SICK GTB6 sensor, Industrial photo sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 32 mA
- Protection class: III
- Output type: PNP digital output
- Switching mode: Light/dark selectable
- Output current max: 100 mA
- Response time: < 1.25 ms
- Switching frequency: 500 Hz
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Connection: Cable with M12 male connector, 4-pin, 300 mm
- Housing material: Plastic ABS/PC
- Front screen material: Plastic PMMA
- Cable material: Plastic PUR
- Light source: PinPoint LED, visible red light, 625 nm wavelength
- Light spot size: Ø 6 mm at 100 mm distance
- Adjustment: Mechanical spindle, 5 turns
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 5 mm to 400 mm
- Visible red light PinPoint LED with 625 nm wavelength
- Mechanical spindle adjustment with 5 turns
- IP67 rated enclosure for dust and water protection
- Fast response time under 1.25 ms and switching frequency of 500 Hz
- Selectable light/dark switching mode with PNP output
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Positioning and presence detection in manufacturing
- Packaging and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GTB6-P0231S68 photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
