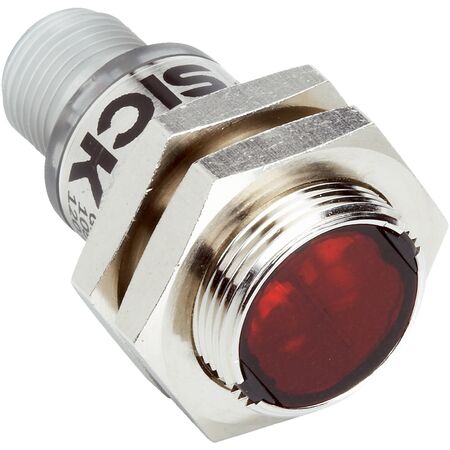

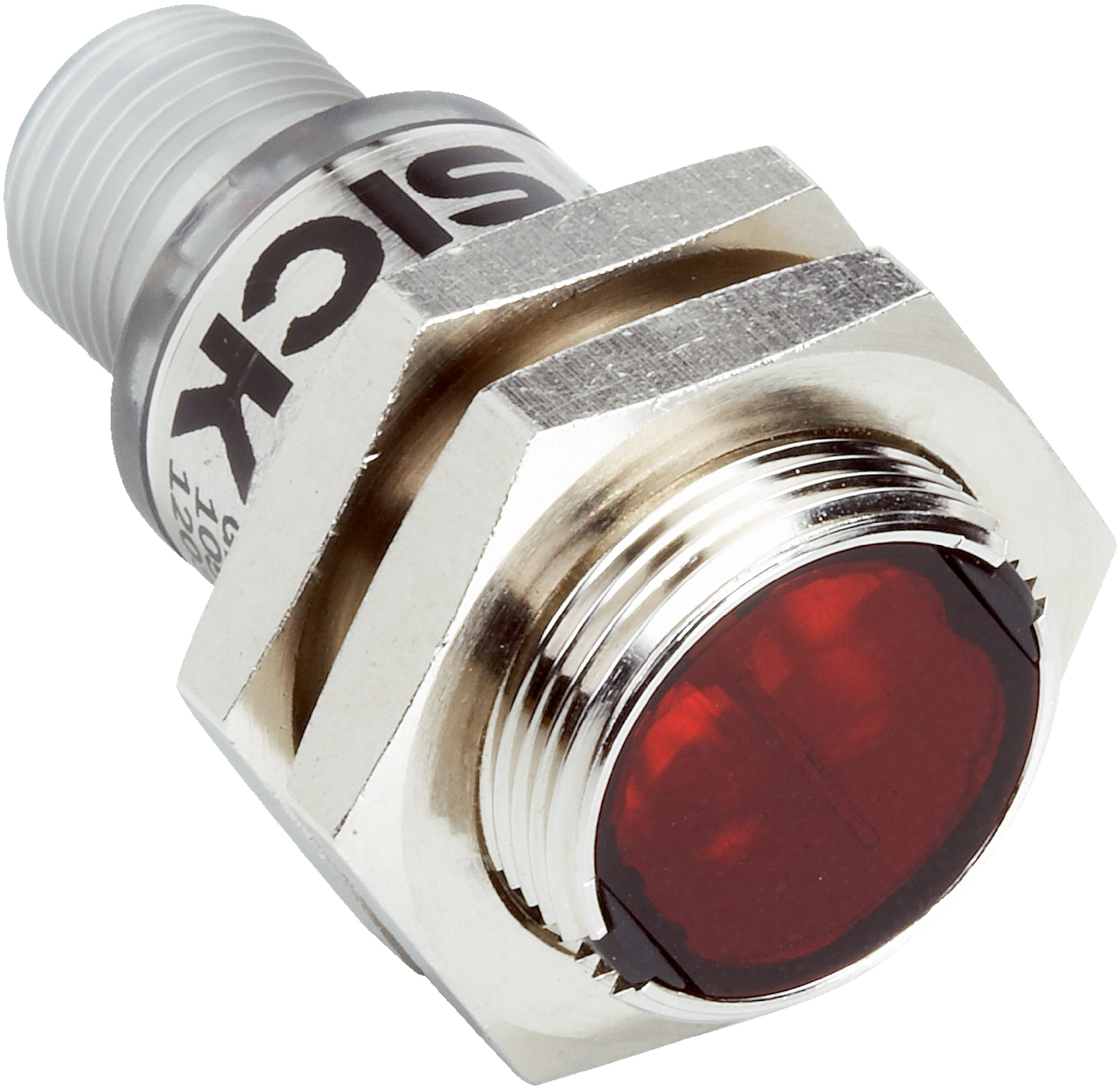

Photoelectric Proximity Sensor | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor GRTB18S-P2402S11 is designed for precise object detection in industrial automation. With a sensing range of 20 mm to 150 mm and a robust IP67 rated enclosure, it ensures reliable performance in challenging environments. Ideal for manufacturing process control and safety detection, this sensor features a fast switching frequency of 1,000 Hz and a response time under 500 µs, making it perfect for high-speed applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor | Background Suppression | IP67 Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1094930
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, Infrared proximity sensor, M18 photoelectric sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Housing material: Metal, nickel-plated brass and ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Circuit protection: Types A, B, D
- Connection type: Male M12, 4-pin connector
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 18mm x 38mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Cylindrical housing design with M18 x 1 thread diameter
- Sensing range from 20 mm to 150 mm, max 300 mm
- Infrared LED light source with 850 nm wavelength
- Potentiometer adjustment with 270° rotation
- LED indicators for power and object detection status
- Robust metal nickel-plated brass and ABS housing
- IP67 rated enclosure for dust and water protection
- Fast switching frequency of 1,000 Hz and response time under 500 µs
- Male M12 4-pin connector for easy installation
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Safety and presence detection in machinery
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable construction minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GRTB18S-P2402S11 Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
